Automatic embossing lamination towel paper gluing rewinding paper kitchen roll making machine

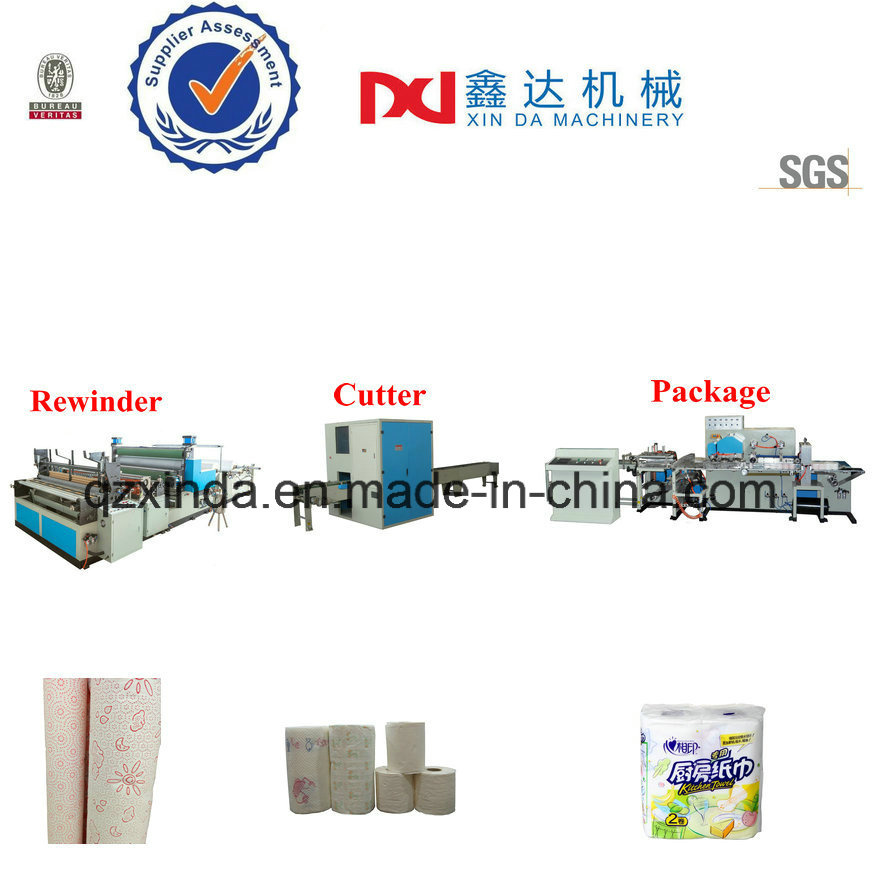

It is a full-automatic production line, which composed of one set of CIL-SP-A Full-automatic high-speed rewinding and perforated toilet paper and towel paper machine (it can be two sets according to requirement), one set of CIL-SP-280 roll paper cutting machine, one set of CIL-SO-398 multi-rolls packaging machine and convey belt.
A, For paper width up to 2750mm to make bathroom tissue, kitchen towels. Equipped with variable perforation length system to satisfy any length need. The speed of this
Rewinder is up to 325m/min, 6 cycles per minute, including:
Two steel roller to rubber roller or steel roller to wool roller embossing units.
Two backstands, with a double belt driving system, for jumbo rolls up to 1500mm diameter, and with a pneumatic loading of jumbo roll system.
B. This CIL-SP-A-A Economical line will automatically change core and eject the paper roll, and trim automatically, spray glue on paper roll.
C. Automatic glue to laminate two ply together.
D. All the driven system to be by means of synchronous belts, nylon belts and gears, for years of free maintenance. Electrical eyes will be mounted on the different parts of the line to monitor the machine and stop it in case it runs out of paper, cores or any other unforeseen problems. The lubrication systems will be provided on the major parts of the line.
E. The main motor power is 7.5kW. Variable frequency control depending on the final specifications and requirements.
F, This line is to be controlled by a PLC of your choice.
| CIL-SP-A-B |
| Width of raw material | 1500mm--2700mm |
| Outside diameter of raw material | Max.Φ1500mm |
| Inner diameter of core of raw material | Φ3"(76mm) or requested
by customer |
| Machine speed | 0-325m/min(depending on
model) |
| Operation speed | 0-300m/min, |
| Outside diameter of finished product | Toilet paper roll:Φ80-150mm |
| Outside diameter of finished product | Towel paper |
| Distance for perforation | Variable, any size needed |
| Sheet count | Increments of one sheet |
| Inner diameter of core of finished product | Φ25-80mm |
| Quality of raw material | 1or 2 ply,15-45g |
| Installed power | 7.5Kw~15Kw |
Quanzhou Xinda Machinery Co. Ltd is located in the Quanzhou City which is a famous Historical and Cultural City, Fujian Province, China. Our company was founded in 1997. Beginning in the 1980s, we engaged in machinery manufacturing, main production toilet paper machine, napkin paper machine, facial tissue machine, baby diaper production line, coffee filter paper bag machine and paper cup coaster machine and disposable household paper manufacturing machinery. And we can also design and manufacture machine according to the customer' S requirements. Including non-standard machine. Our main market is the Middle East, Africa, Eastern Europe. Now we are trying to open up Emerging markets, mainly Brazil, Russia and South Africa. We have over 12, 000 kilometers of its own plant and have over 25 years experience in research and development technical team. We offer the favorable price, the well-pleasing service and quality to both domestic and overseas customers. Our company have International Quality System C E certificate as well as production capacity and trading capacity have already certified by BV international inspection group certifier. We have agencies in Dubai and Cairo( Egypt ) and Tehran( Iran). Provide consultation and satisfactory installation and maintenance services.
Quanzhou Xinda Machinery Co., Ltd. Wishes to create a bright future with every friend from all over the world.
