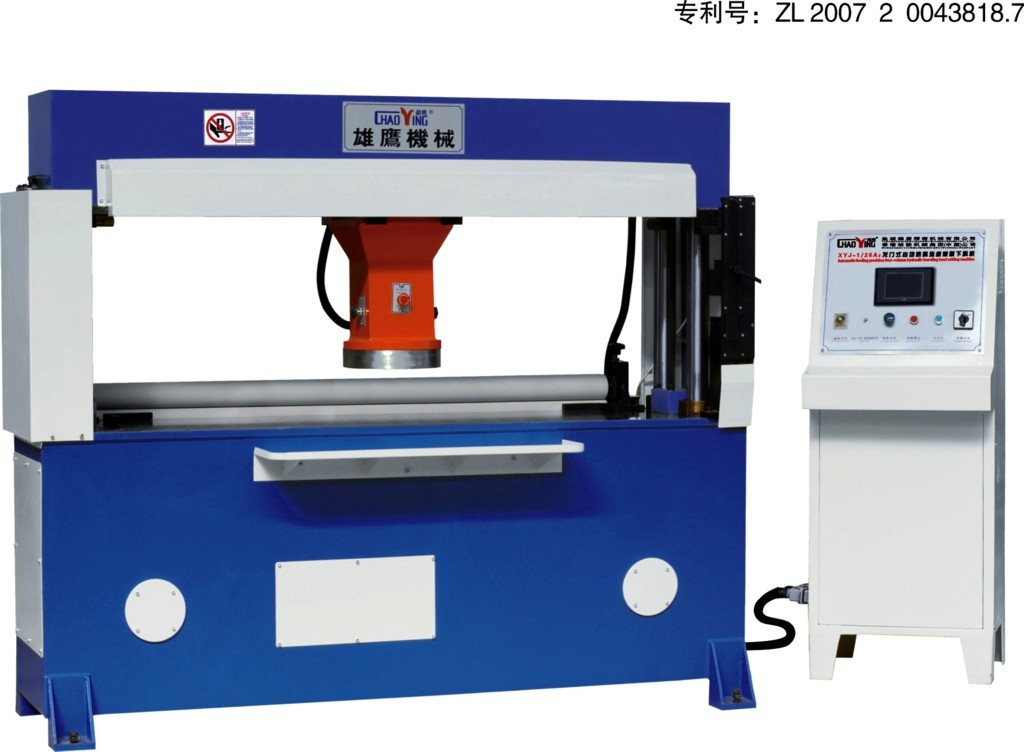

Automatic Feeding Precision Four-Column Hydraulic Traveling Head Cutting Machine (XYJ-1/25)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
Use and character
The machine is suitable for continuously cutting large batch of regular (or of the same specification) nonmetal rolled materials by forming cutter. It is especially suitable for such industries as sports articles (balls), sand paper, medicine and etc. It is desighed by ourself. We own its patent right, its no is ZL200720043818.7
1. The mechanism of double oil cylinder, gantry type guiding and precise four-column automatic balancing connection rod can guarantee the same cutting depth of each cutting position.
2. The precise lead screw driving unit is adopted for accurate movement and positioning and stable operation.

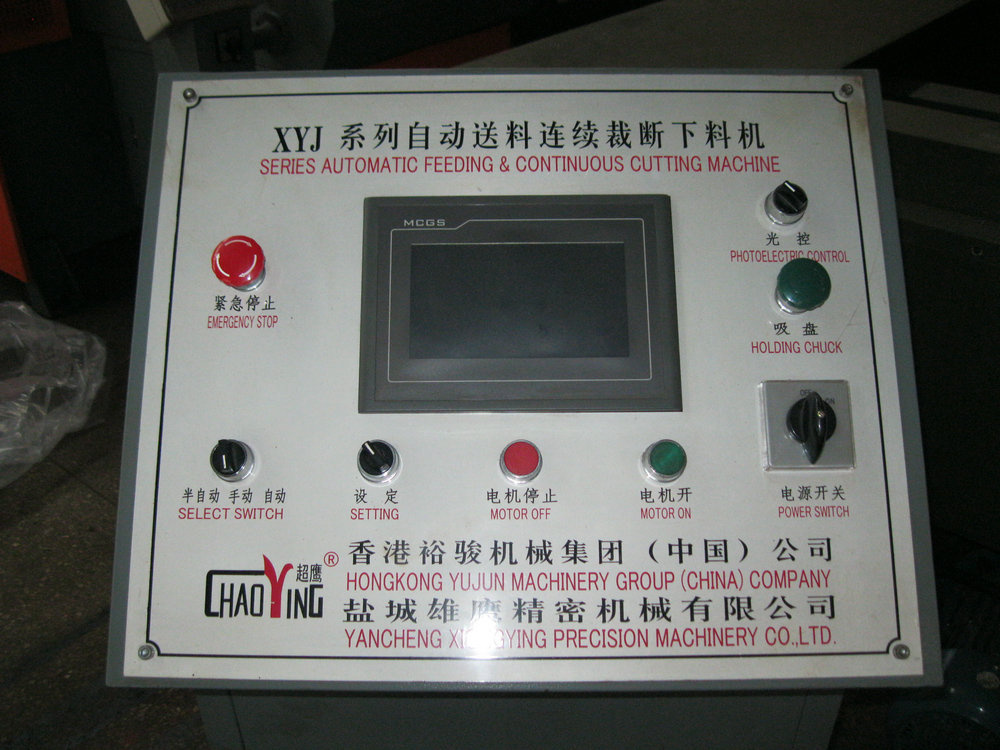

3. The rubber roller pneumatic material pressing or manual material pressing is adopted. The computer can automatically control the transverse movement distance of cutting head and the feeding distance of pressing roller.
4. The machine has special cutting modes such as automatic stagger and stagger blade reducing, which can reduce consumption and save raw materials.
5. The machine has two working ways such as semi-automatic and full-automatic operations. The workers need only to pick up the finished materials, with labor intensity reduced and work efficiency enhanced.
Technical specification
| Maximum momentum | 250kN |
| Seissor speed | 0.12m/s |
| Stroke adjustment | 0— 120mm |
| Range between the working tables | 30— 150mm |
| Transverse movement speed of punching head | 50— 250mm/s |
| Feeding speed | 20— 90mm/s |
| Size of the upper pressing board | D300mm |
| Size of the pressing board | 1600× 500mm |
| Motor power | 3kW |
| Overall dimension | 2240× 1180× 2080mm |
| Total weight | 2100kg |
| Prod Model: |
XYJ-1/25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic Grade: |
Automatic |
| Certification: |
CE |
| Type: |
Cutting Machine |
Yancheng Xiongying Precision Machinery Co., Ltd. is a scale enterprise specialized in producing series precision machinery and general machinery products such as hydraulic cutting machines, die cutting machines, cloth cutting machines, embossing machines and etc. With powerful technical strength, complete production facilities, beautiful environment and convenient traffic conditions, the company is located in Dagang Industrial Park, Yancheng City, Jiangsu Province --- the "Hometown of Chinese Shoe Machinery" known as a national intensive area of spark plan technology.
The company has developed comprehensive technical cooperation with internationally famous companies from Hong Kong, Italy and etc. By insisting on developing with scientific innovation and continuously introducing advanced production technology and modern management mode from home and abroad, the company has made unceasing efforts to establish and strengthen management systems for product research and development, flow work, inspection and installation, quality control, and sale and maintenance, accelerating independent research and development of hi-tech products.
The main products with the brand of "Chaoying" include 10-20T hydraulic swing arm cutting machine, 22/27T automatic hydraulic swing arm cutting machine, 25T hydraulic plane cutting machine, 25/30T hydraulic traveling head cutting machine, 25-60T automatic feeding hydraulic traveling head cutting machine, 25-250T four-column hydraulic plane cutting machine, 30-300T precision four-column hydraulic plane cutting machine, 30-150T automatic parallel-moving precision four-column hydraulic plane cutting machine, 30-300T single & double side automatic feeding precision four-column hydraulic plane cutting machine, 150-300T Top-down pressure(Bottom-up pressure) four-column hydraulic plane cutting machine, 30-60T precision four-column half/full-cut hydraulic die cutting machine, 30-60T automatic feeding cloth material cutting machine, 130T leather embossing machine and etc., which are widely used in such industries as shoes, caps, clothing, toys, jigsaw puzzles, balls, sand paper, plastic packing, wood industry, sports articles, packaging, printing, carpets (floors), home textile, medical goods, PU, air conditioner seals, automobile inner decorations, adhesives and etc.
The products are sold well in the country and exported far to USA, UK, Japan, Canada, Italy, Argentina, Vietnam, India, Saudi Arabia, Sri Lanka, South Africa, Malaysia, South Korea, Hong Kong, Taiwan and other countries and areas. The series products of "Chaoying" brand have been successively appraised as "Creditable Quality Product in Jiangsu Province" and "Famous Product in Yancheng", and the company has been successively honored such titles as "Chairman Unit of the Council of China Light Industry Machinery Association", "Member Unit of China Leather Industry Association", "Member Unit of Standing Committee of Professional Commission of Leather and Footwear Machinery of China Leather Industry Association", "Jiangsu Province Private Science and Technology Enterprise", "Yancheng High-tech Enterprise", "Member Enterprise of Yancheng Chamber of Commerce of Shoe Machinery" and "Contract Honoring and Credit Keeping Enterprise" etc. In addition, the company has been granted the right of independently managing import and export.
Military strategies are used to achieve grand prospect, and Xiongying will assist you to build a successful business. By adhering to the development guideline of "innovative science and technology, quality first; Sincere management and excellent service", we will provide customers with all-round and high quality service with the strict and down-to-earth working style, enterprising spirit of continuous perseverance, honest and sincere management conception, as well as the strong support of advanced technology and soaring development.
Sincerely welcome merchants from home and abroad to visit and instruct us!
