| Supplier: | Shenzhen Wanfang Automation Technology Co., Ltd. |
|---|---|
| Price: | US $ 8000-600000/Piece |
| Min Order: | 1/Piece |
| Quantity:: | |
| Trade Terms: | FOB,CFR,CIF |
|
|

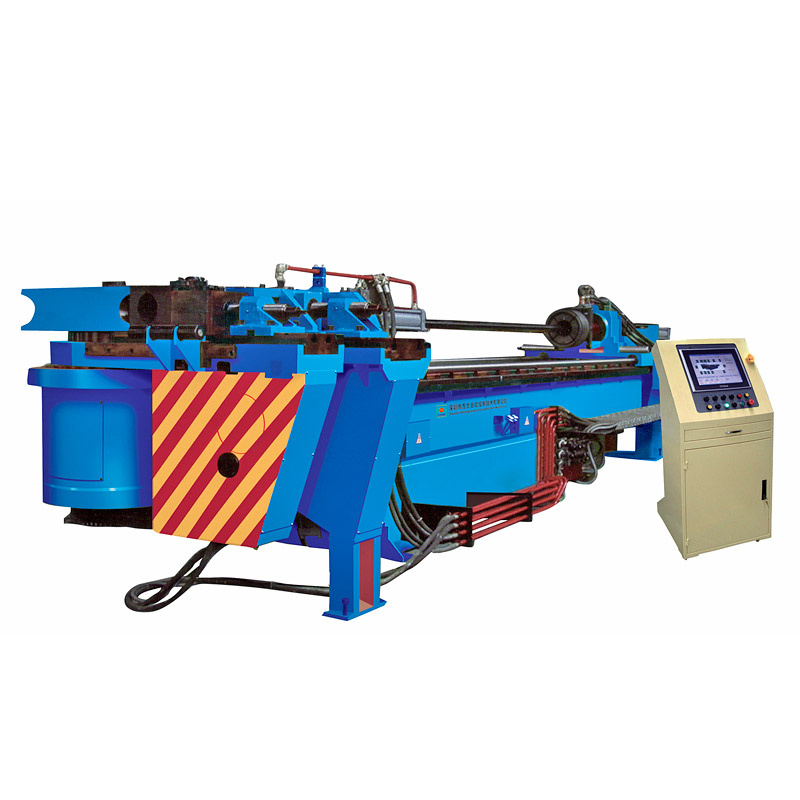

| Prod Model: | WFCNC168x14 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type For Pipe And Tube Bending Machine: | Electric Hydraulic Pipe Bender |
| Type For Fold-bending Machine: | CNC Fold-bend Machine |
| Specification/Model | WFCNC-168x14 | ||
| Max. bending capacity(mm) | Φ168x14 | ||
| Min. bending capacity(mm) | Φ75 | ||
| Max. bending radius(mm) | 800 | ||
| Min. bending radius(mm) | 75 | ||
| Max. bending angle | 190 | ||
| Length of mandrel(mm) | 6000 | ||
| Mandrel stroke(mm) | 1050 | ||
| Mandrel adjustment(mm) | 150 | ||
| Clamp die stroke(mm) | 375 | ||
| Clamp die return stroke(mm) | 375 | ||
| Follower die stroke(mm) | 1270 | ||
| Pipe end Min. length(mm) | 900 | ||
| Tools centerline height(mm) | 110/95 | ||
| Working height(mm) | 1500 | ||
| Speed range | Bending speed C(r/min) | 0-1 | |
| Feeding trolley walking speed Y(r/min) | 0-10 | ||
| Clamping set speed B(r/min) | 0-3 | ||
| Pre-set speed(each axis-CNC) | 9 | ||
| Working accuracy | Bending accuracy C axis(°) | ±0.1 | |
| Feeding accuracy Y axis(°) | ±0.25 | ||
| Rotary accuracy B axis(°) | ±0.1 | ||
| Capacity of memory | 10^5 | ||
| C-axis stall torque(N.m) | 323000 | ||
| Motor power (KM) | 55 | ||
| Hydraulic system pressure(Mpa) | 14 | ||
| Hydraulic tank capacity(L) | 820 | ||
| Dimensions: L*W*H(m) | 13.5*3.3*2.3 | ||
