Product Specifications
| Prod Model: |
CGF18-18-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic Grade: |
Automatic |
| Structure: |
Rotary |
| Feed Cylinder Structure: |
Single-Room Feeding |
| Material Type: |
Liquid |
| Type: |
Volumetric Filling Machine |
| Filling Valve Head: |
Multi-Head |
| Packaging Container Lifting Structure: |
Chute Pneumatic Combination Lifting |
| Filling Principle: |
Atmospheric Pressure |
| Packaging Type: |
Bottle |
| Packaging Material: |
Plastic |
Product Description
Comes free with 2 m blowing belt, 4 m conveyor belt. Two year quality Assurance

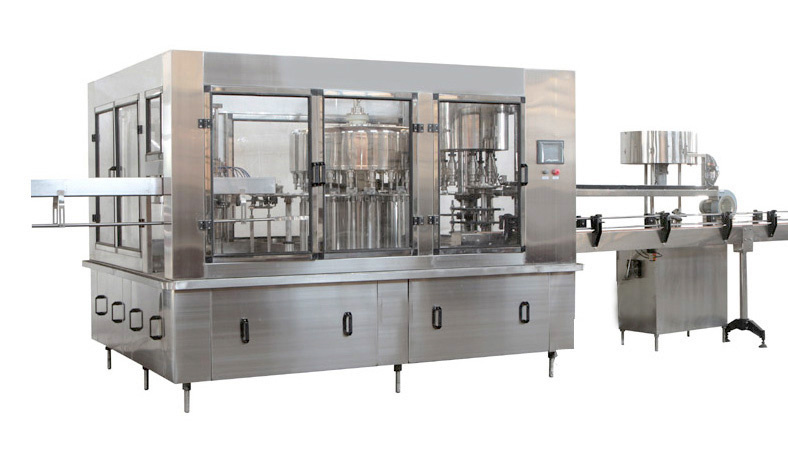

Beverage filling machine
DCGF 18/18/6 Series Washing-Filling-Capping (Three-in-One) Unit made by our company is a new product which is researched and developed on the base of importing, assimilating and absorbing the advanced technology of the same kind of domestic and foreign products, combining several-year-production experience of the company. The unit collects washing, filling and capping together. It is driven by a transmission motor. It has advantages, such as high automation level, compact structure, beautiful appearance, convenient and simple operation, safe and reliable and adjustable continuous production capacity and others. It is an ideal carbonated drink filling production equipment in the country. It is mainly suitable for filling and capping of round or square polyester bottles. According to the demands of different specifications of users, it is only changed a little in design to meet the user's demands.
Beverage filling machine
Main Technological Parameters
Production Capacity Head Quantity:
Production Capacity: 3000~5000bottles/h
Washing Head Quantity: 18;
Filling Valve Quantity: 18;
Capping Head Quantity: 6
Filling Temperature: 2C~5C;
Filling Type: Balanced Pressure Filling;
Power: Main Motor: 3KW
Compressed air: 3m3/h
Ordering-Cap Motor: 0.09KW
Cap Elevating Motor: 0.34KW
Washing Pump: 0.37KW
Air Convey: 1.1KW
Air Consumption: 3m3/h
Central Diameter of Filling Valve: 720mm;
Central Diameter of Capping Machine: 240mm;
Central Diameter of Washing Machine: 720mm
Whole Length: 2500mm;
Whole Width: 2000mm;
Whole Height: 2500mm;
Net Weight: 3000kg
Packing: Wooden case packing
Established in 1996, Shenzhen Angel Drinking Water Equipment Co., Ltd. is a specialized manufacturer of water bottling machines, RO(Reverse Osmosis) system water purification machines and water dispensers. With the support of advanced technique, highly experienced engineers and customer-oriented after sales service, we can provide water bottling machines ranging from 30BPH to 1200BPH for 3/5G plastic bottles, water bottling machines for small bottles and automatic full production lines. Meanwhile, we are able to supply RO system water purification machines from 300L/H to 30T/H.
As one of the leading manufacturers regarding water treatment (covering water dispensers) in China, we are pursuing more economic scales and building a great commercial reputation in the global market. Consequently, our products are selling well in the Canadian, French, Jordanian and Indonesian markets. Being featured PLC, easy operation, convenient maintenance, automatic process (washing/filling/capper) and more hygienic, we are advancing into the international market drastically. Moreover, our water dispensers are UL and CE certified, which helps us build long term business relationships with customers from Mexico, Ecuador, Australia, Singapore, Thailand, Brunei, Indonesia and India.
Providing 'Quality Products, Excellent Service, Competitive Prices and Prompt Delivery', we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more information.
