Product Specifications
| Prod Model: |
XYL-DCGF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application For: |
Filling Machine |
| Material: |
SUS 304 |
| Automatic Grade: |
Automatic |
| Structure: |
Rotary |
| Feed Cylinder Structure: |
Multi-Room Feeding |
| Material Type: |
Liquid |
| Type: |
Volumetric Filling Machine |
| Filling Valve Head: |
Multi-Head |
| Packaging Container Lifting Structure: |
Pneumatic Lifting |
| Filling Principle: |
Pressure |
| Packaging Type: |
Bottle |
| Dosing Device: |
Plunger |
| Packaging Material: |
Film |
Product Description

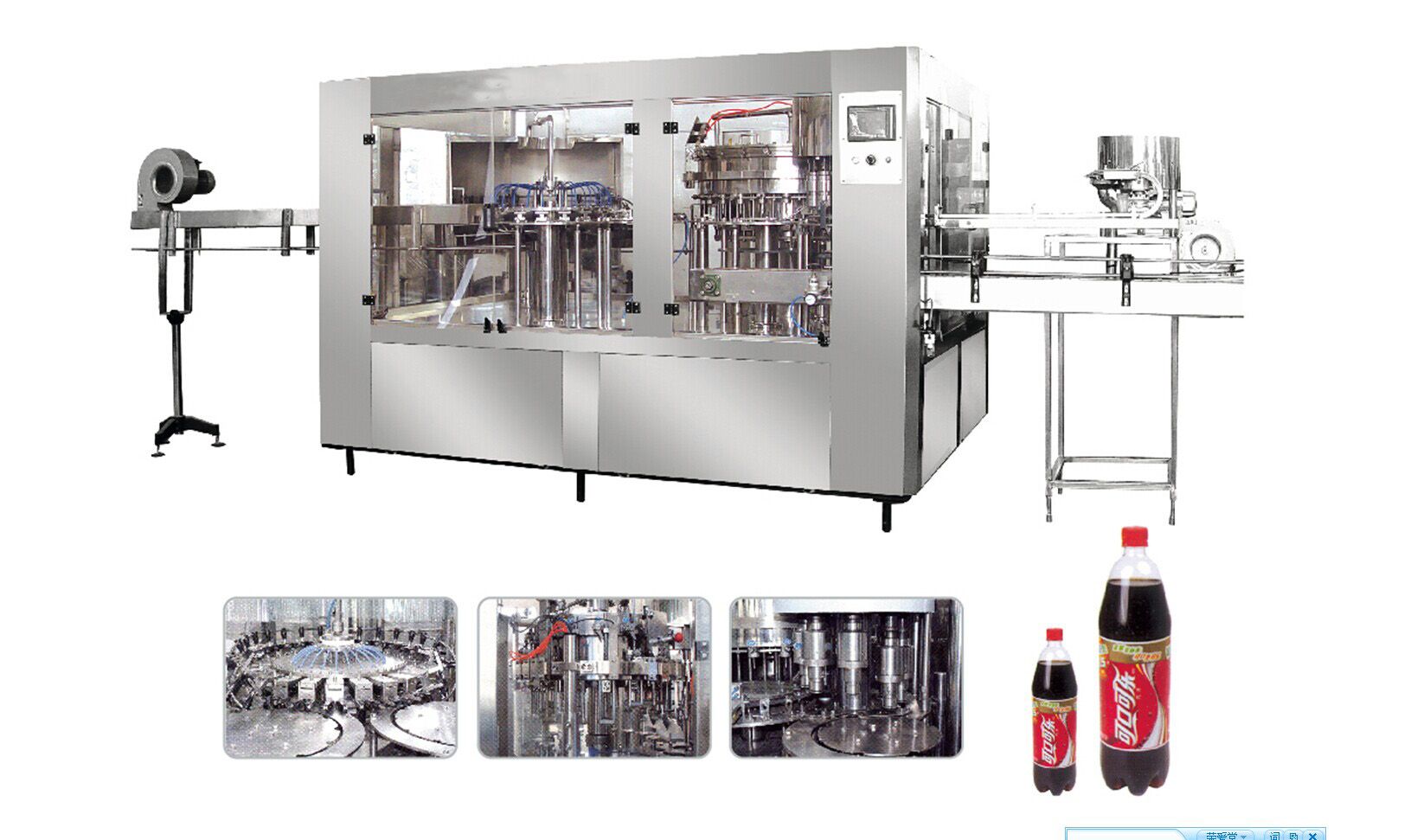

The Machine Is Mainly Used in The Beverage Filling Operations. The Three Functions of Bottle Wash, Fill and Seal Are Composed in One Body of The Machine. The Whole Process Is Automatic.
The Machine of Isotonic filling Methods (D Type) Is Used in Filling Juices, Mineral Water and Purified Water in Bottles Made of Polyester and Plastics. The Handle of The Machine Can Be Freely and Conveniently Turned to Adjust The Machine to Fill Various Types of Bottles. The Filling Operation Is Faster and More Stable Because The New Isotonic Pressure Filling Operation of The New Type Is Adopted.
There The Output and Benefit of The Machine Is Higher Than The Machinery of The Same Specifications. The Advanced Omron Programmed Controller (PLC) Is Adopted to Control The Machine to Run Automatically While a Transducer Is Used in The Bottle-Entering Chains to Adjust Speeds and Coordinated with The Transducer of The Main Machine to Make The Operations of Moving Bottle Forward Steadily and Reliably.
It Is Convenient to Operate with Higher Automation Because Every Part of The Machine Is Inspected to Run with Photo Electricity. The Machine Is an Idea-Preferred Equipment for Beverage Makers.
|
Model: |
DCGF18-18-6 |
DCGF24-24-8 |
DCGF32-32-12 |
DCGF40-40-12 |
|
Capacity: 500ml |
5000 |
8000 |
12000 |
16000 |
|
Bottle shape: |
roud or square |
|
PET bottle: (mm) |
(Bottle Diameter): φ 50-. φ 110mm (Height): 150-340mm |
|
Cap: |
PE srew cap |
|
Filling precision: |
≤ ± 5mm |
|
Filling pressure: (Mpa) |
0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
|
Rinsing pressure: (Mpa) |
0.2-0.25 |
0.2-0.25 |
0.2-0.25 |
0.2-0.25 |
|
Filling volume: (L) |
3.5 |
4 |
6 |
8 |
|
Overall size: (mm) |
2450*1800
*2350 |
2780*2200
*2350 |
3600*2650
*2350 |
3800*2950
*2400 |
|
Weight: (kg) |
3500 |
4500 |
5500 |
6500 |
Zhangjiagang city XY-LONG machinery Co., Ltd is a professional manufactory located in zhangjiagang city jinfeng town, we have more than 10years experiences on beverage machinery.
We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry machine in China, especially model QGF series barreled production line.
For beverage machine, our Main products including:
The capacity of 5000-- 40000 BPH for hot filling, MID-temp filling, aseptic cold filling lines.
The capacity of 5000-- 40000 BPH for mineral water and purified water producing line.
The capacity of 5000 -- 36000 BPH for carbonated beverage producing line.
The capacity of 300 -- 2000 TBH, for 3 gallon, 5 gallon.
All kinds of water treatment equipment.
PET perform inject and blowing-stretching machine. Mould plastics machine
Turn-key projects
Flat and tube UHT device, and CIP system.
All the products are sold well in every province and city of the whole country and also exported to about thirty countries and areas with strong technical force, advanced equipment, scientific management system and perfect after-sales service.
Welcome to visit our company. Thank you!
