Product Specifications
| Prod Model: |
320 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 1900× 1100× 1500mm: |
320 |
| Color & Page: |
Multi-Colour Printing Press |
| Embossing Structure: |
Rotary Letterpress |
Product Description

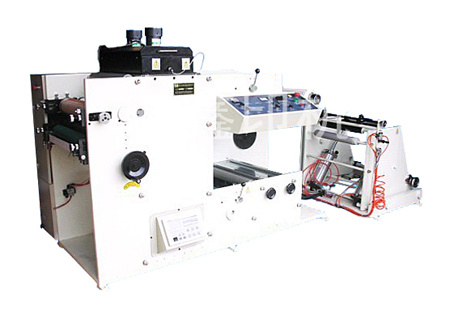

RY-320F-1C Single Color Automatic Flexo Printing Machine can finish in one time from feeding paper webs, printing, automatic infrared drying device. It is an ideal machine for the supermarket labels and single color self-adhesive trademarks.
1. Adopts ceramic mesh roller to convey ink.
2. Magnetic power brake and clutch control the feeding and rolling or discharging.
3. Each printing unit adopts 360-degree registering adjuster.
4. Drying group with infrared drying device.
5. The inking roller can depart from the machine and rotate at low speed in order to keep the ink from drying when its stops.
6. The main motor adopts step-less governor converter.
|
Printing speed: |
60m/min |
|
Max Web Width: |
330mm |
|
Max printing width: |
320mm |
|
Max Feeding Diameter: |
600mm |
|
Max rolling diameter: |
600mm |
|
Printing circumference: |
175-350mm |
|
Main Machine Power: |
1.5kw |
|
Total Power: |
4kw |
|
Overall Dimension: |
1900× 1100× 1500mm |
|
Weigt: |
about1000kg |
|
Thickness of papert: |
60-250g |
Ruian Zhenbang Printing Machinery Co., Ltd. is located at the leading industrial town in south Zhejiang, which has a long history of specializing in manufacturing series of trademark printing machine. Since its founding, the company has been holding on the creed of quality first and seek excellence, paying attention to inner management, after sales services, science and technical progress and information developing. It holds on the policy of uniting traders to occupy the market and take part in the competition. And thus achieved the rapid development of the enterprise.
Facing the drastic competition in the market, the companies makes its policy carefully and keeps its promise of quality basic and emphasize on quality, keep creditable as purpose, the company tries to improve its management system and perfects its sales network it answers back the society by its high quality products and effective services, and at the same time if believes that only by virtue of the strict standard on the product quality can the investing benefits of the clients be ensured more effectively.
Zhenbang enterprise hopes to cooperate with friends home and broad and progress together.
