Automatic Folder Gluer Machine

Name: Automatic Folder Gluer Machine
Brand: china-manufacturer-directory.com
SKU: 754483615
Availability: InStock
Rating: 4.4 (108 reviews)

Price:	US $ 32000-38000set
Trade Terms:	FOB,CFR,CIF
Min Order:	1set
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

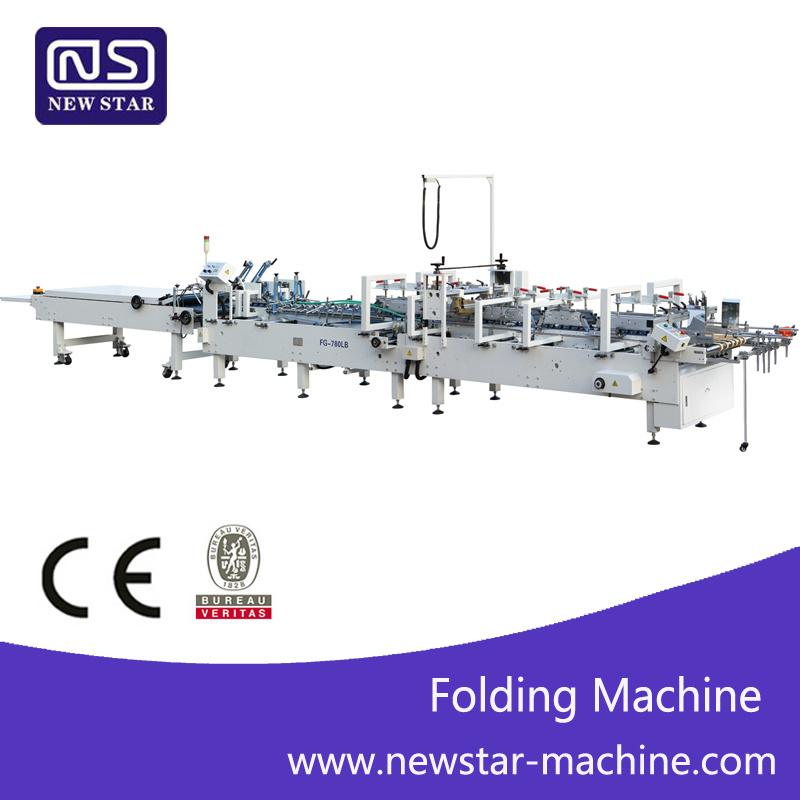

NSFG-780LB lock-bottom & straight-line carton/box automatic folder gluer machine

Specifications

FG-580LB lock bottom folder gluer
1. Lock-bottom & straight-line
2. Max paper size: 580mm
3. Paper weight: 180-800gsm

1.Machine Functions:

Used for straight-line boxes (one-side pasting, one point gluing):

W: 90-580mm

C: 40-285mm

L: 60-500mm

F: 6-30mm
Used for crash lock-bottom boxes (3- point):

W: 180-500mm

C: 70-245mm

L: 120-500mm

F: 10-30mm

For different size boxes, please contact us.

2. Options:

CD ENVELOPES
W min.	130mm
L max.	580mm
H min.	100mm
F min.	10mm
E min.	110mm

POCKET FOLDERS & EMS COURIER BOXES
W min.	220mm
L max.	650mm
H min.	300mm
F min.	10mm

SOCKS BOXES
W max.	500mm
L max.	650mm
H min.	100mm
F min.	30mm

3. Video Links

http://www.chinahade.com/en/videoinfo.asp?id=54

4. Your Box:

If you have any sample box with detailed sizes, please send to us and we will recommend you the best suitable machine.

Contacts:
Wenzhou FEIHUA Printing Machiery CO.LTD
Mob: 0086-13819798309
TEL:0086-577-86709268
FAX:0086-577-86709268

Prod Model:	NSFG-780LB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Condition:	New
Brand Name:	New Star
Model Number:	Fg-580lb
Voltage:	380V
Power(W):	7.5 Kw
Dimension(LWH):	1000014001400mm
Weight:	3700kgs
Speed:	200m/Min
Warranty:	1 Year
Options:	Gluing Guns, Plasma System
Automatic Grade:	Automatic Folder Gluer
Type:	Automatic Box Folder Gluer

New Star Machinery international Limited base on Wenzhou New Star printing Machinery Manufacture, produce kinds of the in post-press machine and paper packaging equipment, the major products UV coating machine, Small smart Office using UV coating, automatic laminating machine, book binding machine automatic one or manual. We are not only for manufacture, but also dealing with folding machine, flute laminating machine, puching machine, And for the machine used material,

New Star manufactures advanced equipment designed for higher productivity, longer life, less maintenance and trouble free performance. Our main idea for machine are simple to use and they can be operated by non technical staff to give a consistently higher calibre result. Also give good service for spare parts.

New Star exports its products worldwide and has an extensive network of demonstration/service centres to support them. We design, engineer, market, service and guarantee our equipment ourselves. Realizing that to remain world leaders in this field, we maintain the highest quality control standards and continuously invest in research and development, we are warmly welcome all the staff from this field to be cooperating with us to improve our standard.
