Product Specifications
| Prod Model: |
(YT-4600) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Place Of Origin: |
Zhejiang, China (Mainland) |
| Brand Name: |
Allwell |
| Model Number: |
Yt-4200 |
| Usage: |
Paper Printer, Non Woven Fabric Printer |
| Voltage: |
220V |
| Certification: |
CE |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Flexo Printing Machine: |
Film Printing Machine . |
| Color & Page: |
Multi-Colour Printing Press |
| Embossing Structure: |
Rotary Letterpress |
| System Supported: |
Windows2000 |
| Printing Interface: |
USB2.0 |
| Printing Speed: |
7.5CPI |
| Plate: |
Flexographic Printing |
| Type: |
Flexographic Printer |
Product Description

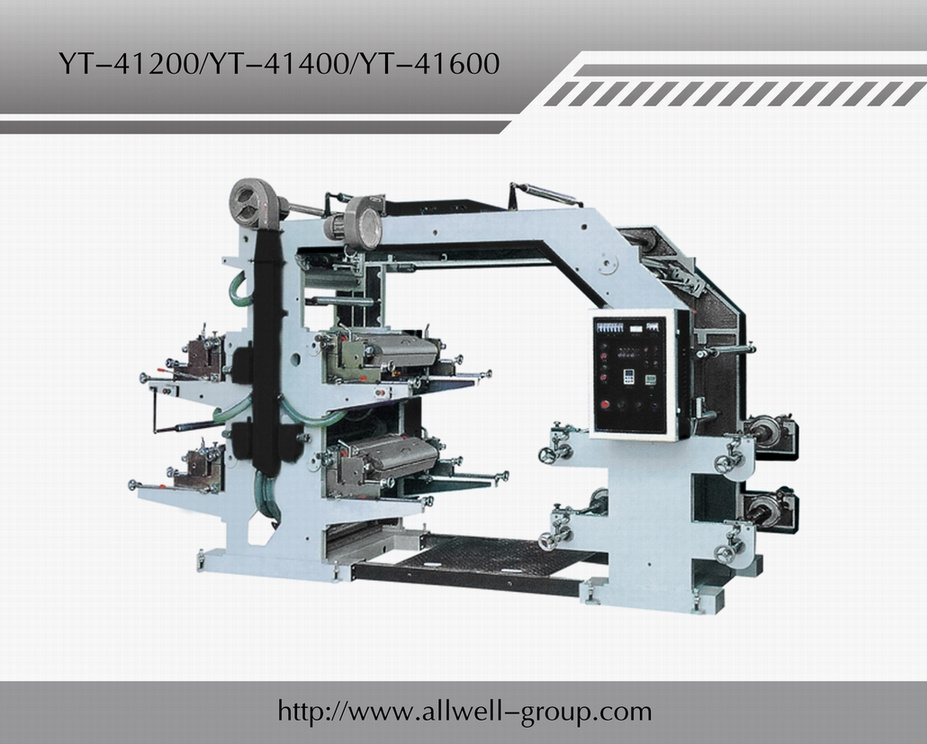

Automatic Four Color Flexo Printing Machinery
Product Description
This printing machine, adopting photosensitive resin as printing plate, is commonly known as the flexographic printing machine. It is suitable for printing packing materials such as polyethylene, polypropylene bag, cellophane and roll paper, etc.
It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Performance and Features:
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high speed rotation, it will automatically break circuit when the machine stops.
6.360° Continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Our Workshop:
Packaging & Delivery
Packaging Details: Plastic film
Delivery Detail: 15 days after the receipt of deposit
Our company & certification:
Wenzhou Allwell Machinery Share Co., Ltd. Established in 2013, we are sourcing from Wenzhou Ounuo Machinery Co., Ltd. Experiencing 3 years' s continued struggle, we collect all the knowledge and resource to service our customers with complete solution in Nonwoven fabric industry in our field.
We always carries a grateful heart to service each customer carefully. Creating value for customers is the only way to achieve self-worth. Accompany with All well, there will be more moving and less worries on your way to be rich.
After services:
1. How long will your engineer reach our factory?
Within one week after machine arrival your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 50USD one day per person.
4. How long is your machine's warranty period?
All our machine have one year guarantee, starting from finished installation.
5. How could we do after one year warranty period?
We also can do service for you, but you need pay salary for my technician 80USD/day.
6. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
7. Does your engineer understand English?
Our engineers understand a little English. All of our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
8. Can you help us find any engineer in our location?
Of course, we will check and inform you as soon as possible.
More details of machine, please contact with us!
Model
|
YT-4600
|
YT-4800
|
YT-41000
|
Max width of the material
|
1200mm
|
1400mm
|
1600mm
|
Max width of printing
|
1160mm
|
1360mm
|
1560mm
|
Max length of printing
|
191-914mm
|
191-914mm
|
191-914mm
|
Max diameter of the material roll
|
1000mm
|
1000mm
|
1000mm
|
Printing speed
|
10-60m/min
|
10-60m/min
|
10-60m/min
|
Plate thickness
|
3.94mm/2.28mm
|
3.94mm/2.28mm
|
3.94mm/2.28mm
|
Total power
|
20kw
|
25kw
|
30kw
|
Weight
|
4000kg
|
4500kg
|
5000kg
|
Overall size
|
4800x2200x2400mm
|
4800x2400x2400mm
|
4800x2600x2400mm
|
Wenzhou Allwell Machinery Share Co., Ltd. Established in 2013, we are sourcing from Wenzhou Ounuo Machinery Share Co., Ltd. Experiencing 3 years' S continued struggle, we collect all the knowledge and resource to service our customers with complete solution in Nonwoven fabric industry in our field. Allwell get rich technology and capital resource, especially we pay high attention to new product innovation. At the same time, we have got Excellent and precise processing center, impeccable testing instrument and perfect quality control system. All of this insure our product quality and reliability. Allwell has passed ISO9001: 2008 quality certificated system and CE safety certificated system. We got import and export right by ourselves.
Including the Nonwoven Production Line, Nonwoven Bag Making Machine and Nonwovens Printing Machine, which we had exported to all over the world in the past years. Such t as East Europe, Middle East, North America, South America, Southeast Asia ect. More than 50 countries and regions. Technology and performance of our products, are in the leading level in the world, a number of technology get the international non-woven industry Association certification. We also participated informulating theinternational standard of nonwoven making machine. A number of international standards were drafting and formulation by us.
Prework, practice conscience first. We always carries a grateful heart to service every customer carefully. Creating value for customers first is the only way to achieve self-worth. Accompany with All well, there will be more moving and less worries on your way to be rich.
Our company supplys different kinds of products. High quality and favaroble price. We' Re pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
