Product Specifications
| Prod Model: |
SW70-1202D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
7.0kg |
| Energy Rating: |
3.5 Star |
| Max. Spin Speed (Variable): |
1200rpm |
| Control Panel: |
Digital LCD |
| Intensive Wash Option: |
Yes |
| Pre-Wash: |
Yes |
| Voltage, Frequency (V / Hz): |
220-240V / 50Hz |
| Unit Dimension: |
595*640*845 |
| Installation: |
Freestanding |
| Housing Material: |
PVC |
| Internal Cylinder Material: |
Stainless Steel |
| Power Source: |
Electric |
Product Description
High efficiency and energy saving

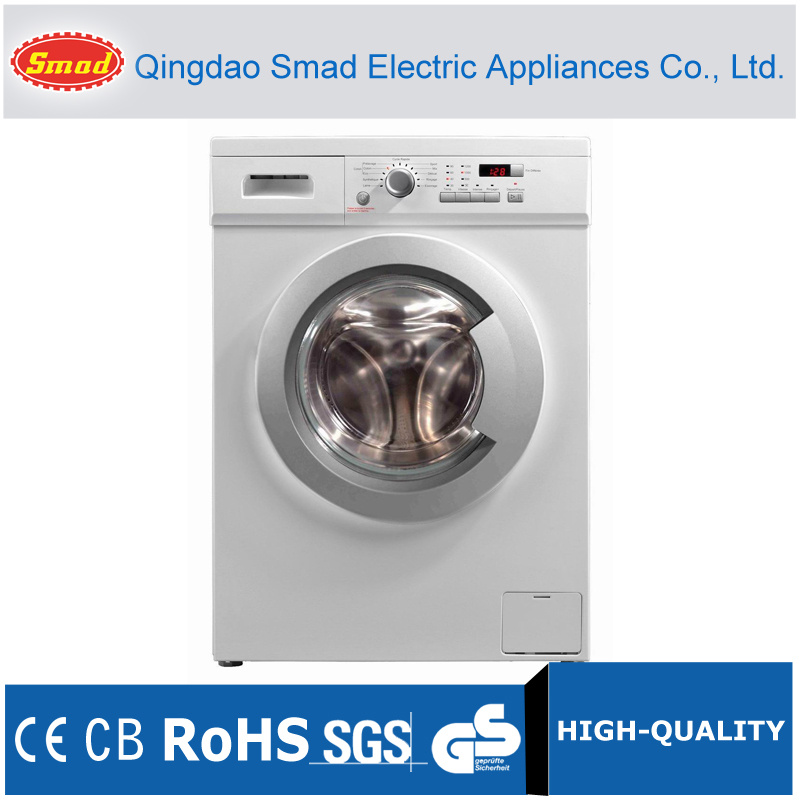

Front loading washing machine
Stylish design
7Kg washing capacity
With CE certificate
| 1. | Product identification |
|
|
| Description of appliance |
| Washing machine |
| Type of appliance(FS = standing, BI = built-in) |
| FS |
| Commercial bar code | EAN |
| | 2. | Key-Features |
|
|
| Energy efficiency class |
| A++ |
| Washing performance class |
| A |
| Spin efficiency class |
| B |
| Programs | n° | 11 |
| Capacity | Kg | 7 |
| Spin speed (max. ) | rpm | 1200 |
| Noise level(sound pressure level) | dB(A) | 73 |
| Energy consumption per wash circle | kWh | 1.19 |
| Water consumption per wash cycle | l | 45 |
| Annual average energy consumption * | kWh | 238 |
| Annual average water consumption* | l | 9000 |
| Residual dampness (spin result) | % | 51.0% |
| Adjustable thermostat ( water temp. adjust from - to ) | ° C | 90 -* |
| Drum capacity dry laundry / water | kg / l | 6/49 |
| Auto water level adjust (depending on volume of filled in laundry) | AWL | Y |
| Washing time (max. ) | min | 214 |
| Washing temperatures (program-controlled) | ° C | 90-30 |
| Certification' s ( CE ) |
| CE |
| Approvals (VDE/GS / TÜ V/GS / IMQ) |
| VDE |
| * per average 200 wash cycles (EN50242) T= COLD |
|
| | 3. | Basics data |
|
|
| Unit dimensions (H x W x D) | cm | 850*595*600 |
| Net weight | kg | 65 |
| Voltage/frequency | V/Hz | 220-240V~50Hz |
| Input power / main fuse (intensity) | W / A | 2000/10 |
| Work top / removable |
| Y/Y |
| Control M = electromechanical, E = electronic, F = fuzzy |
| E |
| Drum S = stainless steel / Z = zinc coated |
| S |
| Tub P = Polyprop. / S = stainless steel |
| P |
| Door: |
|
|
| aesthetic ( R = round, Y = big eye, Q = square) |
| R |
| Diameter | cm | 32 |
| Outer door frame S = stainless steel / M = metal / P = plastic |
| P |
| Inner door G = glass / P = plastic |
| G |
| Detergent compartments | n° | 3 |
| Removable compartment for liquid detergent |
| - |
| Delay timer (from - to) | h | 0.5-24 |
| Self cleaning suds pump |
| - |
| Water inlet hose cold water / hot water |
| Y/- |
| Water drain hose / -support |
| Y/Y |
| Adjustable feet | n° | 4 | | 4. | Safety systems |
|
|
| Auto door lock | ADL | Y |
| Motor overheating protection | MOP | Y |
| No heating without water | NHW | Y |
| Auto water cool-down (before drain 90° C boiled water) | AWC | Y |
| Water overflow protection | WRP | Y |
| Water return protection |
| - |
| Aqua Stop kit |
| - |
| Aqua Proof |
| - |
| AMT Gasket |
| - |
| IC Motor |
| - |
| Child protection |
| Y | | 5. | Programs |
|
|
| 1) Strong action /cotton cycles (80° C/60° C/40° C/30° C/*) | n° | 3 |
| 2) Normal action / synthetics (80° C/60° C/40° C/30° C/*) | n° | 1 |
| 3) Delicate action / wool or cashmere cycles (60° C/40° C/30° C/*) | n° | 2 |
| 4) Delicates silk (40° C/30° C/*) | n° | - |
| 5) Quick wash | n° | 1 |
| 6) Sport | n° | 1 |
| 7) Quick wash |
|
|
| 8) Hand wash | n° | - |
| 9) Mix |
| 1 |
| 10) Underwear |
| - |
| 11) Experss 15' |
|
|
| 12) Jeans |
| - |
| 13) Night wash |
|
|
| 14) Duvet |
| - |
| 15) Special programs | n° | 2 |
| Single Rinse | n° | 1 |
| Single Spin | n° | 1 |
| Single Drain |
| - |
| Single Wash |
| - |
| Self-Clean |
| - |
| Optional function keys (additional program settings) |
|
|
| ON/OFF |
| Y |
| Start / Pause |
| Y |
| Delay |
| Y |
| Extra Rinse |
| Y |
| Rinse Hold (or Soak) |
| - |
| Intense |
| Y |
| Eco Time |
| - |
| Prewash |
|
|
| Spin Select |
| Y |
| Temperature Select |
| Y |
| Auto |
|
|
| Wash |
|
|
| Rinse |
|
|
| Spine |
|
|
| Baby Care |
| - |
| Speed up |
|
|
| |
| - |
| Super Wash |
| - |
| Pre-wash |
| - |
| Easy ironing |
| - | | 6. | Packing dimensions & loadability |
|
|
| Packing dimensions (H x W x D) mm | cm | 895*650*650 |
| Gross weight | kg | 67 |
| 40' Container load | pcs | 162 | | 7. | | Logistic / recicling information |
| RS |
|
| Packing weight | kg | 2 |
| Packing materials / Recycling symbols |
| Shrink |
| Carton (weight) | gr | Shrink package |
| Polistyren (weight) | gr | 1000 |
| Polyetylene foil (weight) | gr | 500 |
| Other packing materials (weight) | gr | 500 |
| Wood (weight) | kg |
| | 8. | Service | RS |
|
| User instruction (languages) |
|
|
| Max. failure rate (12 Months after sales to end customer) | % |
| | 9. | Delivery Time of First Batch, ETD/ETA |
|
|
|
Qingdao Smad Electric Appliances Co., Ltd., was set up in 1999 and rebuilt in 2003. After many years of hard work, we have become one normalized and professional enterprise. Now SMAD has a staff of 600 persons and an annual production of 350 million Yuan.
The development of SMAD is the fastest in the field as a new member of the field. The production capacity has grown over 100% for 3 years since we were founded. The sales of SMAD have increased doubly year by year.
Now SMAD have one sole proprietorship factory and two joint venture factories. Our factories are equipped with the top-level production equipments and testing facilities. We also have well qualified engineers and highly trained technical staff, which promotes the group's opportunity to work out successful partnerships. We guarantee products with superior quality, competitive price and excellent customer service.
We have more than 50 items in our product line. Our products range from freezers, refrigerators, wine cellars, showcases, and ice makers to washing machines.
We are quite proud of our ability of R&D. During design and production process of our products, SMAD produces products of true humanity by the leading of consumers' necessity. Every several months, new models are developed to meet the changeable requirements of our customers.
Since our establishment, SMAD has always been emphasizing on building an effective quality management system. Our rigid control on quality under the framework of ISO9001 has standardized and systemized every functioning department and manufacturing process as well as managing operation.
In the meantime, SMAD gains not only China CCC certificate, but also many overseas certificates such as CE, RoHS, ETL, and GOST.
In accordance with our principle of "supplying the fine and reliable quality products for respected customers", the products from SMAD production lines have been satisfying the customers the domestic and overseas.
SMAD is always ready to eagerly supply customers with excellent products and satisfying services, and warmly welcome you to join us to cooperate for a brighter future.
