Product Specifications
| Prod Model: |
C102 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Eastern Asia,Western Europe |
| Color: |
Silver |
| Material: |
Stainless Steel |
| Capacity: |
to The Order |
| Control: |
Automatic |
| Brand: |
Jiadi |
| Usage: |
Fruit and Vegetables Pulping Machine |
| Package: |
Wrapper Film |
| Key Word: |
Fruit and Vegetable Pulping Machine |
| Region: |
Shanghai China |
| Prouduct Name: |
Automatic Fruit and Vegetable Pulping Machine |
| Voltage: |
380V |
| Power: |
1.5KW |
| Customized: |
Customized |
| Type: |
Fruit and Vegetable Pulping Machine |
Product Description

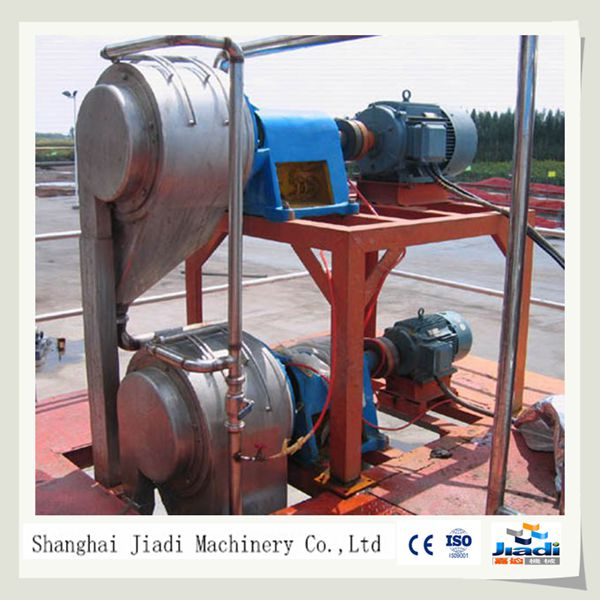

Automatic Fruit And Vegetable Pulping Machine
The fruit and vegetable pulping machine is applicable to pulp the tomato,onion,chili,strawberry,blackberry and carrot which has been destroyed enzyme in the previous procedure.
Technical Explanation:
1.The fruit and vegetable pulping machine brings in the foreign advanced technology and adopts of dual or single way taper screen structure. It can prevent block the screen.
2.Fruit and vegetable pulping machine has a good effect of separating juice and dirt. The screen is adopt of friction proof material and has a long life.
3.There is a butter tank at the bottom with liquid level controller. It can achieve continuous control on line to convey the material well distributed to the concentrator.
Technical Parameter
Model |
JD-DJ-5 |
JD-DJ-20 |
JD-DJ-30 |
JD-DJ-40 |
Capacity(kg/h) |
5000 |
20000 |
30000 |
40000 |
Power( kw) |
11 |
22/15 |
30/15 |
37/22 |
Screen mesh diameter(mm) |
0.8-1.2 |
0.8-1.5 |
0.8-1.5 |
0.8-1.5 |
Dimension(mm) |
1500×830×1840 |
1700×900×2950 |
1800×900×2950 |
1900×950×2950 |
Material |
304/Q235 |
304/Q235 |
304/Q235 |
304/Q235 |
Jiadi Company Introduction:
Located at Huangdu industry area of Shanghai, Shanghai Jiadi Company is a highly professional and experienced manufacturer of fruit and vegetables production line and food packaging mchine in China.
We manufacture and supply a wide range of processing line and packing machines to customers across the world.
All the fruit and vegetable processing lines are scientifically designed, with GMP standard and passed quality system of ISO9001-2008.
We are good at tendering the turnkey project with fabrication, installation, comissioning and operator training. So far, We have tendered turn-key projcet to Gambia, Libya, Colombia, Japan, Vietnam, Thailand and other regions. Have a very good reputation in China and overseas countries.
Shanghai Jiadi Company is a highly professional and experienced manufacturer of fruit and vegetables production line and food packaging mchine in China. We manufacture and supply a wide range of processing line and packing machines to customers across the world. Our products include:
Tomato paste processing lines
Banana powder processing lines
Mango and pineapple processing lines
Fruit juice, tea and foodstuff processing lines
Dairy production lines
Beer production lines
Vaccum packaging machine
Automatic food filling machine
Spray dryer system
Sterilizer system, etc
Located at huangdu industry area of Shanghai, we are professional in developing, manufacturing and selling fruit and vegetable processing lines over 30 years. All the fruit and vegetable processing lines are scientifically designed, with GMP standard and passed quality system of ISO9001-2008.
We are good at tendering the tunrkey project with fabrication, installation, comissioning and operator training. So far, We have tendered turn-key projcet to Gambia, Libya, Colombia, Japan, Vietnam, Thailand and other regions.
