Product Specifications
| Prod Model: |
HLSG-10P/30P/70P/120P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Stainless Steel |
| Mixer Type: |
Powder Mixer |
| Working: |
High Speed Mixer |
| Application: |
Viscous Fluid |
| Additional Capabilities: |
Granulating |

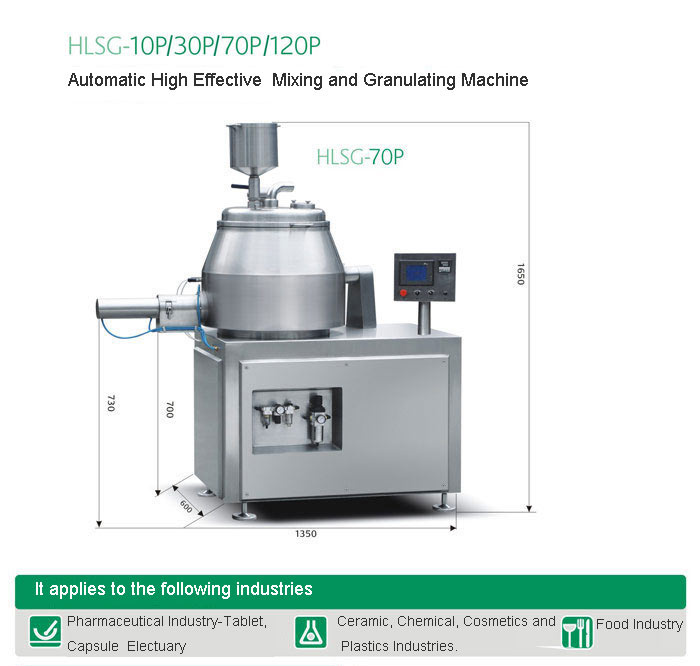

Product Description
Overview:
1.HMI, Siemens PLC full computerized-control.
2.Solid grain, with uniformgrain size and high product yield.
3.Mixing and granulation are finished in one step, so the efficiency is increased 4 to 5 times.
4.Totally closed production, according to GMP.
5.It can still obtain good effect when specific weight difference between main medicine and
auxiliary medicine as well as auxiliary materials are great.
6.Double-layer trough jacket-kettle can be used to heat or cool the materials.
7.Low noise < 72 db
8.Space between kettle bottom and impeller is small (0.3~1mm) to avoid deposit in kettle bottom completely.
Technical parameters:
|
Model |
Unit |
HLSG-10P |
HLSG-30P |
HLSG-70P |
HLSG-120P |
|
Total Volume |
L |
10 |
30 |
70 |
120 |
|
Working Volume |
L |
2~10 |
5~20 |
12~35 |
25~75 |
|
Feeding quantity |
kg |
1~5 |
3~10 |
10~25 |
20~50 |
|
Impeller Speed |
r.p.m |
50~720 |
50~720 |
25~550 |
10~350 |
|
Impeller motor power |
kw |
2.2 |
2.2 |
5.5 |
11 |
|
Cutter rotate Speed |
r.p.m |
1440/2840 |
1440/2840 |
1440/2840 |
1440/2840 |
|
Cutter motor Power |
kw |
0.55/0.75 |
0.55/0.75 |
1.3/1.8 |
2.4/1.3 |
|
Total air supply Pressure |
Mpa |
0.5~0.7 |
0.5~0.7 |
0.5~0.7 |
0.5~0.7 |
|
Air Consumption |
L/min |
25 |
35 |
50 |
70 |
|
Cooling Water Pressure |
Mpa |
0.05~0.1 |
0.05~0.1 |
0.1~0.2 |
0.1~0.2 |
|
Water Consumption |
L/min |
5 |
5 |
10 |
15 |
|
Shaft sealing Water Air pressure |
Mpa |
0.15-0.3 |
0.15-0.3 |
0.15-0.3 |
0.15-0.3 |
|
Machine Weight |
kg |
150 |
180 |
500 |
700 |
|
Overall Dimensions |
mm |
1050×500×1300 |
1050×500×1300 |
1350×730×1650 |
1750×780×1750 |
|
