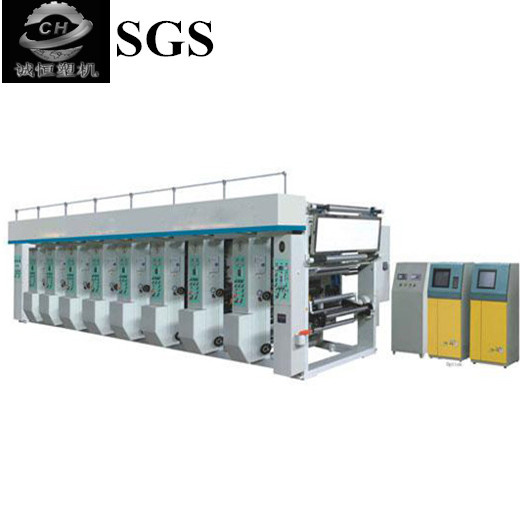

Automatic High-Speed Gravure Printing Machine Factory

Product Specifications

Prod Model:	CHCY-600/800/1000C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Printing Width:	1000mm
Max. Width Of Materials:	1050mm
Max. Printing Speed:	120m/Min
Max. Machine Speed:	140 M/Min
Roll Diameter:	76mm
Style:	Intaglio Printing Press
Structure:	Rotary Printing Press
Color & Page:	Multi-Colour Printing Press

Product Description

Performance & Feature
1. Every control module of the automatic color register system is equipped with a microprocessor which can correct the deviation of color register quickly and accurately.
2. The main motor is equipped with frequency converter for speed regulation
3.Unwinding tension adopts the automatic tension controller and the magnetic powder brake.
4. Rewinding employs the torque motor and the double-station automatic turret.
5. Closed oven, independent heating hot air blowing system and automatic constant temperature system.
6. Pneumatic pressing and traction system and pneumatic scraping blade system
7. Diaphragm-type pneumatic ink auto circulating system
8. Inflatable air shaft for unwinding/rewinding material loading
9. Printing linear speed and meter counting display
10. Shaft less printing cylinder loading device
11. The still frame can be selected.

Application

This machine, widely used in various high-class printing products, is suitable for the one-time continuous multi-color printing of roll-like film materials of excellent printing properties including BOPP, PET, PVC, PE, aluminum foil, and web with widely used in various high class printing products.


Main Technical Parameters

Model	CHCY -8/600C	CHCY -8/800C	CHCY -8/1000C
Printing width	600mm	800mm	1000mm
Max. width of materials	650mm	850mm	1050mm
Max. printing speed	120m/min	120m/min	120m/min
Max. machine speed	140 m/min	140 m/min	140 m/min
Max. diameters of  winding and unwinding	600mm	600mm	600mm
Roll diameter	76mm	76mm	76mm
Printing roll diameter	120~300mm	120~300mm	120~300mm
Registering precision	±0.1mm	±0.1mm	±0.1mm
Tension control range	3~25kg/FullWidth	3~25kg/FullWidth	3~25kg/FullWidth
Oven heating power	72Kw	96Kw	120Kw
Total power	109Kw	136Kw	160.5Kw
Machine weight	18000kg	20000kg	22000kg
Overall dimension	L13300×W3200×H2500mm	L13300×W3400×H2500mm	L13300×W3600×H2500mm


The machine shape, performance and feature of the technical parameters can be changed at any time without prior notice. Without the written approval of Fang Bang company, no materials shall be reproduced or disseminated.

Service
1.Free installation and ajustment.(for consumers purchase more than $100000 only)
2.One year free after-sales service(No charge for changing parts) and mechanical parts lifetime warranty.
3.We will offer you the professional answers about the relating machines in 24 hours.
