Automatic High Speed Maxi Roll Slitting and Rewinding Machine

Name: Automatic High Speed Maxi Roll Slitting and Rewinding Machine
Brand: China-Manufacturer-Directory.com
SKU: 756491415
Availability: InStock
Rating: 4.3 (71 reviews)

Supplier:	Fujian Xinyun Machinery Development Co., Ltd.
Price:	US $ 1-10000/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	XY-TQ-G
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Design:	Customize Service
Embossing:	One Set of Steel to Rubber Roller
Delivery Time:	60days
Process:	Finishing Process Machine
Usage:	Household Paper Machine
Automatic Grade:	Automatic
Sheet Former Type:	Cylinder Mould
Paper Thickness:	Thin Paper
Certification:	CE
Condition:	New
Type:	Slitting Rewinder

Product Description

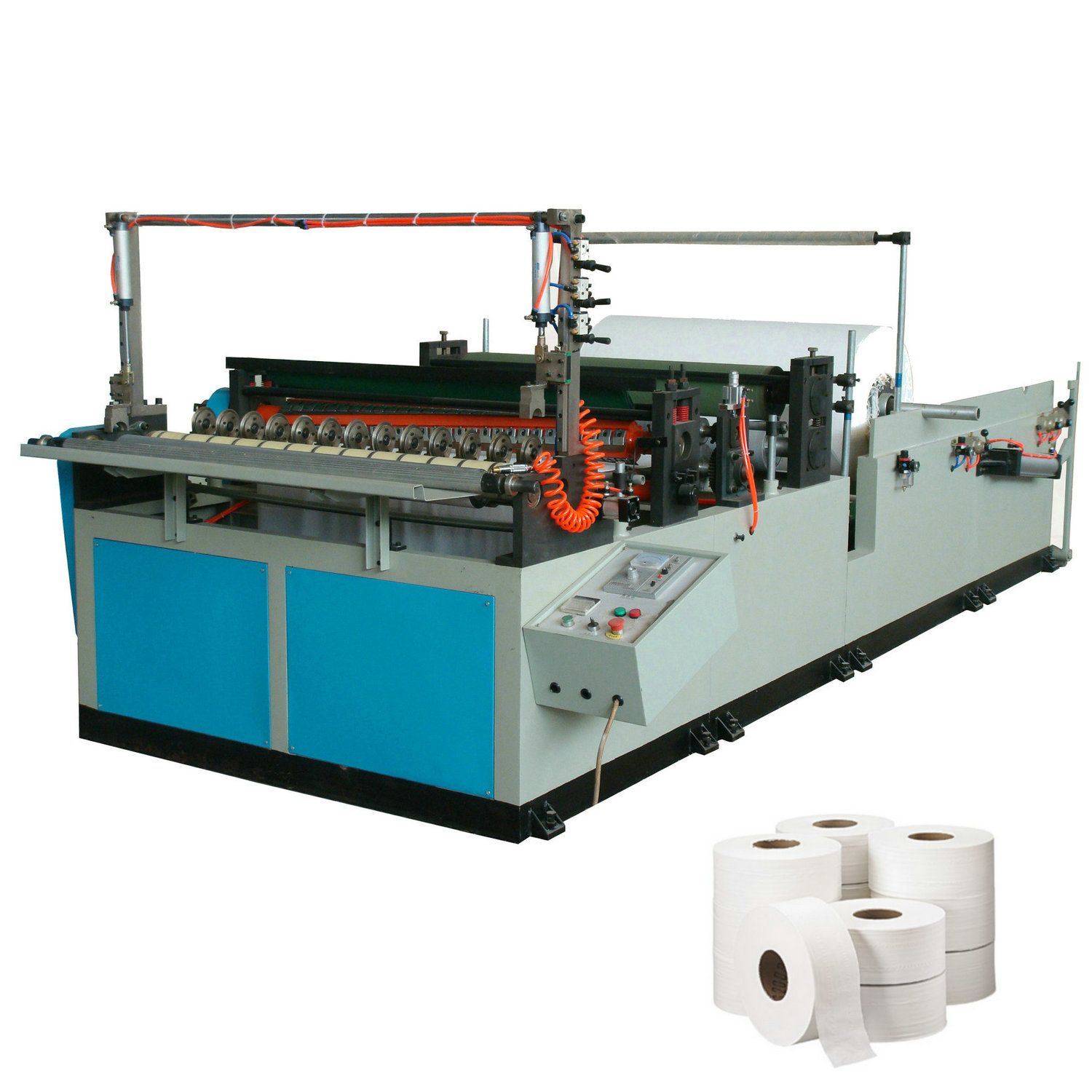

Full Automatic type high speed toilet paper maxi roll slitting and rewinding machine fujian manufacturer

XY-TQ-1575G This machine produces maxi roll toilet paper and towel roll. It has the function of embossment, perforation, slitting and rewinding, all of them can be finished on one time. This machine equipped with pneumatic jumbo roll lifter, pneumatic belt driving, tension adjustment and so on. Adopt air-shaft for reeling.

Main character:
1. Adopt air-shaft for reeling, convenient to set the position of paper pipe.
2. Press-edge system: Adopt steel against steel press-edge, independence cylinder adjustment, convenient to adjust to avoid paper layer apart.
3. Horizontal type unreeling stand, pneumatic lifter, pneumatic flat belt convey paper, there is individual tension adjustment unit on each jumbo roll.
4. Adopt front and back inching switch to draw raw material, convenient for operation and safety.
5. As per requirement of customer, it can add tail-gluing and edge-trimming function. (need to order)

Video link: https://www.youtube.com/watch?v=qXr5ZKrviVA

Main technician parameter:

Model	1092	1575	2000	2200	2400	2600	2800
Width of raw material	1200	1750	1950	2150	2350	2550	2750
Dia. of finished product (mm)	Φ90~1200 (the tension can be adjustable )
Dia. of raw material (mm)	Φ1200(please point other specification)
Inner dia. of core of raw material	76.2 mm(please point other specification)
Distance of perforation (mm)	90~160mm
Processing of capacity	100~200m/min
Reeling	Air shaft (one piece)
Embossment	Single embossment,double embossment
Bottom roller of embossment	Felt roller, wool roller, rubber roller.
Unwinding stand	1-3 layer (please point the number of layers)
Embossing unit	steel to rubber
Pneumatic system	3 air compressor,Min. pressure 5kg/cm2 Pa(prepare by customers)
Power	4.5-11 kw
Overall size (mm) (L×W×H)	6200x2600x1800~6200x4000x1800 mm
Weight	1800~4800kg
Option (pay be customer )	Customize service
Embossing unit	Single embossment, double embossment, steel to steel embossment
Bottom roller of embossment	Felt roller, wool roller , rubber roller
Unwinding stand	1-3layer
Edge embossment	Need to order
Calendaring unit	steel to steel, steel to rubber
Trimming unit	Vacuum adsorption trimming 1.5KW
Edge Trimming and sealing	Need to order
Driving system	Frequency control

Fujian Xinyun Machinery Development Co., Ltd., established in 1998. We have passed ISO9000 Certification for good quality.

We are a factory dealing specially with the export of daily using paper series equipments.

Professional supplier of:

1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)

2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)

3) Facial Tissue Machine (2-8 output lanes)

4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)

5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)

6) Pocket Tissue Machine(mini and standard size)

7) All kinds of Tissue Paper Cutting and Packing Machine

8) Another Household Paper Equipments and Production Line.

All of our products are certified to meet international quality standards and We are producing both standard machines and can provide customize service upon customer's request.

Our machines are export to all over the world, and have got the customers' high appraise.

High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible.

We're expecting to work with enterprises from all over the world and we're willing to research cooperative opportunities and trying to build a long-term and stable business relationship.

Any questions from you are welcome and will be replied in 24 hours.
