Automatic Hook Cleaning Machine
| Price: |
US $ 8000-30000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
Q376, Q378, Q3710 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Cleaning Level: |
SA2.0-3.0 |
| After-Sale Service: |
One Year Guarantee, Engineers Available to Service |
| Voltage: |
220-600V |
| Frequency: |
50Hz 60Hz |
| Application: |
Steel Construction, Casting Parts, Metal Parts |
| Certification: |
ISO |
Product Description
Product Description

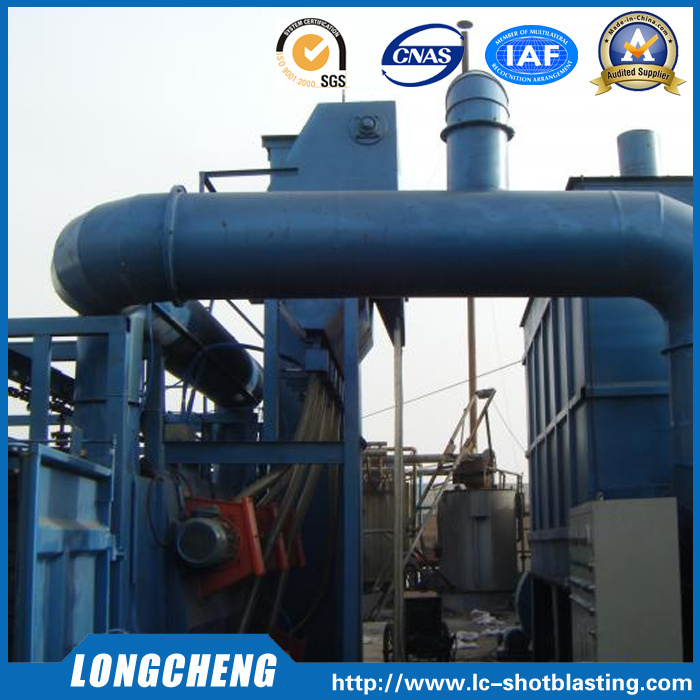

Automatic Hook Cleaning Machine
1. Automatic Hook Cleaning Machine is a kind of high efficency shot blasting machine with non-pit.
2. Automatic Hook Cleaning Machine is with large inner available cleaning space, compacted structure and scientific design. Can be designed and manufactured according to the order.
3. Automatic Hook Cleaning Machine is with no special request for the work piece structure.Can be used for different kind of work pieces.
4. Automatic Hook Cleaning Machine is widely used in cleaning and strengthen for Fragile or Irregularly Shaped Parts, Medium-sized or Large Parts, Die Cast Parts, Sand Removal and External Finishing.
Technical Parameters
| Item Type | Q376 | Q378 | Q3710 | Q3720 | Q3750 |
| Workpiece dimensions (mm) | φ600*1100 | φ800*1500 | φ900*1600 | φ1400*2300 | φ1800*2500 |
| Each hook capacity (kg) | 600 | 1000 | 1000 | 2000 | 5000 |
| Shot blasting rate (kg/min) | 2*120 | 2*180 | 2*250 | 3*250 | 4*250 |
| Lifting capacity (t/h) | 15 | 22 | 30 | 45 | 60 |
| Separating capacity of separator (t/h) | 15 | 22 | 30 | 45 | 60 |
| Air capacity (m³/h) | 5000 | 8000 | 9000 | 15000 | 18000 |
| Exterior size (mm) | 4429*2850*3443 | 4325*2660*5009 | 5047*3850*5156 | 6110*3599*7842 | 7062*5460*8652 |
| Total power (kw) | 19 | 32.5 | 36.5 | 61.5 | 78.5 |
Note: the model above is some typical ones of our Automatic Hook Cleaning Machine, and we usually design the size of the machine according to your working piece. We could manufacture all kinds of shot blasting machine based on customers' needs.
So please tell us the details of your workpiece, then we could design the suitable one for you.
1. The max. Length of the workpiece
2. The max. Width of the workpiece
3. The max. Height of the workpiece
4. The productity you need to blasting the workpiece ( how many tons or pieces per day or per month?)
5. The power supply you need( such as 380V, 3P, 50HZ)
6. The workpiece photo or drawing.is better
Advantages
1. Professional senior enginners to find the best solutions for you;
2. 15 years' production experience in shot blasting machinery industry;
3. Timely after-sale service, if any problem occurs, we would reply to you within 8 working hours;
4. Timely delivery, 3 hours to Shanghai Port;
5. Our experienced workers for site installation and commission
Company Information
We always believe that QUALITY IS OUR CULTURE. We have very professional production line and stuff to make the nice quality products in short time. With more than 15 years' experience in design and manufacturing, we are able to provide you with good quality blast cleaning machinery. We welcome customers all over the world to join us!
Factory

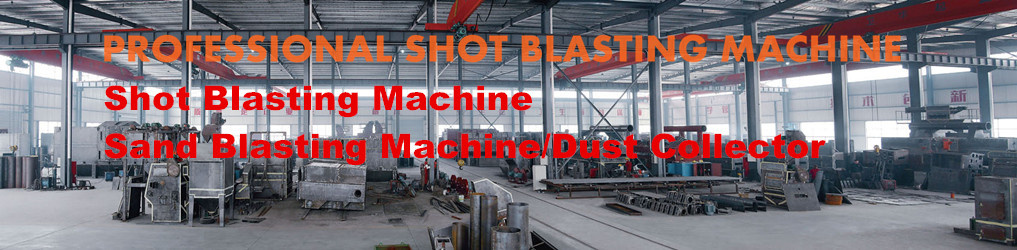

Workshop
FAQ
Trade Information:
MOQ: 1set.
Settlement Currency: USD, RMB, EUR.
Trade mode: FOB, CIP, CFR, CIF, DDU, DDP.
Payment term: 30% deposit by T/T, the balance paid before delivery.
Delivery time: Within 15-40 days based on different type machine.
After-sale Service:
1. Installation and commissioning issue: We will send 1-2 technicians to assist with machine installation and commissioning, customer pays for their tickets, hotel and diet.
2. Warranty time:12 months from date of commissioning completion, but no more than 18 months from date of delivery.
3. Supply full English documents: including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
4. Exported experience to many countries, such as The USA, Russia, UK, Ukraine, Australia, Malaysia, UAE, Egypt, Mexico, Brasil, etc.
5. Our shot blasting spare parts are of high quality with 20% High Chrome, ZGMn13, Mn65, etc.
Any question please kindly contact with us, and welcome to visit our factory in Jiangsu China.
We are a Professional Manufacturer, Passed SGS Audit, and got ISO9001: 2008 and ISO14001: 2004 certifications.
Being a professional manufacturer, Jiangsu Longcheng Casting Machinery Technology Co., Ltd designs and produces various type and shape of shot blasting machine and Blast Room and Coating Equipment. With our designer and technician team, OEM and ODM service are available here. Your Ideas may be became a practical product.
Non-standard casting machinery with special design based on request of client can be made here...
We will do our best to provide very proper items and prices to customers.
Our product cover Shot-blasting machine ( Abrator) & Blast Room and Coating Equipment.
Our main product is a Metallic Processing Machine - shot blasting machine ( Abrator), which contains: Tumble Shot-blasting Machine, Steel Plate Pre-treatment Line, H-beam / steel structure shot-blasting machine, Hook-Type Shot-blasting Machine, Trolley-type Abrator; Turn-Table Shot-blasting Machine, Pedrail-type shot-blasting Machine; Steel Pipe Clean Machine, Steel Bottle cleaning machine, Anchor chain shot-blasting machine etc.
These machine are mainly designed in different type and shape. Which is for polishing and cleaning rust and burr on various metal parts, steel plate, metallic structure, H-beam, steel bottle, pipe, anchor chain and Large parts etc.
Widely used in metallic process industry, automobile, ship building, bridge and machinery industries etc. This kind of products cover many components, structure and design, which are suitable for different requirements from customer.
For more details and our products, please review our website.
With strict quality control:
We always place emphasis on quality control to ensure that excellent quality standards are maintained. We have implemented a QC system that is in strict conformance with international standards. Under this system, all series are monitored and tested at each stage of the production process, with defective items removed. Your requirements are what we struggle.
We Meet International Standards
Our products conform to European CE standard. With high quality, punctual shipment and good service, we have built up our good reputation in the market. Our main markets are in Europe, North America, The Middle East and Southeast Asia etc...
