Product Specifications
| Prod Model: |
hx-100 |
| Voltage: |
220V |
| Weight: |
62/102kg |
| Power: |
245W |
| Cutting Width: |
1-100mm |
| Dimension(L*W*H): |
400X400X1000mm |
| Precision: |
Precision |
| Heating System: |
Electric |
| Demoulding: |
Automatic |
| Warranty: |
12 Months |
| Customized: |
Customized |
| Condition: |
New |
| Automatic Grade: |
Automatic |
| Certification: |
ISO |
Product Description
Specifications
1. The max width: 100mm
2. Tolerence: 0.05mm, Precision: 0.1mm
3. Material thickness: 0.5mm-15mm
4. Kiss cut or cut through a

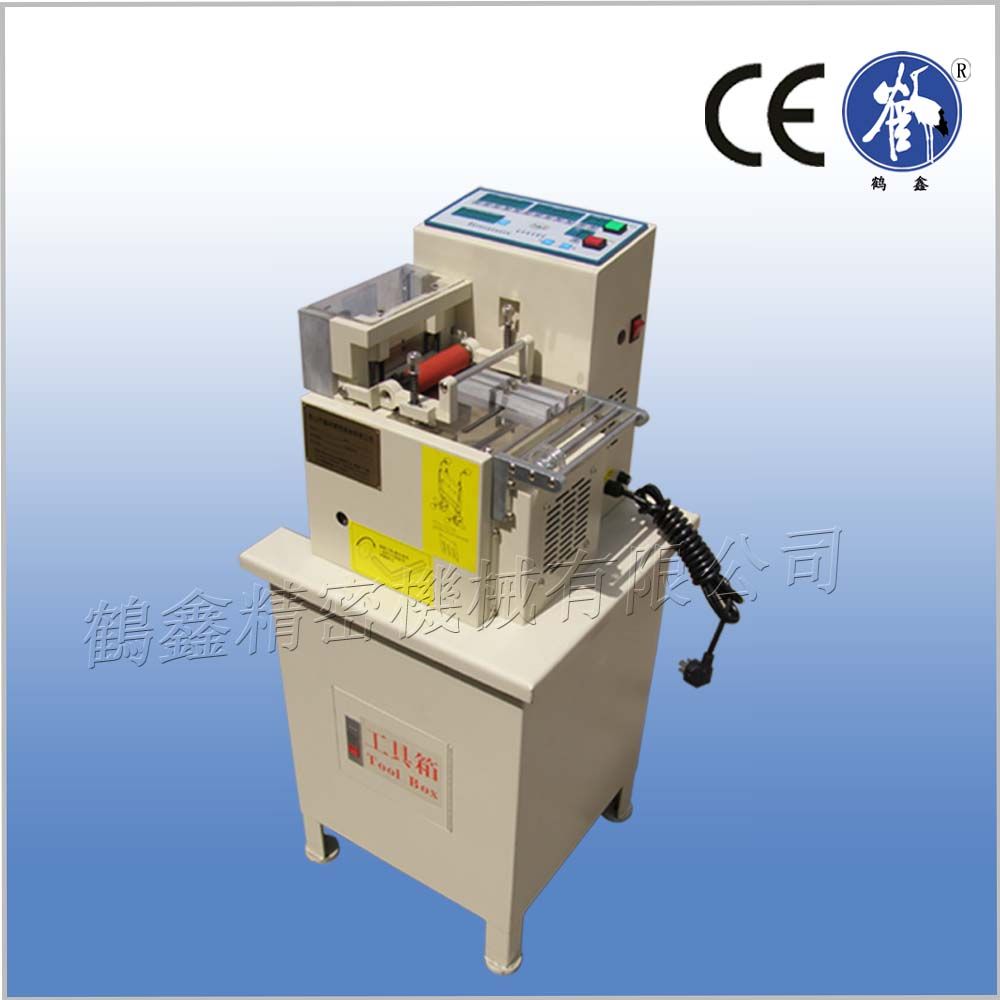

Hexin automatic Hook cutting machine (HX-100)
Main Technical Parameter:
Model |
HX-100 |
Voltage |
220V |
Power |
1/3HP |
N.W. |
62kg |
G.W. |
102kg |
Cutting Length |
0.1~9999.9mm |
Cutting Width |
1~100mm |
Measurement |
400x400x1000mm |
Features:
1. The max width: 100mm
2. Tolerence: 0.05mm, Precision: 0.1mm
3. Material thickness: 0.5mm-15mm
4. Kiss cut or cut through available
5. Under CE and ISO Certifications
6. Warranty for machine: 12months
7. Delivery time: 1-3days
Characteristics:
1. This machine employs microcomputer controller to set belt cutting length.
2. The cutting length is accurate.
3. Operation is easy.
4. Waste rate is low.
5. Manufacturing experience: 30 years
6. Export experience: 20 years
Application:
Sizing cutting for heat shrinking tube, flat cable, PVC sleeve, insulation paper, two-sided tape, Velcro, cotton yarn belt, zipper, etc^...
After-service:
1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory
Kunshan Hexin precise machinery co. Ltd is located in Kunshan city, Jiangsu province, it's only 40 minutes' away from Shanghai Hongqiao airport by car, and 18 minutes' away from Shanghai railway station by high-speed rail. The traffic is very convenient.
We are specialized in developing, manufacturing, marketing and exporting microcomputer belt cutting machines, slitting machines, laminating machines, high precision die cutting machines. With strong technology, international quality control system and perfect after sale service, our products enjoy a good reputation both at home and aboard market.
With Japanese advanced design drawing and manufacturing technology, our machines have come up to the leading levels after continuous improvement for many years, especially in mechanical and electrical, gas and liquid fields. We own professional technical staffs, engineers, sales and after-service employees who constitute a young and well-qualified team. Our belief is "people-oriented, technology-first, integrity-centered and brand idea" and we will provide all our customers with reliable products, perfect service in order to create a brilliant future together.
Our products are widely applied in laminating, slitting and die cutting for protective materials, sticky materials, insulating materials, conductive materials, electronic materials, printing materials and so on, and sizing cutting for strings, strips, sheets, ropes, lines, belts, rolls, plates, tubes, fibre, rubber, foam, Mylar, LCD, films, tapes, PET, PVC, PC, metal foils, etc. Our machines can process all kinds of sheet materials, roll materials and so on.
