Automatic Horizontal Flat Glass Washing and Drying Machine

Product Specifications

Prod Model:	Q-1200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operation:	Automatic
Color:	White
Application:	Glass Washing and Drying
Control:	PLC
Brush Qty:	4 Sets
Function:	Cleaning Glass
Feeding System:	Gear Transmission
Processing Thickness:	2-19mm
Precision:	High
Max. Processing Size:	1100mm
Type:	Glass Washing and Drying Machine
Certification:	ISO

Product Description

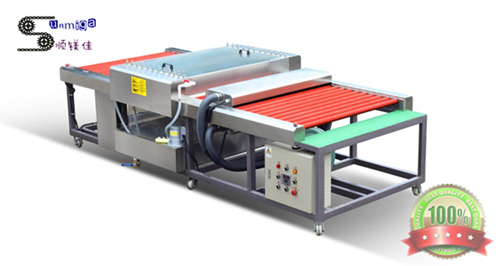

Automatic horizontal flat glass washing and drying machine



Glass dryer suitable for washing and drying different kinds of flat glass.

Glass washer and dryer is made up from feeding in part, washing part and feeding out part.

Feeding system adopts  Stepless adjustment ,performance is more stable and reliable.

The washing system and drying system lift in a whole unit, max. lifting height is 400mm, which make it much easier to clean and maintain the inner ruber roller.

Equiped with 4 sets of brush and 3 sets of sponge roller,washing effect is better.





Technical Parameters:


Max. processing size	1100mm
Min. processing size	150*150mm
Glass thickness	2-19mm
Feeding speed	1.5-6m/min
Total power	9kw
Weight	900kg
Overall size	3300*1600*1020mm
