Product Specifications
| Prod Model: |
(HWD-75CNC) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Bending Diameter(Iron Pipe): |
Od 75×3mm |
| Bending Radius: |
25-350mm |
| Bending Angle: |
≤190 Degree |
| Max Core-Through Distance: |
3500mm |
| Min Bending Length: |
150mm |
| Mandril Stroke: |
150mm |
| Movement Method: |
Linear Control |
| Control Method: |
Semi-Closed Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
| Process Usage: |
CNC Pipe Bending Machine |
Product Description

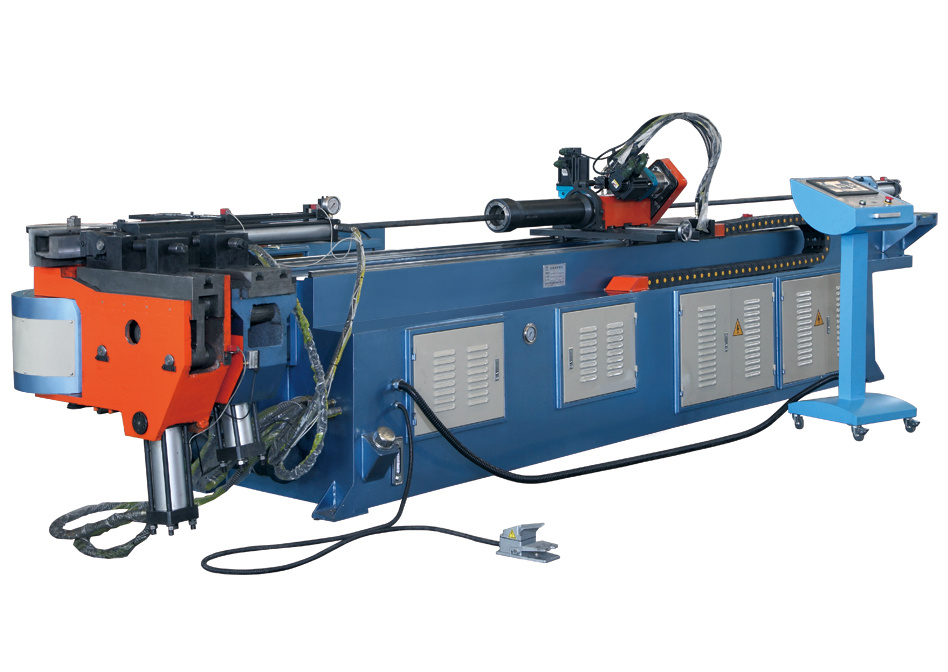

Automatic hydraulic pipe bender technical
1.Mechanical properties and the main scope of application
HWD-CNC- three-dimensional automatic hydraulic pipe bending machine equip with hydraulic drive, feeding, corner are servo-controlled
With big power for bending , Equips with three axis controlling ,works in high precision , all of the programming and input are conducted on conversational touch screen directly, all the information that can be selected automatically, To make the operation convenient, rapid and accurate.
High-performance Automatic hydraulic pipe bender ,widely used in mass production , such as in car and motorcycle parts, the exhaust pipe, seat cushion, high pressure vessel pipe furniture, sports equipment, and all of the iron pipe production. At the same time used in boiler, aerospace, shipbuilding and general engineering piping
2.Data
| Parameter | size |
| Max bending diameter(iron pipe) | ¢75×3mm |
| Bending radius | 25-350mm |
| Bending angle | ≤190 degree |
| Max Core-through distance | 3500mm |
| Min bending length | 150mm |
| Mandrel stroke | 150mm |
| Height of the die center | 75mm |
| center height | 1150mm |
| Bending speed | 40 deg/sec |
| Bending precision | ±0.10 degree |
| Feeding speed | 0.5 m/s |
| Feeding precision | ±0.10 degree |
| Rotation speed | 100 deg/sec |
| Rotation precision | ±0.10 deg/sec |
| Automatic bending quantity | 20 |
| Programme storage | 200sets |
| Operation interface | 10inch full colour touch screen |
| Capacity of tank | 180L |
| Total power of pump motor | 11kw |
| Hydraulic system pressure | 14 Mpa |
| Body panel | 10mm |
| Gross weight | 3500Kg |
| Dimension | 6800*1000*1300mm |
3.CNC pipe bending machine features
1)the machine adopts PLC control, three-dimensional surface, man-machine interface dialogue type operation, full English interface, programmable simple and easy
2)Can be free to choose manual, semi-automatic and fully automatic functions
3)Feeding shaft, rotation axis for the servo control, bend axis for the secondary electromagnetic valve
4)Program sets, and each file can be set 20 automatic feeding, automatic Angle and 20 bend Angle, memory can store 200 groups of files.
5)processing value can be shown on the touch screen of portable controller in the process of feeding Angle (B) (Y) axis, axis, bend (C) axis . It still can set step action, half a cycle, the whole cycle operation.
6)With the function of detecting errors and breakdown. automactically .When any abnormal movements appear or any dangerous exisit the machine will stop working immediately and issues a warning, show the cause of the problem to help the operator to remove malfunction
4.Mechnical and electrical components configuration:
| Item | Material |
| Body | A3Iron welded |
| Touch screen | 10 inch full colour |
| PLC(Programmable controller) | EH Series |
| Motor |
|
| Oil pump |
|
| Oil circuit board |
|
| Oil cylinder | All imported sealing ring |
| Rotary encoder |
|
| AC contactor |
|
| Thermal relay |
|
| Intermediate relay |
|
| Magnetic valve |
|
| Planetary gear | Three dimensional angle change mechanism
|
| Servo motor | Three dimensional angle change mechanism
|
