Product Specifications
| Prod Model: |
SJB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Automatic Ice Cream Paper Cone Sleeve Making Machi |
| Process: |
Paper Machine |
| Usage: |
Packing Paper Machine |
| Automatic Grade: |
Automatic |
| Computerized: |
Yes |
| Certification: |
CE |
| Type: |
Paper Folding Machine |
Product Description
Machine Description

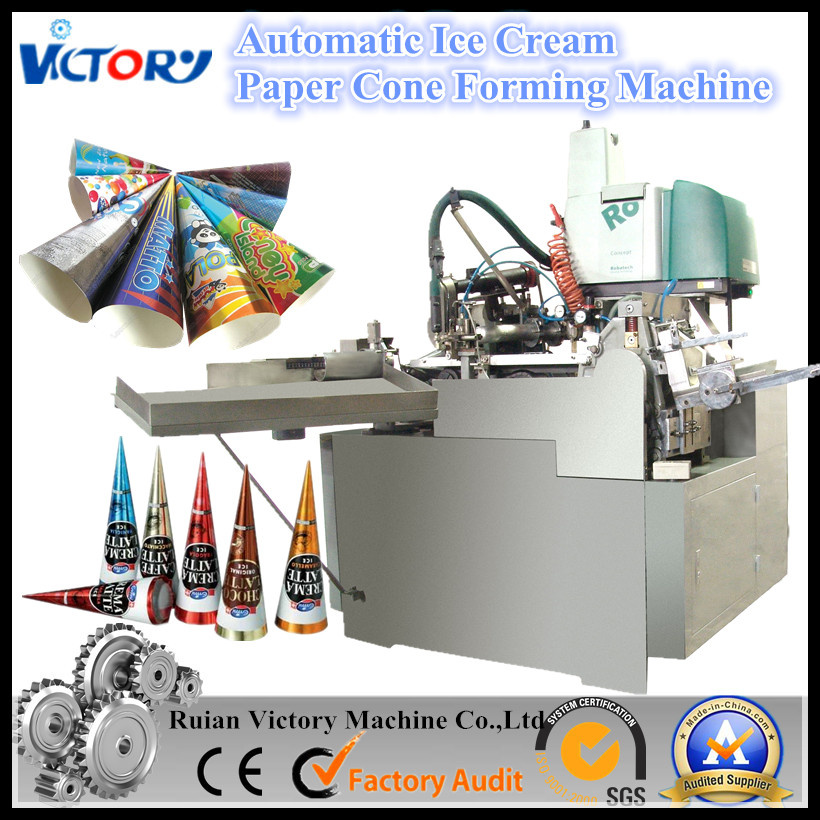

A sucking nozzle will suck the paper, which has been printed previously, from the paper bracket to the transportation chain, and then transport it to the forming mould. During the transportation, the paper will be spread with thermosol. The position, length and quantity of thermosol can be adjusted during the production process without stopping the machine. After the formation, the paper spread with glue will be automatically blown to be transported to the collection machine. The pile and counting are automatic, and the paper will be carried out according to the pre-arranged pile numbers without stopping the machine.
Characteristics
1). High efficiency, the maximum speed is 190 pcs/minute, with automatic counting of the finished product.
2). Small volume, occupying little space, with convenient installation
.
3). Small load power of the machine, which is about 5.5 KW; Speed regulation by frequency vibration, with high precision.
4). The transmission system adopts box type structure, with good rigidity and stability and high precision; Oil circulation lubrication.
5). High automatic degree, simple operation and regulation, with convenient maintenance.
After-sales Service
The goods should be of good quality. But another important thing is the after service. Machines are machine, so they will have problems, even small problems. It is hard for customers to solve all the problems.
Our company will provide you good after services. We can help you solve the problem through video, email, phone.
If needed, we can also let our engineer go to your country to solve the problem. We hope all the customer will satisfied with our machine and services.
If you were interested in our Automatic Ice Cream Paper Cone Sleeve Forming Machine
Welcome to contact to me!
|
Model |
SJB |
|
Production capacity |
The maximum speed can reach 190 PCS/minute |
|
Required paper |
The ordinary paper, composite aluminum foil paper, no
more than 120g/m2 dry wax paper, art paper not exceeding 180g/m2 |
|
The parts for selection |
1. The control of thermosol spreading process 2. Air compressor |
|
Total power |
380v 50HZ 5.5KW |
|
Height & Angle |
100-255mm & 15°~ 28° |
|
Overall dimensions &Weight |
1980*1710* 1800mm & 1200 kg |
|
Main Configuration |
1).Glue Box:is adopted "Robatech " from Switzerland
2).Electromagnetic valve: SMC
3).Transducer: DELTA
4).Counter: OMRON
5).Switch: OMRON
6).Relay: OMRON
7).Photocell eye: SCHNEIDER
8).AC contactor :SCHNEIDER |
