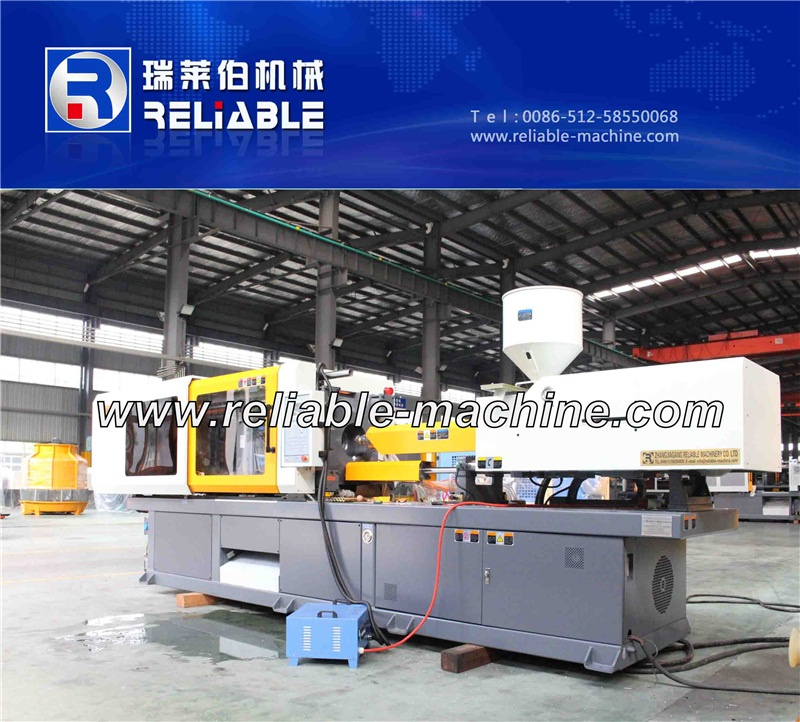

Automatic Injection Moulding Plastic Injection Machines

Product Specifications

Prod Model:	RM-2400
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Condition:	New
Plastic Type:	Thermoplastic
Feature:	Energy Saving
Clamping Force:	2400kn
Opening Stroke:	530mm
Suitbale Material:	PP PE PS Pet HDPE
After-Sales Service Provided:	Engineers Available to Service Machinery Overseas
Warranty:	1 Year for Spare Parts
Customized:	Acceptable
Operation:	Easy& Stable
Raw Material:	PET
Making Method Of Parison:	Injection Blowing
Automation:	Automatic
Computerized:	Computerized
Certification:	TUV SGS, ISO CE TUV SGS
Type:	Injection Mold Machine

Product Description

Automatic Injection Moulding Plastic Injection Machines

Features:

1). The main-frame of theInjection Mold Machine is an incline. And the incline can help the cups easily drop into the plastic holes, the rate of which goes up to 99.99 %. It can reduce paper wasting, it is different from other factories.

2). The Injection Mold Machine can send the bottom paper to the cup automatically and adjust itself because of a spring, it is also different from other factory.

3). Inside of the Injection Mold Machine, we use three ranges chains instead of conventional two ranges chains, it is more fastness, make long service. Some factory only have two range chains.

4). About preheating and main heating, we use aluminium instead of conventional iron pipe. Once machine stop unormally, the cup in side, can not burning it can be much safer.

5). The Injection Mold Machine surface of plate we use stainless steel instead of iron, it can be a much cleaning, sanitation.

6). Most of our wiring device we use adopts from overseas brand. (Japanese omron)

7). This injection Mold Machine is very easy to operate, with PLC touching screen Can storage every different mould operation data, like temperature, shooting time etc.

Automatic Injection Moulding Plastic Injection Machines

Technical Data

Item	Unit	Data
Max. clamping force	KN	2400
Max. opening force	mm	530
(V×H)Space between tie bars	mm	555×555
(min-max) Mould height	mm	200-570
Max. daylight	mm	1100
Ejector force	KN	61.5
Ejector stroke	mm	135
Ejector quantity		9
Screw diameter	mm	55	60	65
Screw L/D ratio	L/D	22.9	21	19.4
Theoretical shot volume	cm 3	665	791	929
Plasticising weight(PS)	g	605	720	845
Injection pressure	Mpa	210	176	150
Theoretical injection rate(PS)	g	176.5	210	245
Plasticising capacity(PS)	g/s	26.4	32.5	40
Screw torque	N.m	2000
Max. screw rotate speed	r/min	150
Injection stroke	mm	280
Pump motor power	KW	22
Pump pressure	Mpa	16
Heating power	KW	18.5
Heating zone		5
Size	m	6.2×1.6×2.1
Net weight	t	8.0
International designation		2400-1390

Automatic Injection Moulding Plastic Injection Machines

RELIABLE Service

The sample service
1.we can send you the video of the running machine.
2.you are always welcome to come to visit our factory, and you may see the operation of the machines here . We will make the arrangement to pick you up when you come .
3.If we get the permission of the customer who has brought the machines from us ,we can tell you their contact information, you can go to visit their factory.

Customized service
1.we can design the machines according your requirements(material ,power,filling type,the kinds of the bottles, and so on).
2.at the same time we will give you our professional suggestion .

After-sales service
1.we will provide the bill of load on time to make sure you can get the machine quickly
2.when you finish the Preparation conditions ,our engineer will go to your factory for the installation, testing and also training .
3.we provide one year warranty with spare parts free.

FAQ

Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service .

Q2:What's your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 1 years guarantee . we will give u spare part free in 1 years

Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.

Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.

Q5:How about the spare parts?
A5:After we deal down all the things , we will offer you a spare parts list for your reference.

ZHANGJIAGANG RELIABLE MACHINERY CO., LTD
