Product Specifications
| Prod Model: |
YFJ 12 - 12 - 4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Suitable Bottle Height: |
100 - 350 mm |
| Suitable Bottle Diameter: |
10 - 100 mm |
| Guarantee Time: |
One Year |
| Suitable Cap: |
Plastice Cap |
| Composition: |
Filling Machine |
| Processing Material: |
Natural Ingredients |
| Process: |
Mild Processing |
Product Description
Description :

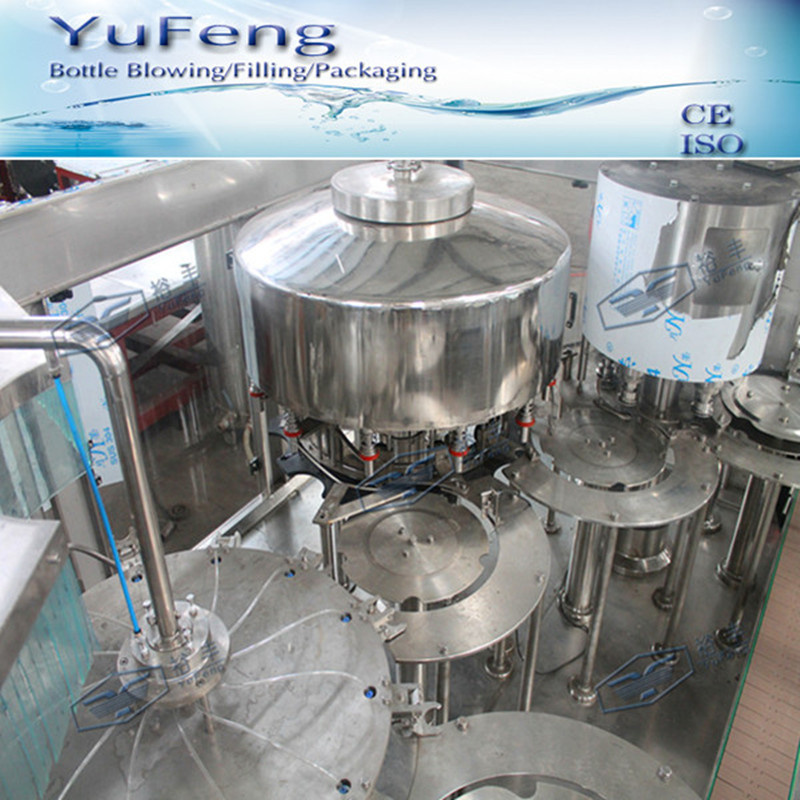

This series of machines integrate washing, filling and capping into one unit, can be used for different kinds of fruit juices/tea hot drink production. With only a few parts changed, the machine can also be used for mineral water filling.The advanced micro-negative pressure filling technology is used in this machine. The filling is quick, steady and accurate. The beverage feedback system is well designed, the gas can be fed back separately, has no contact with beverage, reduce the second time pollution and oxidation. This machine can meet all the technical requirements for hot drink filling below 95. All filling valves and beverage conducting pipes can be cleaned, and the automatic washing interface CIP is designed in the machine. Before capping, the RO water washing device is used to wash the bottle mouth to keep mould away from the bottle mouth. Magnetic torque is used for screw capping, the power of screw capping can be adjusted step-less. It can use constant power to screw capping the plastic caps. The human machine interface is the touch-screen. The most advanced PLC control and frequency changing technologies are used in this machine. The cap. feeding system can be controlled automatically, thefilling temperature can be detected automatically, alarm system for the over heat of the beverage. The filling will be stopped when the beverage temperature is too Iow and the beverage will flow back. When no bottles available,the machine will be in waiting state, and no caps will be applied. When no caps available, or the bottles are jammed, the machine will stop automatically.
The main technological :
| Model | YFJ 12 - 12 - 4 |
| Production capacity (500ml) b/h | 4000 |
| Filling precision | ≤±2mm (liquid level) |
| Filling temperature | 40 - 80 ºC |
| Power kw | 3.8 |
| Weight kg | 1800 |
| Dimensions mm | 1800/1200/2100 |
