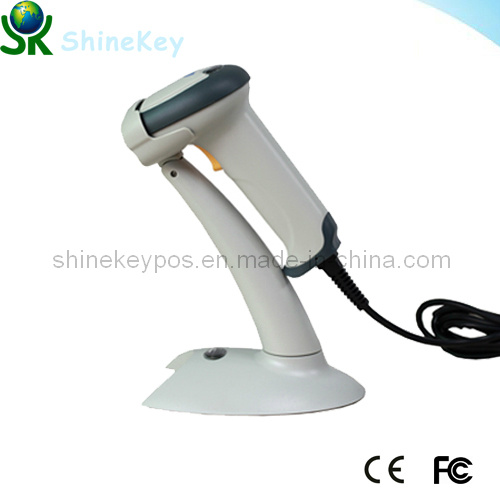

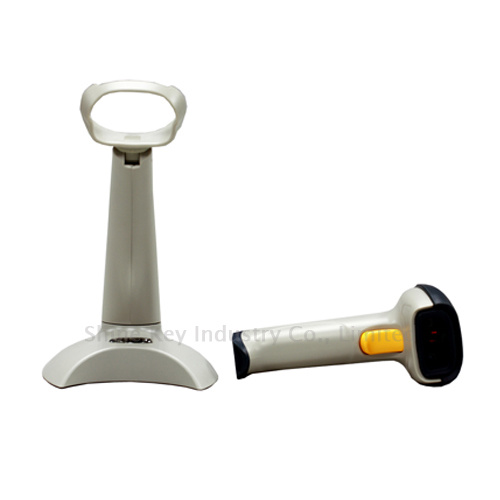

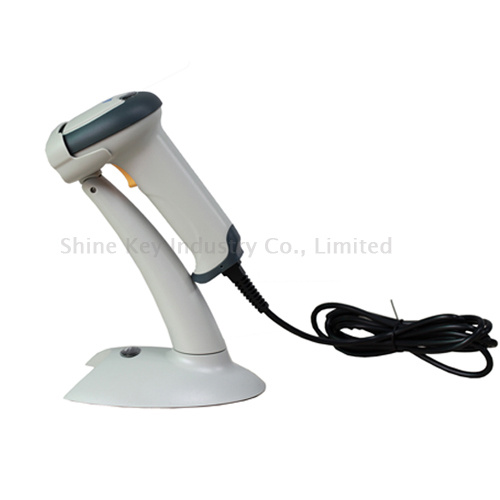

Automatic Laser Barcode Reader with Stand (SK 2600)
Product Specifications
| Prod Model: |
SK 2600 with stand |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| OEM&ODM Service: |
Yes |
| Certification: |
Corh, FCC and etc. |
| Type: |
Barcode Scanner |
Product Description
Automatic Laser Barcode Reader SK 26001. OpticalScanner Type: Bi-directional
Operation Mode: Automatic Laser
Light Source: 650 visible
Scan Rate: 200 times/sec
CPU: 32 bit
Resolution: 3mil high resolution series/ 5 mil long depth field series
Width of field: 50mm @ 60mm, 220mm @ 200mm
Reading Distance: 2.5 - 600mm (100% UPC/EAN)
Print Contrast: 30% minimum reflective difference
Dimensions: L156mmxW68mm xH83mm
Weight: 235g
Scanning angle: ± 60° , ± 65° , ± 42° (left-light, forward-back, spin)
Decode Capability: UPC/EAN, UPC/EAN with Supplementals, UCC/EAN 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, RSS variants, Chinese 2 of 5, MSI/Plessey, UK/Plessey, UCC/EAN128, Chinese code, GS1 databar(RSS) series
Interfaces Supported: PS/2, RS232, USB
Case Material: ABS+PC2. PowerCurrent Consumption: 85mA (Operating); 100 (Max)
Voltage Requirement: 5VDC± 5%3. EnvironmentOperating Temperature: 0° C - 45° C
Storage Temperature: -40° C - 60° C
Relative Humidity: 5% - 90% (non condensing)
Shock: 1.5m drop on concrete surface
Ambient Illumintation: 0~100, 000 LUX
Electrostatic Discharge: Conforms to ± 15KV air discharge and ± 8KV of contact discharge
Laser Classification: EN 60825-1, Class 1
|
Optical |
Laser barcode reader |
|
Scanner Type:Bi-directional |
|
Laser classification:EN60825-1,class 2 |
|
Light Source:650nm(visible) |
|
Scan Rate:200 scans per second |
|
Operation mode: Hand-held / automatic |
|
Resolution:3mil high resolution series / 5mil long depth field series |
|
Width of fields:50@60mm;200@220mm |
|
Reading Distance:2.5-600mm(100% UPC/EAN) |
|
Print Contrast: 30% minimum reflective difference |
|
Dimensions:L156mm × W68mm × H83mm |
|
Weight:235g (with stand) |
|
Scanning angle:±60°\±65°\±42°(left-right \forward-back\spin) |
|
Decode Capability:UPC/EAN, UPC/EAN with Supplementals, UCC/EAN 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, RSS variants, Chinese 2 of 5,MSI/Plessey,UK/Plessey,UCC/EAN 128,chinese code ,GS1 DataBar(RSS)series |
|
Interfaces Supported:USB PS/2 RS-232 |
|
Power |
Current Consumption:85 mA (Operating); 100 (Max) |
|
Indicator:Beeper LED |
|
Voltage Requirement:5VDC ± 5% |
|
Environment |
Operating Temperature: 0°C - 50°C / 32°F to 122°F |
|
Storage Temperature: -40°C - 70°C / -40°F to 158°F |
|
Relative Humidity: 5% - 95% (non condensing) |
|
Shock: 1.5m drop on concrete surface |
|
Safety |
CORH class 2 laser product, FCC class B and CE |
|
Colors: |
white/Black |
