Product Specifications
Prod Model: |
HGQ-100 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Operational Method: |
Continuous |
Structure: |
Rotary Type Drier |
Operation Pressure: |
Electirc |
Movement Way: |
Agitation |
Heating Mode: |
Transmission |
Product Description
Product Description

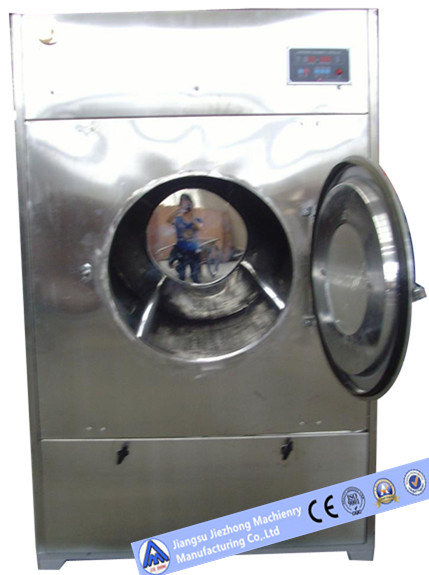

Drying machine is designed for the sweater factory to dry and soft sweater.
The main characteristic of industrial drying machine:
Adopt the automatically controlled device, only need to regulate good time through the control panel, Can finish drying the course entirely automatically;
Transfer to tube and adopt high quality stainless steel to make, the section of thick bamboo body is beautiful and smooth, durable in use, Have not rowed and injure the phenomenon of the fabric definitely;
Open the door greatly and design; Door open freely, it is easier to draw the clothes;
It adopts trigonometry sticky tapes turn round steady, low, safe and reliable noise.
Our products are ISO9001 certified.
Specification of this drying machine is as follows
Model HGQ100
Drum Size 1320mm*1055mm
Drum spped 28rpm
Heated term 380v 50hz 3 phases 4 lines
Motor Power 2.2kw
Fan Power 1.5kw
Overall Dimension 1500mm*1940mm*2100mm
Weight 980kgs
Model |
HGQ15 |
HGQ30 |
HGQ50 |
HGQ100 |
HGQ150 |
HGQ200 |
Rated capacity |
15 |
30 |
50 |
100 |
150 |
200 |
Drum capacity |
760*560 |
900×750 |
1050×930 |
1320×1055 |
1600×1150 |
1300×2150 |
Drum speed |
33 |
33 |
33 |
33 |
28 |
33 |
Heated term |
12.6kw |
Steam pressure:0.294-0.588MPa Voltage:380V Three phase four wire |
Motor power |
0.75 |
1.1 |
1.5 |
2.2 |
4 |
3 |
Breeze motor power |
0.75 |
1.1 |
1.1 |
1.5 |
1.5×2 |
2.2 |
Overall dimensions |
800*1020*1530 |
1000×1400×1800 |
1190×1670×2100 |
1480×1840×2380 |
1760×200×2730 |
2650×1630×2720 |
Overall weight |
250 |
600 |
800 |
980 |
1300 |
1500 |
