Product Specifications
| Prod Model: |
RFL-R |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cetegory: |
Packaging Machinery |
| Brand: |
Fillex |
| Material: |
Stainless Steel |
| Payment: |
T/T, L/C |
| Warranty: |
1 Year |
| Automatic Grade: |
Automatic |
| Application: |
Dairy Products |
| Type: |
Hot Melt Adhesive Labeling Machine |
| Driven Type: |
Electric |
| Packaging Material: |
Plastic |
| Packaging Type: |
Bottles |
| Applicable Industry: |
Beverage |
Product Description

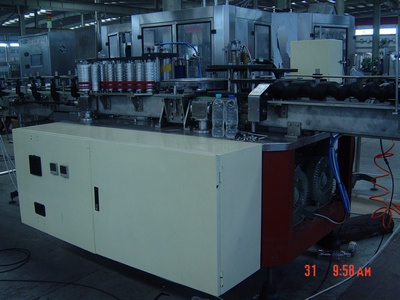

FILLEX manufacture Automatic Line Roll-Fed Hot Melt Glue Labeling Machine/ OPP BOPP labeling machine/High Speed Hot Glue Labeling Machine
The roll-fed labeler just described is often referred to a "linear" machine in the industry, it was designed specially for round container (glass/metal/pet bottles). Containers enter the machine through an infeed conveyor and are separated and metered by a rotating feed screw and/or a "starwheel" with pockets. Labeled ones are delivered to a rotating vacuum drum which is carrying the cut and glued label. Containers are rolled across label. The labeled container is discharged from the drum conveyer. Labels are supplied in the form of a continuous web and cut in precise registration with a printed graphic. These are coated with a customized hot-melt adhesive pattern using a glue wheel applicator. Coating only the leading and trailing edges of the label to minimize adhesive consumption. The speed can be 400bpm.
| Model | RFL-R100 | RFL-R150 | RFL-R200 | RFL-R250 | RFL-R300 | RFL-R400 |
| Labeling speed(BPH) | 6000 | 9000 | 12000 | 15000 | 18000 | 24000 |
| Labeling station | 8 | 12 | 12 | 16 | 20 | 20 |
| Available container | Diameter 30-120 Bottle height: 70-340 |
| Labeling precision | ±0.2mm |
| Roll film diameter | Max. 600mm with 3 inch or 6 inch diameter paper core |
| Machine Power | 6.5KW | 8KW | 8KW | 8KW | 8KW | 8KW |
| Dimension(mm) | 3000*1680*2050 | 3000*1680*2050 | 3000*2050*2050 | 3000*2050*2050 | 3000*2050*2050 | 3000*2050*2050 |
FILLEX is a professional filling, packaging, water treatment solution manufacturer from China with ISO9001: 2000 & CE certification who dedicated to manufacture kinds of filling & packaging equipment & water treatment system for beverage & food field.
Built in 2006, Fillex have 4000 square meters modern standard workshop & 40 professional workers, integrate the R&D department, manufacturing department, technical services department and marketing department together, provide the reliable filling system & water treatment system worldwide.
Fillex Manufacture & Provide below filling & treatment system
LPET Bottle, Glass Bottle, Cans, Cups Filling & Packaging Line(Still water, Carbonated soft drink, Juice, Alcohol, Oil etc)
L1-2 & 3-5 Gallon Jar Bottle Water Plant
LBottle, Kind of Container Labeling Solutions
LWater Treatment System(RO Pure Water Purifier, UF Mineral Water Purifier, Brackish & Seawater Desalination Plant, Water Softener)
