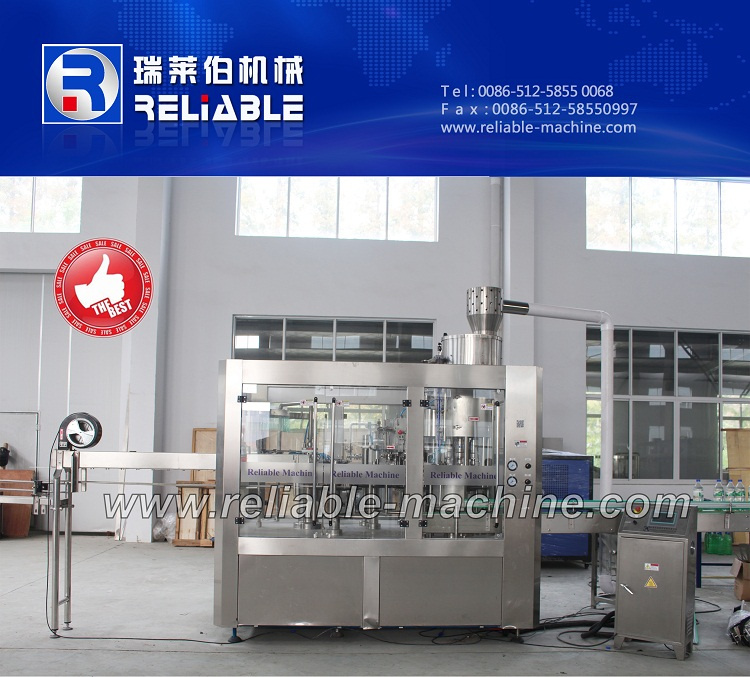

Automatic Liquid Filling Machine / Liquid Beverage Filling Machine

Product Specifications

Prod Model:	CGFD18-18-6 beverage
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand:	Reliable
Place:	Jiangsu, China (Mainland
Name:	Liquid Beverage Filling Machine
Processing:	Soda Water / Soda Drink
Suitable Bottle:	Pet / Plastic Bottle
Bottle Range:	0.2-2L
Material:	Stainless Steel 304
Control:	PLC / Touch Screen
Operation:	Easy&Stable
Certificates:	CE&ISO&SGS.etc
Type:	Count Filling Machine
Automatic Grade:	Automatic
Material Type:	Liquid
Filling Valve Head:	Multi-Head
Feed Cylinder Structure:	Single-Room Feeding
Dosing Device:	Capacity Cup
Filling Principle:	Atmospheric Pressure
Packaging Container Lifting Structure:	Chute Lifting
Structure:	Rotary
Packaging Type:	Bottle
Packaging Material:	Plastic

Product Description

Automatic Liquid Filling Machinery / Liquid Beverage Filling Machinery
Product Description
I.Parameter
 Liquid Filling Machinery

Model	CGFR8-8-3	CGFR16126	CGFR18186	CGFR24248
Number of washing, filling and capping heads	8-8-3	16-12-6	18-18-6	24-24-8
Production capacity(500ml) (B/H)	2000BPH	4000	7000-8000	10000-12000
Suitable bottle specification(mm)	volume=330-2000ml	φ=50-110 H=150 ~340mm              volume=330-2500ml
Washing pressure(kg/cm 2 )	2-3
Motor power(kw)	Main motor 1.9kw	Main motor 3.5kw	Main motor 4.0kw	Main motor 4.8kw
Overall dimensions (mm)	1900*1420*2000	2450*1800*2400	2650*1900*2400	2900*2100 *2400
Weight (kg)	1500	2500	3500	4500
Model	CGFR323210	CGFR404012	CGFR505015	CGFR606015
Number of washing, filling and capping heads	32-32-10	40-40-12	50-50-15	60-60-15
Production capacity(500ml) (B/H)	12000-15000	15000-18000	20000-22000	22000-25000
Suitable bottle specification(mm)	φ=50-110 H=150~340mm  Volume=330-2500ml
Washing pressure(kg/cm 2 )	2-3
Motor power(kw)	Main motor 7.6kw	Main motor 8.3kw	Main motor  9.6kw	Main motor  15Kw
Overall dimensions (mm)	4100*2000 *2400	4550*2650 *2400	5450*3210 *2400	5500*3510 *2400
Weight (kg)	6500	8500	9800	12000

II.Function
 Liquid Filling Machinery
The machine adopts advanced SIEMENS programmable logic controller (PLC) to control the automatic running of the machine. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable. The photoelectrical inspection of the running condition of various parts makes a higher automation and convenient operation. It is the ideal first-choice equipment of beverage manufacturers.
Liquid Filling Machinery for Water
The machine is mainly applied for the filling of beverage. Integrating with washing, filling and sealing, it realizes full automation in the whole process, suitable for polyester bottle and plastic bottle filling of mineral water and purified water. The bottle types applicable for various parts are easily, conveniently and rapidly adjustable. It adopts new micro-negative pressure filling, stable and reliable. Compared with the machines of the same specification, the benefit of this machine is larger.
Liquid Filling Machinery for Soft drink
The machine is mainly applied for the filling of beverage. Integrating with washing, filling and sealing, it realizes full automation in the whole process, suitable for polyester bottle and plastic bottle filling of carbonated drink and sparkling water. The bottle types applicable for various parts are easily, conveniently and rapidly adjustable. It adoptsnew isobaric pressure filling, stable and reliable. Compared with the machines of the same specification, the productivity and benefit of this machine is larger.
Liquid Filling Machinery for Juice
The machine is mainly applied for the filling of beverage. Integrating with washing, filling and sealing, it has temperature control device for heat filling and realizes full automation in the whole process, suitable for polyester bottle and plastic bottle filling of juice and tea. The bottle types applicable for various parts are easily, conveniently and rapidly adjustable. It adopts new micro-negative pressure filling, stable and reliable. Compared with the machines of the same specification, the benefit of the machine is larger.
III.Main Usage Features
Liquid Filling Machinery
It is suitbale for all kinds of beverage like pure water , mineral water , alkaine water , soft drink , juice , fresh juice etc , making and packaging .
IV.Reference Project
Liquid Filling Machinery

V.Factory & Workshop
Liquid Filling Machinery

VI.Packing & Delivery
Liquid Filling Machinery

VI.Guarantee and After-sale Service
Liquid Filling Machinery
RELIABLE supply and manufacture the followings machines for you
1) Water treatment equipment---RO purified equipment, UF purified equipment, Sand filter, Carbon filter, Water softner, Sea Water treatment.
2) Filling Machine---3 in 1 Washing filling capping---for your water,cabonated drink,
                                 juice,wine,vinegar, milk,tea and so on.
                          ----150 to 2000ml bottle, 3.5-10L,11- 20L bottle (3-6gallon bottle)
                         ---PET bottle, Glass bottle, PP bottle and Can
                         ----Screw cap, Aluminum cap, Grown cap and three (four) twist caps etc.
3) Labeling Machine---Stick label, Shrink sleeve label, Hot melt Opp labels. Wet gule label
4) Printer , Manual code printer , Inkjet printer , Laser printer
5) Packing Machine----Shrink film, Cartons packing machine
6) Bottle Blowing Machine
7)Injection Molding Machine---for your cap and proform.
8) Subsidiary products for drink production---Bottle Washer, Bottle Capper, Conveyor, Bottle Dryer, Bottle Warmer, Bottle Loading system, Bottle unscrambler, CIP system, Bottle Cooler, Bottle Sterilizer, Blending tank, Storage Tank, Sugar Melting Pot, Syrup Filter Conveyor and so on.
RELIABLE will supply you bottle design, label design, workshop design free and make turnkey project equipments for you.
Don't hesitate to contact us if you show interesting on our beverage production machine and our RELIABLE company.
VII Contact and Visiting
Liquid Filling Machinery

Payment & Terms
1. Payment Method :
1. 30% by T/T as down payment within 7 days the contract signed
   70% by T/T paid before delivery
2. Irrevocable Confirmed L/C at sight .
2 . Mechanical Warranty :
One year warranty and come with at least one year recommended spare parts
3. Delivery & Packing :
Ø Delivery Time: 40~45 days after get down payment & bottle/label samples
Ø Coming Document:
1) Machine Quality Guarantee
2) Complete set install & maintain instruction Book in English language
3) Complete Document for customer to clear its custom
Ø Packaging requirement:;
1) The special packaging box is according to the immunity standard in China,it suits for long-distance transport, damp proof, rustproof, land way and seaway
2) Transportation ways: Sea transportation
4. Install in Spot :
If Engineers install in spot
1) Installment USD60~100/day. Person as allowance
2) Training fee is free for customer's workers within the installation period
3) The tickets from China to the customer factory and return paid by the customer
4) The local housing , food, and transfer cost at customer factory paid by the customer
