Product Specifications
| Prod Model: |
DP-DS01-1 |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Voltage: |
380/220V |
| Color: |
1, 2, 3 |
| Cut Angle: |
90/90, 90/45, 90/60, 45/45, 60/60 |
| Production Time: |
15 Days |
| Guarantee: |
1 Year |
| Type: |
Pipe Extruder |
| Automation: |
Automatic |
| Plastic Processed: |
PP |
| Feeding Mode: |
One Feed |
| Product Type: |
Extrusion Molding Machine |
| Screw Channel Structure: |
Spiral, Straight |
Product Description

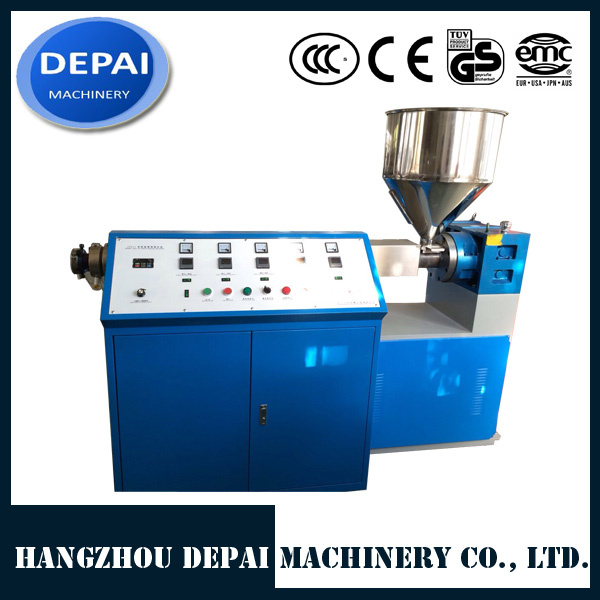

Automatic machinery for making plastic pp drinking straw
Applications
Food industry: PP PE pipe, drinking straws, Lollipop sticks, Coffee stirring stick etc.
The other industry: bullpens refill, Cotton swab sticks, brake pipe and some small diameter pipes.
Introduction
1.This production line is to extrude small-diameter pipes in single color, bicolor and tricolor. 2.It is composed of extruder, 2 sets of standard mould, Vacuum calibration and cooling unit, hauling and rotary cutting device. Mainframe of the machine is of a compact, robust construction.
3.The machine is fabricated by 38CrMoAlA with nitrogen treatment of a depth of 0.2~0.7mm
to withstand continuous use under production conditions, important parts adopts superior alloy steel with nitrogen treatment.
4.It is characterized by high efficiency, easy to operate and control, so it will lower your labor cost, improve efficiency thus to increase your profit.
Characteristics
1. Color: One, two, three color with spiral and straight stripes can choose from.
2. Cutting End:90°/90°,90°/45°,90°/60°,45°/45°,60°/60°
Photos
|
Color |
single |
Two |
Three |
|
Model |
DP-001 |
DP-002 |
DP-003 |
|
Main parts |
Main parts are: extruder, cooling water tank, vacuum shaping equipment, air compressor,
hauling cutting system, single color, bicolor or tricolor pipes can be realized. |
|
Power supply |
Main screw |
380v ,3phase,50hz,7.5kw(VFD) |
|
Sub-screw |
/ |
0.75kw |
0.75×2kw |
|
Heating |
7kw |
9.56kw |
12kw |
|
Hauling motor |
0.75kw(VFD) |
|
Cutting motor |
0.75kw(VFD) |
|
Total power |
16.5kw |
20kw |
22.5kw |
|
Temperature Controller |
4sets |
7sets |
10sets |
|
Electric control cabinet |
1set |
1set |
1set |
|
AutomaticCounting Device |
1set |
1set |
1set |
|
Way of Hauling |
By rubber roller |
|
Way of cutting |
Rotatory cutting |
|
Cooling water tank |
Usually 4.4m, can be adjusted up&down, right &left, forward&backward. |
|
Option |
Vacuum pump (0.75kw) |
Air compressor (2kw) |
|
Specification of Pipe |
Material |
PP PE etc. |
|
Diameter |
2mm~13mm |
|
Length |
Customizable |
|
Speed |
600~1000pcs/min |
|
Color |
Single |
Two |
Three |
|
Straight or spiral strips |
√ |
√ |
√ |
|
Cutting End |
90°/90°,90°/45°,90°/60°,45°/45°,60°/60 |
|
Machine dimension L×W×H |
8m×1m×1.7mm |
8m×1.5m×1.7m |
8m×2m×1.7m |
|
Weight of equipment |
1.5T |
1.7T |
2T |
