Product Specifications
| Prod Model: |
UF-4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pipe Material: |
Plastic or Stainless Steel |
| Application Type: |
Mineral Water Treatment |
| Motive Power: |
Electric |
| Processing Type: |
Hollow Super Ultra Filter |
| Capactiy: |
Customize |
| Outlook: |
Vertical |
| Usage: |
Chemical Industry |
| Motive Force: |
Electric power |
| Certification: |
CE |
| Type: |
Hollow Super Ultra Filter |
Product Description
1.Production description

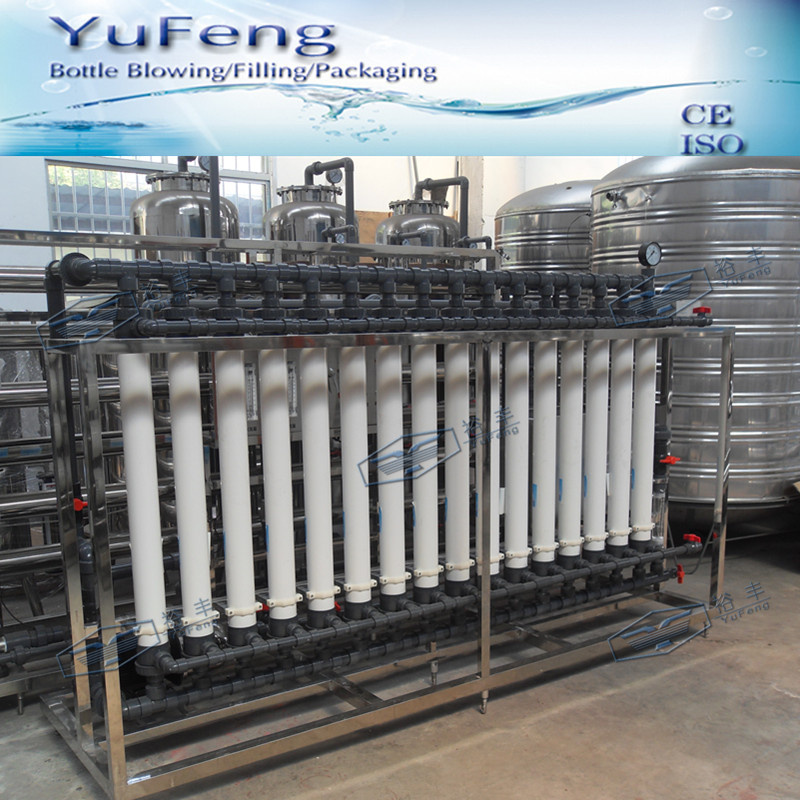

The hollow super ultra filter is widely used in the mineral water production line, it is the pre-treatment of the total mineral water production line, the raw water will be filtered by this machine before going to the filling part.
This system adopts American ultrafiltration membrane , the rate of removed salt is 50-75%, recovery 50%-75%, and shapes the special character. The whole system can get rid of bacterial virus , heavy metallic irons. radioactive elements , organic pollutant each is 99.99%, 95%, 99%, 95% , the quality of water sweet , clean. Also get rid of poison harmful material in source water , such as four chlorination carbons, benzenes, hydrocarbon, agrochemical, and lead, mercury , chrome ...etc other radioactive element all Be tested a limit the following.
2.What is Ultrafiltration?
Ultrafiltration (UF) is a variety of membrane filtration in which hydrostatic pressure forces a liquid against a semipermeable membrane.
Ultrafiltration membrane is the anisomerous semipermeable membrane made of macro molecule material as the separation method without phase transition for solution, and can remove particles whose molecule weight ranges 1, 500-100, 000 Dalton, and can effectively remove organic, bacterium, virus, colloid and non-ion suspended solid
3. function
UF membranes auto wash and manual wash
UF membranes manual wash with medicine
Mineral water high water level auto stop, low water level auto start
Multi-phases pump protected without water Protected when no power, poor power, short circuit, larger electric current, creepage of electricity
4.Application:
1)Drinking water
2)Clarifying and eliminating bacterial for mineral water
3)Canteen/cafeteria, dormitory, office, residential area, supermarket/shopping mall, hotel
4)product: sachet water, bottle water, cup water, soda water, material of juice
5.The whole working process:
Raw water tank ---- Raw water pump---- Quartz sand filter ---- Active carbon filter---- Ion exchanger ---- Precision filter ---- Hollow super ultra filter ---- UV sterilizer ---- Pure water storage tank
6.Technical data:| Model | RO-4000 |
| Flow rate | ≥8m3/h (25ºC) |
| Recovery rate | ≥75% |
| Design pressure | ≤0.3Mpa |
| Operation | automatic control, automatic flush |
| Power | 3kw |
| Size | 1900*600*1700mm |
| Weight | 450kg |
We can also customize the hollow super ultra filter according to your requirements.
