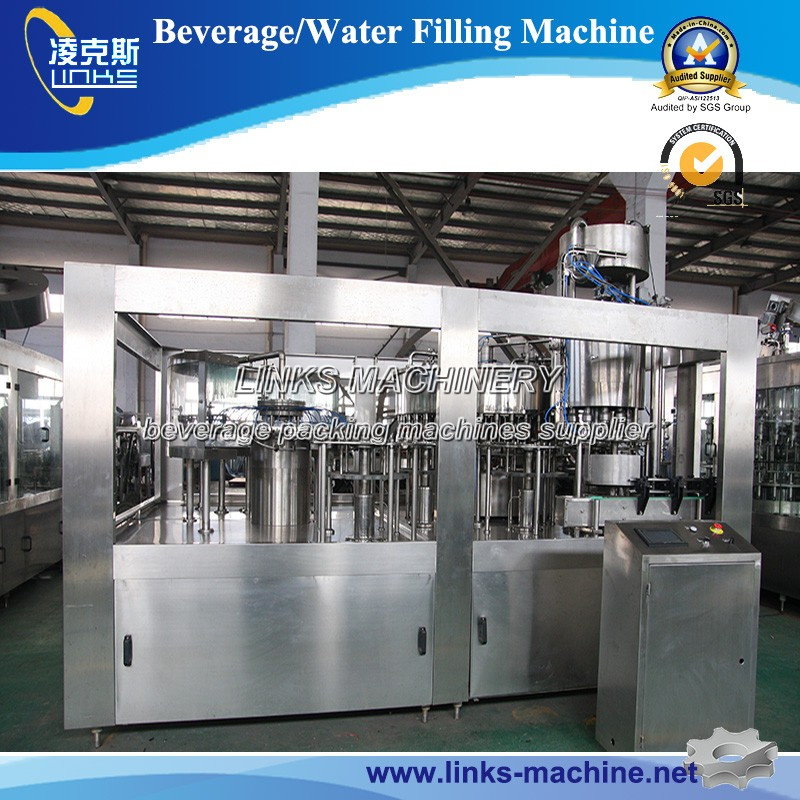

Automatic Mineral Water Rinsing Filling Capping Machinery

Name: Automatic Mineral Water Rinsing Filling Capping Machinery
Brand: china-manufacturer-directory.com
SKU: 691588432
Availability: InStock
Rating: 4.5 (31 reviews)

Price:	US $ 5000-50000set
Trade Terms:	FOB,CFR,CIF
Min Order:	1set
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

CGF Series Washing, Filling, Capping 3 in 1 Monoblock Machine
Automatic Mineral Water Rinsing Filling Capping Machinery:
With High efficiency, easy maintenance

General description
This model special for water filling, combined with rinsing, filling and capping. It is innovated and designed in the requirement of carbonated beverage technics, on the bases of introducing, digesting and absorbing advanced technology abroad. It is reasonable in structure, safe to operate and easy to maintain, which is an ideal choice for beverage producers.

1, The rotary wheel is a fully SUS304 stainless steel welded structure.

2, Use PLC control system from Japan, and with Taiwan Veinview touch screen, much easier to adjust the speed and turn/off. The whole machine technology from Germany and Italy.

3, The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.

4, Transfer Starwheel
Made of stainless steel of superior quality.

Model	CGF 14-12-4	CGF 18-18-6	CGF 24-24-8	CGF 32-32-8	CGF 40-40-10
Washing Heads	12	18	24	32	40
Filling Heads	12	18	24	32	40
Capping Heads	4	6	8	8	10
Suitable Bottle Size	H: 170-320mm Dia Φ: 50-100mm
Spraying Pressure(Mpa)	0.25-0.3
Normal Capacity Base on 500ml Bottle	4000BPH	8000BPH	12000BPH	15000BPH	18000BPH
Power(kw):	2.2	3.5	3.8	5.5	7.5
Oversize(mm) LWH	190018002700	240021002700	300021002700	410021002700	480021003400
Weight(kg)	2300	3500	4600	6500	8500

Main composition	Description Supplier
PLC	Mitsubishi (Japan) , Siemens (Germany)
Touch screen	Weinview(Taiwan)
Frequency converter	Mitsubishi (Japan) , Siemens (Germany)
Air switch	Schneider (France)
Breaker	Siemens (Germany)
Contactor	Siemens (Germany)
Photoelectric switch	Omron (Japan)

Prod Model:	CGF Water Filling Machinery
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Cgf Series
Control System:	PLC Mitsubishi
Bottle Type:	Plastic Bottle / Glass Bottle
Bottle Volume:	200ml to 2500ml Adjustable
Beverage Drinks:	Pure/Mineral Water
Exchange Parts For Different Bottles:	Provided.
Machines Main Material:	Stainless Steel 304 Food Grade
Capacity Base On 500ml Bottle:	2000bph to 18000bph
Voltage:	Be Designed by Customer Requests
Certificate:	SGS, CE, ISO.
Automatic Grade:	Fully Automatic
Structure:	Rotary
Feed Cylinder Structure:	Multi-Room Feeding
Material Type:	Liquid
Type:	Volumetric Filling Machine
Filling Valve Head:	Multi-Head
Packaging Container Lifting Structure:	Chute Pneumatic Combination Lifting
Filling Principle:	Atmospheric Pressure
Packaging Type:	Bottle
Packaging Material:	Plastic
Dosing Device:	Volume Pressure

Established in 2001, Zhangjiagang Links-Machine., Ltd. Is a specialized manufacturer of water purification treatment, water/beverage bottle blow molding machines, water/beverage filling machines, labeling machines, film wrapping machines. With the support of advanced technique from Germany and Italy, highly experienced engineers and customer-oriented after sales service,

Our main products including:

1.1200-30, 000 bph Mineral water/pure water production lines

2.1200-22, 000 bph Juice/fruit tea hot filling production lines

3.1200-18, 000 bph Carbonated/soda beverage production lines

4.100-1500 bph 5 gallon jar bottle drinking water production lines

5. Glass Bottle Vodka/Wine Filling Line

6. Complete sets of water treatment plants

7. PET bottle blowing machine

8. Bottle Preform/Caps Injection molding machine

Providing 'Quality Products, Excellent Service, Competitive Prices and Prompt Delivery', we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more information.
