Product Specifications
| Prod Model: |
JN-NC-230 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Process: |
Paper Machine |
| Usage: |
Folding Paper Machine |
| Type: |
Paper Folding Machine |
| Certification: |
CE |
| Computerized: |
Yes |
| Automatic Grade: |
Automatic |
Product Description
Technical Specification:
1 Applicable jumbo roll: 18-25G/M2 double-ply paper, 35-48G/M2 single-ply paper;
2 Jumbo roll width: 710-1400mm
3 Jumbo roll diameter: 1200-1500mm
4 Jumbo roll core diameter: 76-152mm
5 Cross cutting size: 225mm, 230mm, 240±1mm
6 Longitudinal cutting size: Adjustable
7 Folding system: Vacuum absorption N folding (M and C folding type is also available)
8 Counting device: Auto counting by ink mark
9 Controlling system: Frequency speed, PLC control and magic eye detecting
10 Power needed: AC380V 50Hz 5.5-7.5KW(Main motor) 15-22KW(vacuum pump)
11 Paper feeding system: 1-2 unwind stand, buffering cylinder control
12 Production speed: 190m/min(speed depends on jumbo roll quality
13 Air pressure: 0.5Mpa(buyer prepares)
|
Machine Model |

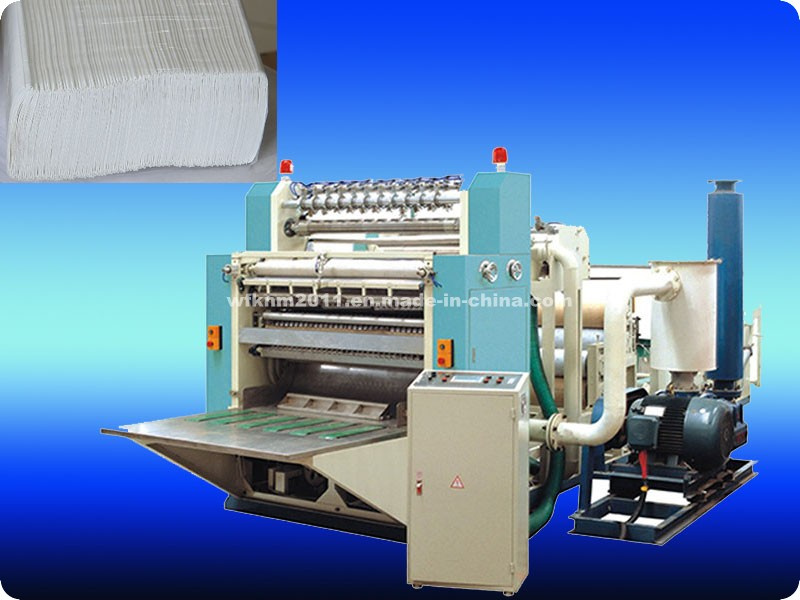

JN-NC-2L Full-Auto N-Fold Lamination Hand Towel Folder |
|
Parrent Roll Width (mm) |
230*2=460 |
|
Parrent Roll Diameter |
≤Φ1100(Other sizes are available) |
|
Parrent Roll Core Diameter(mm) |
≤Φ 76.2mm (Other sizes are available) |
|
Finished Product Size(mm) |
230*225 +/- 2mm (other sizes to be specified) |
|
Folding Type |
Vacuum suction N fold |
|
Speed |
800pics/min |
|
Counter |
Electric counting ,ink marked |
|
Vacuum system |
Vacuum pump 11-32kw |
|
Transmission Unit |
Timming belt |
|
Programmable Controller |
PLC |
|
Pneumatic System |
3HP air compressor mini pressure 5kg/m2 Pa |
|
Power |
380V or 220 V ,50HZ |
|
Option |
|
Embossing Unit |
Steel to steel .Pneumatic pressure adding ,cross embossing or in-phase embossing |
|
Lamination Unit |
Point to point gluing ,or cross gluing |
|
Slitting Unit |
Pneumatic dot slitting |
Weifang Jingnuo Machinery Co., Ltd. Has a high-quality staff team, a registered capital of 30 million yuan, workshops with the total area of 8, 000 square meters and first-class production facilities.
The company mainly produces living paper post processing equipment: Full-automatic high-speed toilet paper production line series, paper handkerchief production line series, paper towel production line series, high-speed cutting machine series, and four-color printing napkin production line series. In 2008, according to market demand, the company launched living paper full-automatic packing machine series, napkin packing machine, tape paper packing machine and facial tissue packing machine to matching with the original equipment, which improves the automation degree of the production of customers, greatly improves the production efficiency, reduces the labor strength, saves the production cost, enhances the market competitive power of customers and wins the unanimous praise of customers.
The company constantly perfects its internal management mechanism and strengthens quality management. It has won several patents. According to the suggestions fed back by customers, it scientifically and accurately improves product quality and makes constant improvement, so that the internal management and production quality of the company have been constantly optimized.
In 2009, the head company decided to make investment on the mainland and built its production plant in Weifang, the world's kite capital in Shandong. With living paper production line and packing machine as leading products, the manufacture plant (Weifang Jingnuo Machinery Manufacture Co., Ltd. ) has officially gone into operation.
Contact: Amelia Gao
Phone: 0086-536-7650111
Fax: 0086-536-7603588
Mobile: 0086-18765183088 (please call the mobile)
Factory advantage
* water cutter equippment and Electroplating production line to produce machine.
* we are the only factory in China that produce the whole facial tissue production independently.
