Qingdao Super Herdsman Machinery Co., Ltd. >> Automatic Nipple Drinking System for Poultry Farm

Automatic Nipple Drinking System for Poultry Farm

Name: Automatic Nipple Drinking System for Poultry Farm
Brand: china-manufacturer-directory.com
SKU: 677709152
Availability: InStock
Rating: 4.5 (139 reviews)

Supplier:	Qingdao Super Herdsman Machinery Co., Ltd.
Price:	US $ 1/Piece
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SHF-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Water Output:	39-65ml/Min
Nipple Feed Ability:	8-12 Chickens/Piece
Function:	Loading Water
Fit With:	Square Tube
Lead Time:	20 Days After Deposite
Delivery Port:	Qingdao ,China
Power Source:	Electric
Type:	Poultry Drinking Equipment
Usage:	Water Drinking for Chicken
Epidemic Prevention Equipment:	Mobile Disinfecting Car

Product Description

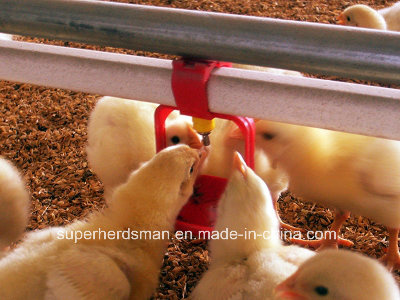

Automatic nipple drinking system

Nipple drinking system composed of water front parts ,drinking system ,hanging system ,regulator ,water end parts .

Water front parts	1. Including filter , water meter ,and dose . 2. Function : adjust water supply and stabilize drinking volume ,dose medicine , wash sediment
Water pipe and nipple drinkers and drip cup	1. Water pipe : transparent PVC material 2. Nipple drinker: a. double-sealing structure, good seal performance and never leak water b. Chicken could freely drink from 360 degree. c. outer engineering plastic and inner stainless steel 3.drip cup :single-arm drip cup with a reasonable structure
Regulator and indicating tube	1. Regulator :stable running , high dexterity , sufficient and even liquidity . 2. Transparent indicating tube to observe the water level Poultry Days Water Level Height(mm) 1~ 7 days 50~80mm 8~14 days 80~200mm ≥ 15 days 200~350mm
Hanging system	Eeasy to adjust height of this drinking system in different poultry growth. It is very important to keep a right and appropriate height for poultry in different growth period
Seamless G.I. Water Line Supporting Pipe	more rust-resistant and longer service life compared with welded pipe

feeding capacity
broile:8-12 birds/nipple
birds in cage:12 birds/nipple
turkey:20 birds/nipple
duck:10 birds/nipple
Breeder 10 birds/nipple

Dose Technical data
Flow rate:10 L / h - 2.5 m3/h
Working pressure :0.3bar-6bar
Dosing rate:0.02L / h - 50 L/ h
Maximum working temperature :40ºC
Adjustment ratio:0.2% to 2%(1:500-1:50)
Connecting size:external thread G3/4
Water flow: 0.45L every other 'kata'click sound

Any more information needed , pls feel free to contact with grace

Qingdao Super Herdsman Machinery Co., Ltd. is located in Qingdao City, Shandong Province, China. The company takes promoting advanced husbandry equipment, improving the industry healthy and sustainable development as its own duty, focusing on the development and using of livestock and poultry machinery.

As a professional manufacture of the poultry house equipment, the company combines product development, project designing, installation and after sale service together to provide a comprehensive service. Our main products cover the environment control system, automatic drinking system, automatic feeding system, cooling pad system etc. The rich products line can meet different requirements of customers, and can provide customized services according to the special needs. The company can provide international advanced level ground feeding and cage feeding equipments for broilers, breeders and layers.

The company's products sell well all over the Chinese market. We have established good strategic partnership with COFCO group, Chia Tai Group, Liuhe Group, WENS Group and Huadu Group, and our products have been exported to more than 30 countries and regions in Central Asia, South Asia, the Middle East, Africa and so on. Our Perfect sales and after-sales service network, not only provides the customers with first-class products and also provides professional and thoughtful technical services.

Keep moving forward, even a far destination will be arrive. We are willing to cooperate with you for a beautiful future.
