Product Specifications
| Prod Model: |
XFL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic Grade: |
Automatic |
| Driven Type: |
Electric |
| Packaging Material: |
Film |
| Material Type: |
Grain |
| Applicable Industry: |
Medical |
| Application: |
Granule Product |
| Packaging Type: |
Bags |
Product Description

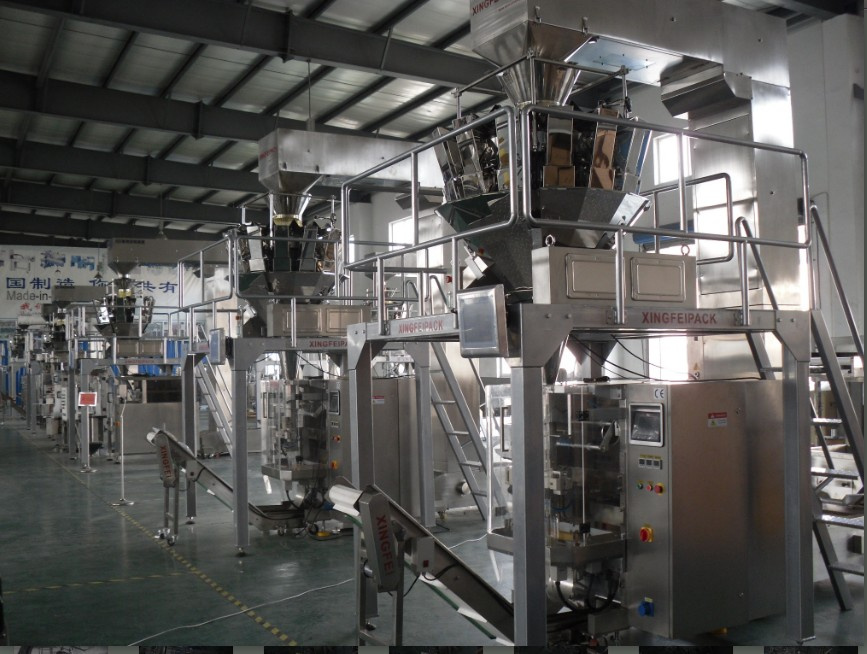

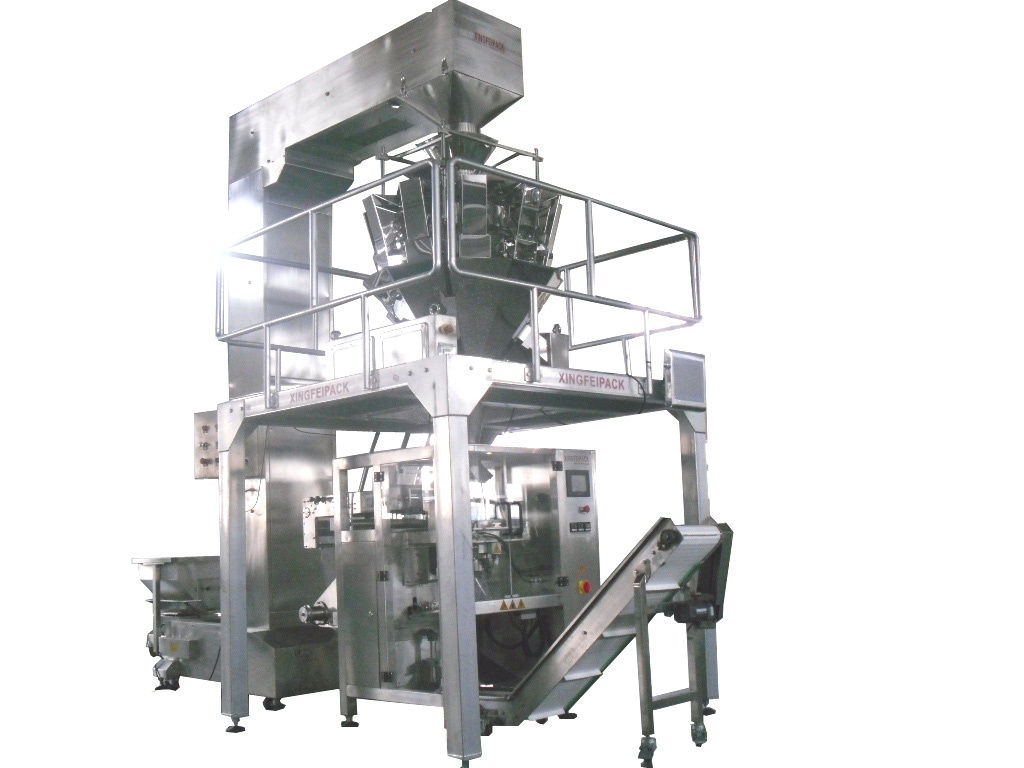

XFL Automatic Vertical Weighing and Packing Machine
Automatic packaging machineryI. Machine list in this system
---Vibrating feeder and Z type lifter
---10 head weigher
--Main packaging machine
--platform
--- finish product conveyor
II. Feature: The system will finish all the process automatically: Feeding, dosing, filling, sealing, date printing and finish product conveying. It has the advantages of high accurate weighting, high efficiency without broken material.
III. Range: The machine is suit to pack anomalous solid and the granule material, such as: Puff snack food, potato chips, crispy rice, jelly, candy, apple chips, dumpling, small cookie, dry fruit, melon seeds, roasted seeds and nuts, medical material, deep-frozen food, etc.
Model
|
XFL-200 packaging machine |
XFL-250 packaging machine |
XFL-300 packaging machine |
XFL-350 packaging machine |
|
Bag-making Size |
(L)80-300mm, (W)80-200mm |
(L)100-350mm, (W)100-250mm |
(L)100-400mm, (W)100-300mm |
(L)100-450mm, (W)100-350mm |
|
Packing Speed |
25-75 Bags/Min |
25-65 Bags/Min |
25-65 Bags/Min |
25-60 Bags/Min |
Power Supply |
220V, 50-60Hz,
3.0 Kw |
380-220V, 50-60Hz, 3.6Kw |
220V, 50-60Hz,
4.0 Kw |
380-220V, 50-60Hz, 4.75 KW |
|
Compressed air consumption |
6-8 kg/m2
0.15 m3 /min |
6-8 kg/m2,
0.15 m3/min |
6-8 kg/m2,
0.15 m3/min |
6-8 kg/m2,
0.15 m3/min |
|
Weight |
500 Kg |
700 kg |
800 Kg |
850 kg |
|
Dimension(mm) |
1450× 1000× 1700 |
1200× 1450× 1800 |
1200× 1500× 1950 |
1250× 1500× 2000 |
Shanghai Xingfei Packaging Machinery Co., Ltd., is a professional manufacturer engaged in the research and development of packaging machinery and food machinery, and we are a member of the Chinese Food and Packaging Machinery Industrial Association.
Our potential customers are middle and large scale enterprises from Mainland China and International market. Our packaging machinery, food machinery, and packing production lines have been sold not only in the Mainland China but also in more than thirty foreign countries, such as the USA, Germany, the Netherlands, Canada, Australia, New Zealand, Finland, Russia, Ukraine, Kazakhsta, Thailand, Vietnam, South Africa, and other countries and regions. Based on straight-out management notion, outstanding quality products, and favorable after-sales services, we have gained extensive recognition of customers from at home and abroad and built up long-term relationships with them.
Since our establishment, we have used European and Japanese advanced experience for reference and have developed several kinds of top-grade vertical packaging machinery, horizontal packaging machinery, and packing equipment used for different granule, powder and liquid, and other assistant packaging machinery. We also can supply the layout of automatic packing processing lines. If you choose "XINGFEI", you choose assured quality.
Our company is willing to cooperate with people from all circles, developing together and contributing our ability to make the Chinese packaging machinery and food machine industry move towards the world. Moreover, people from at home and aboard are warmly welcomed to our company to give us suggestion. By the tenet of close cooperation and mutual benefits, we would like to build a new future with you.
