Product Specifications
Prod Model: |
TIV-D30 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Speed: |
>80pcs/min |
Required Paper: |
Single Side PE Coated Paper |
Certification: |
CE |
Condition: |
New |
Product Description

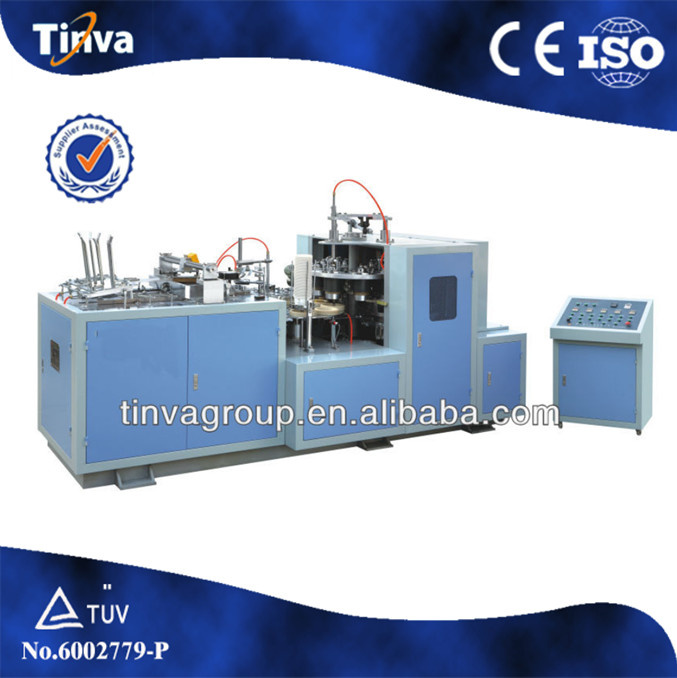

TIVD30 paper bowl forming machine, developed according to domestic specific situations, has functions of automatic paper feed, primary preheating, medium sealing tube forming, cup rabbet lubrication, bottom flushing, secondary bottom heating, bottom knurling, upper mouth hemming, water line injection, finished product stacking, photoelectric detection, fault alarm and counting, and is ideal production equipment of soup bowls, instant noodle bowls and other high-volume large-caliber bowl containers.
Technical Parameters
Model | TIV -D30 | TIV -DZ |
Specification of paper cup | 20oz-50oz | UNI-PRESIDENT 1100, 980, Master Kong 998, 460, etc. |
Paper material | Single-sided PE coated paper |
Outer diameter of cup rabbet | 50-110 | 35-70 |
Outer diameter of cup bottom | 90-140 | 50-120 |
Cup height | 70-110 | 40-95 |
Bottom depth | ≤6~12 | ≤6~12 |
Conicity | 3-8.5o | 2-8o |
Rated productivity | 30-40pcs/min |
Power supply | 380V 50Hz |
Total power | 13KW |
Weight | 2300Kg |
Packing size(L*W*H) | 3150×1580×1850mm 800×750×1300mm |
Remarks | Produce double-sided PE coated paper by ultrasonic wave |
Air Pressure Request | 0.2m3/min;0.6MPa (provided by customer) |
