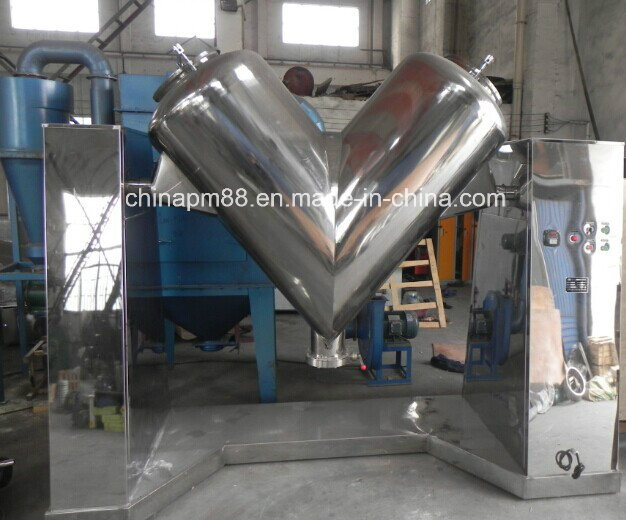

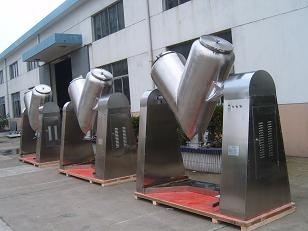

V-shell blenders are commonly used in pharmaceutical, nutriceutical, food and related industries to mix dried powder and granules.
Through mechanical transmission, the materials in the shels are made to move back and forth, crossed over and rotate 360 degree to achieve ultimate uniform mixing. Our machine is made of high quality of thick SS304(optional 316L)mirrow polished of inner and outer shell to meet the GMP standard. We offer the most affordable V-blenders in the market from laboratory to large scale production batch.
Features:
1. No blind angles in the V-shells.
2. No accumulation of materials.
3. High speed mixing bar, with efficient and short mixing time.
4. The V-shells have elegant appearance.
5. For discharging, rotating valves and rapid swivel heads are adopted.
6. Single arm V-shell blenders are available for laboratory use.
| type | Specification m3 | Max. loading
L | Rotation speed
r.p.m | Power
kw | External dimensions
mm | Net weight
kw |
| V-5 | 0.005 | 5 | 15 | 0.55 | 650×400×600 | 45 |
| V-15 | 0.05 | 15 | 15 | 0.75 | 980×380×900 | 200 |
| V-50 | 0.15 | 50 | 12 | 0.75 | 1500×560×1350 | 250 |
| V-100 | 0.3 | 100 | 12 | 1.1 | 1600×600×1450 | 290 |
| V-200 | 0.5 | 200 | 12 | 1.5 | 1910×600×1600 | 320 |
| V-500 | 1 | 500 | 12 | 2.2 | 3100×2300×3100 | 380 |
| V-600 | 1.5 | 600 | 10 | 3 | 3420×2600×3500 | 900 |
| V-800 | 2 | 800 | 10 | 3 | 3700×2800×3550 | 1000 |
| V-1000 | 3 | 1200 | 9 | 4 | 4200×2850×3800 | 1100 |
