Product Specifications
| Prod Model: |
RB6040 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Paper Thickness: |
100-200G/M 2 |
| Motor Power: |
10.35kw/380V 3phase |
| Heater Power: |
6kw |
| Automatic Grade: |
Automatic |
| Type: |
Carton Packaging Machinery |
Product Description
Specifications
1. CE, ISO9001 proved;
2.17 years production experience;
3. Stability; Power save; High speed;
Introduction:

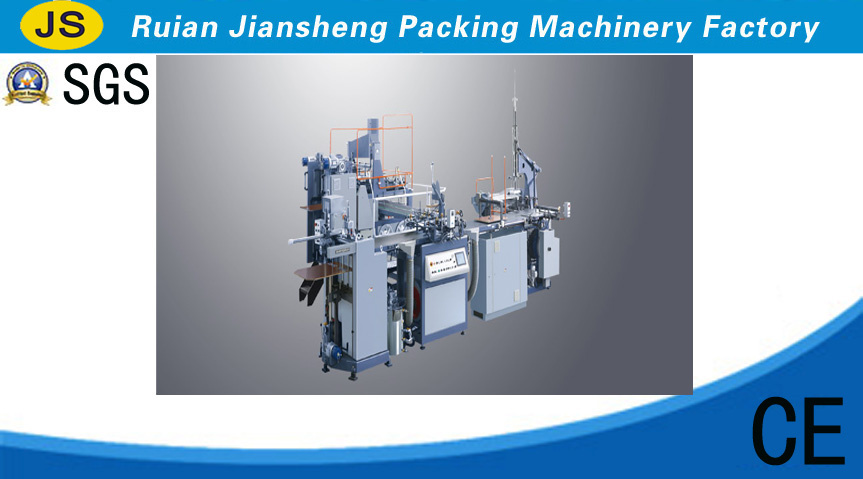

RB6040 Automatic Rigid Box maker is a good equipment for making high-grade covered boxes for its fine design, reliable performances and advanced technologies. It employs PLC, photoelectric tracking system, hydraulic web guiding system, touch screen man-machine interface to automatically finish feeding and gluing paper, conveying cardboard, forming and pasting four angles of cardboard, positioning, gluing and forming box in one time. It is applicable to make high-grade boxes for shoes, shirts, jewelry, gifts, etc.
Features:
1. Paper delivered automatically by feeder.
2. Automatic circulation, mixing and gluing system for hot-melting gel. (Optional device: Glue viscosity meter)
3. Hot-melting adhesives paper-gluing automatic conveying, slitter, and finish pasting the cardboard inner box's four angles in one process.
4. The vacuum fan under the conveyer belt can keep the glued paper from deviating.
5. The glued paper and cardboard inner box employ hydraulic web guiding device to spot correctly.
6. The box-forming unit can automatically collect boxes and deliver them to the forming unit according to the boxes conveyed on the conveyer belt.
7. The box-forming unit can continually delivery boxes, wrap sides, fold ears and paper sides and form in one process.
8. The whole machine employs PLC, photoelectric tracking system and touch screen man-machine interface to form boxes automatically in one process.
9. It can automatically diagnose the troubles and alarm accordingly.
|
Automatic rigid box maker
|
1
|
Paper size(A×B)
|
Amin
|
120mm
|
Amax
|
610mm
|
Bmin
|
250mm
|
Bmax
|
850mm
|
2
|
Paper thickness
|
100-200g/m 2
|
3
|
Cardboard thickness(T)
|
1~3mm
|
4
|
Finished product(box) size
(W×L×H)
|
Wmin
|
50mm
|
Wmax
|
400mm
|
Lmin
|
100mm
|
Lmax
|
600mm
|
Hmin
|
15mm
|
Hmax
|
150mm
|
5
|
Folded paper size (R)
|
Rmin
|
7mm
|
Rmax
|
35mm
|
6
|
Precision
|
±0.50mm
|
7
|
Production speed(max.)
|
<35sheets/min
|
8
|
Motor power
|
10.35kw/380v 3phase
|
9
|
Heater power
|
6kw
|
10
|
Machine weight
|
5800kg
|
11
|
Machine dimension
|
L6600×W4100×H 3250mm
|
