Automatic Plastic Machinery

Product Specifications

Prod Model:	YCQ-2L-8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Bottle Material:Pet:	Color:Blue and Black
Bottle Volume:150ml-2L:	Cavity:8 Cav
Output:6500bph:	Power:51kw
Driven Type:Pneumatic:	Voltage:According to Customer Request
Dimension(L*W*H) :6.3*1.6*1.9m:	Weight :5000kg
Automation:	Automatic
Making Method Of Parison:	Stretch Blow
Raw Material:	PET
Computerized:	Computerized
Certification:	GMP

Product Description

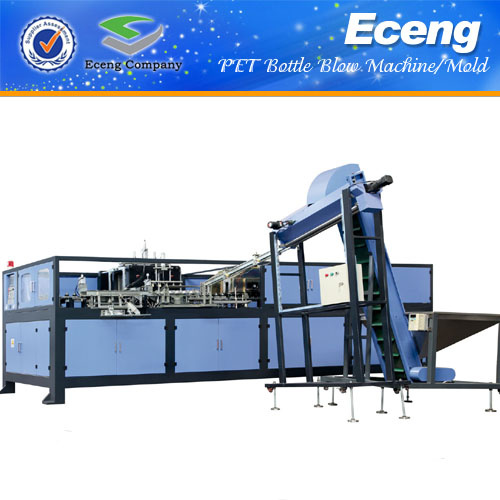

Automatic plastic machinery

MODELS: YCQ-2L-8

Description
It is can be widely used in production of mineral water, carbonic acid beverage, juice, tea and heat-resistence bottle products
1-Can be connected with filling machine directly. Saving the investment on the ordering-bottle machine.
2-Adopting high technology Micro PLC controller. Ensure the machine working properly and stable.
3-Sole heating electricity saving design.50% electricity saving comparing to the other machine.
4-Specially mould locking clamping system, 1.5 times efficiency.
5- Easy installation and starting
6- Low rejection rate: Less than 0.3percent.

Machine Parts

Blowing Cylinder ----Festo (Germany)
Moulding Closing and Opening Cylinder ---- Festo (Germany)
Value ---- Festo (Germany)
Revolve Cylinder ---- SMC (Japan)
PLC ---- Mitsubishi (Japan)
Touch Screen ----Hitech (Taiwan)
Switch ----Omron (Japan)
