Product Specifications
| Prod Model: |
FR-150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Diameter: |
150mm*T3.0mm |
| Drawing Force: |
300kn |
| Drawing Speed: |
10m/Min |
| Drawing Length: |
10m |
| Chain Pitch: |
5" |
| Chain Shafr Diameter: |
125mm |
| Height Of Entrance: |
800mm |
| Drawing Car Power: |
4kw |
| Reducer Model: |
Zq1000 |
| Motor Power: |
75kw |
| Type: |
Horizontal Metal Drawing Machine |
| Usage: |
Pipe / Bar/Tube |
Product Description

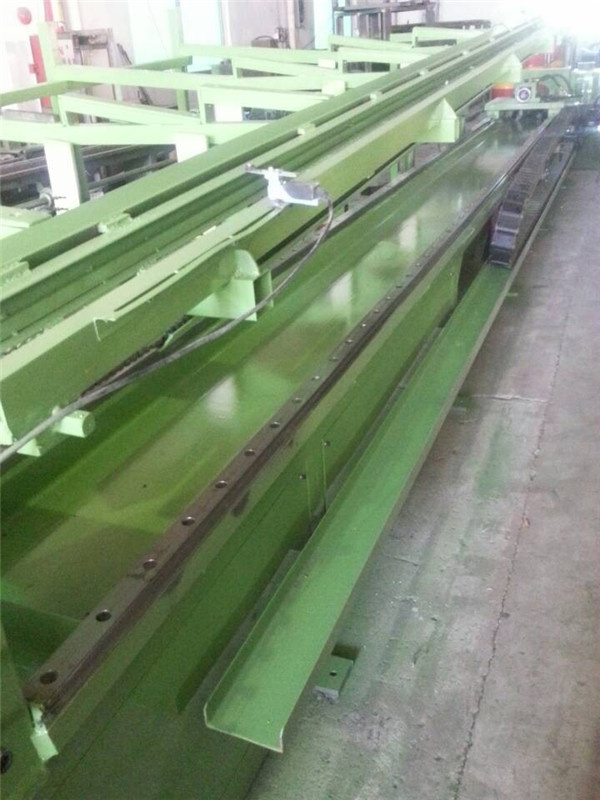

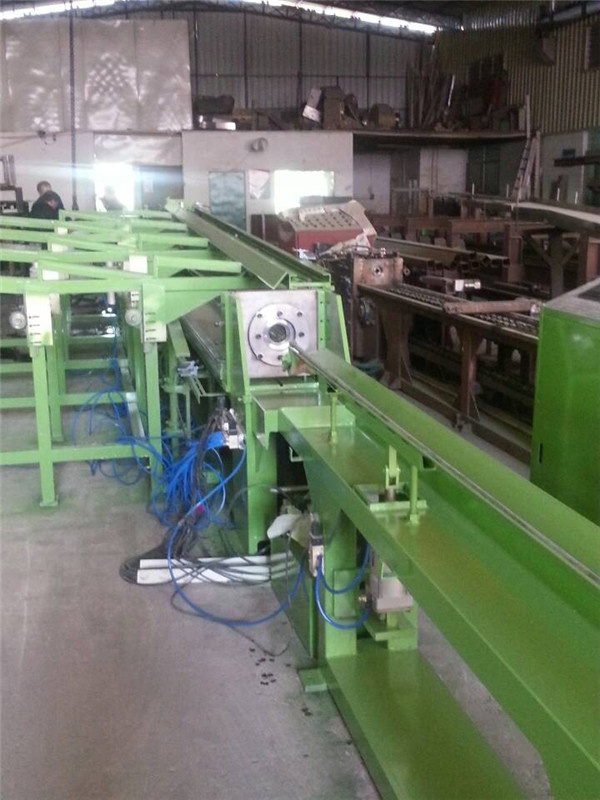

Automatic Pointing Tube Cold Drawing Machine
(FR-150)
Features: Cold tube drawing machine is reducing diameter and thickness or only reducing diameter of metal (aluminum, stainless steel, copper and iron) on tube, pipe, wire by drawing strength of the car and dies. Machines are manufactured based on customer demand.
In the normal condition of the machine, implement the tensile strength to the ferrous metal tube, it can also pull the round, hexagonal and other shaped material, which is the professional equipment for drawing tube and pipe.
With internal diameter control, it can be optional for automatic feeding device, automatic cutting, automatic blanking, drawing quantity can be one to four per time.
Also known as reduceing the diameter and thickness of the tube with a mandrel inside the tube. The inner diameter (ID) is determined by the inner and outer diameter of the stock tube, the outer diameter of the final product, the length of the die landing, the amount of back tension, and the friction between the tube and the die. This type of drawing operation is the most economical.
| Manner of drawing | Only accessing one piece material |
| Max diameter | 150mm *T3.0mm |
| Drawing force | 300KN |
| Drawing speed | 0-10m/min |
| Drawing length | 10m |
| Chain pitch | 5" (Taiwan brand) |
| Chain shafr diameter | Φ125mm |
| Height of entrance | 800mm |
| Drawing car power | 4KW |
| Reducer model | ZQ1000 |
| Electric power | 380V 50HZ-60HZ |
| Motor power | 75KW |
| Dimesion | 23000*1500*1600mm |
Dong Guan Fang Rong Machinery Factory, founded in 2000, is a professional manufacturer that integrates development, production and sale. Fang Rong is special in production thread processing equipment and precision cold drawing machines. In 2005, Fang Rong factory passed the ISO9000: 2001 quality system certification, and received a number of patents. Now, Fang Rong is developing and selling various machines, such as
1) Thread processing equipment:
A, thread rolling machines (rolling machines)
B, threading machines (air pressure, hydraulic)
C, thin tube rolling machines (lamp rolling machines)
D. The whole tooth machines
E. Tapping machines of six-axis
2) Precision cold-drawing equipment:
A, drawing machines,
B, straightening machines,
C. Pointing machines
Over the years, our goal has been to create professional and classic equipment, first-class products and best service to achieve product specialization, service professional and team specialization. After through Fang Rong people's unremitting efforts, our products are very popular at home and abroad. The prime quality and the best service are confirmed and recognized by customers in China and abroad.
