Product Specifications
| Prod Model: |
SWG-1/SGW-2/SGW-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

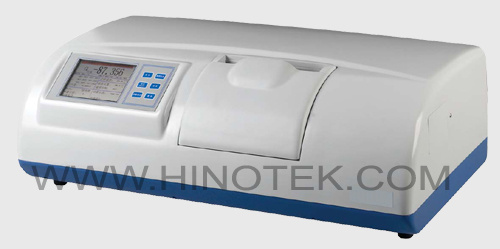

SGW Series Automatic Polarimeter use LED source light to avoid change the lamp frequently. The measure range of SGW-3 can reach ± 89º (Optical rotation), SGW-3 & SGW-3 has Peltier principle to control the temperature. Intrument use big color touch LCD which can supply friendly interface.
Features:
1. Don't need preware while turning on
2. Measuring specific rotation, optical rotation, sugar degree and concentration.
3. Automatic repetition-measurement for 6 times, and calculation of average value and means square root.
4. Peltier principle to control the temperature (Only SGW-3 & SGW-2).
Sample chamber adopts constant temperature designing in order to decrease the temperature heating effect durning meansurement. (Only SGW-1).
5. Measurement of dark-colored samples.
6. USB connector (SGW-3) or USB & RS232 (SGW-2 & SGW-1).
|
Spec: |
|
|
SGW-3 |
SGW-2 |
SGW-1 |
|
Measure MODE |
specific rotation, optical rotation, sugar degree and concentration. |
|
Light Source |
LED+interference filter |
|
Operation Wavelength |
589.3nm |
|
Measure Range |
± 89º(±257ºZ) |
±45 º(±120ºZ) |
±45 º(±120ºZ) |
|
Minimum Indicating Value |
0.001 º(0.01ºZ) |
|
Accuracy |
a) ±0.01 º(-15º
|
|
b) ±0.02º(Optical Rotation>+15º or <-15º) |
|
Repeataility |
0.002 º (Optical Rotation) |
|
Temperature Control Range |
15~30 º C |
18~30 º C |
NO |
|
Accuracy |
±0.5 ºC |
±0.5 ºC |
NO |
|
Display |
Touch Screen (9cm*12cm, 320*240 Resolution) |
|
Test Tube |
200mm, 100mm |
|
The lowest penetration rate for the measurable samples |
1% |
|
Connector |
USB |
USB, RS232 |
USB, RS232 |
|
Data store and Readout by flash disk |
160 groups |
NO |
NO |
|
Optioanl Accessories |
Micro Test Tube (50mm) (Optional) |
