Product Specifications
| Prod Model: |
QDASY-A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Qdasy-a |
| Speed: |
150m/Min |
| Color: |
1-12 |
| Printing Width: |
600-2000mm |
| Material: |
BOPP,Pet,Pve,PE,Paper,Cellophane,Aluminum |

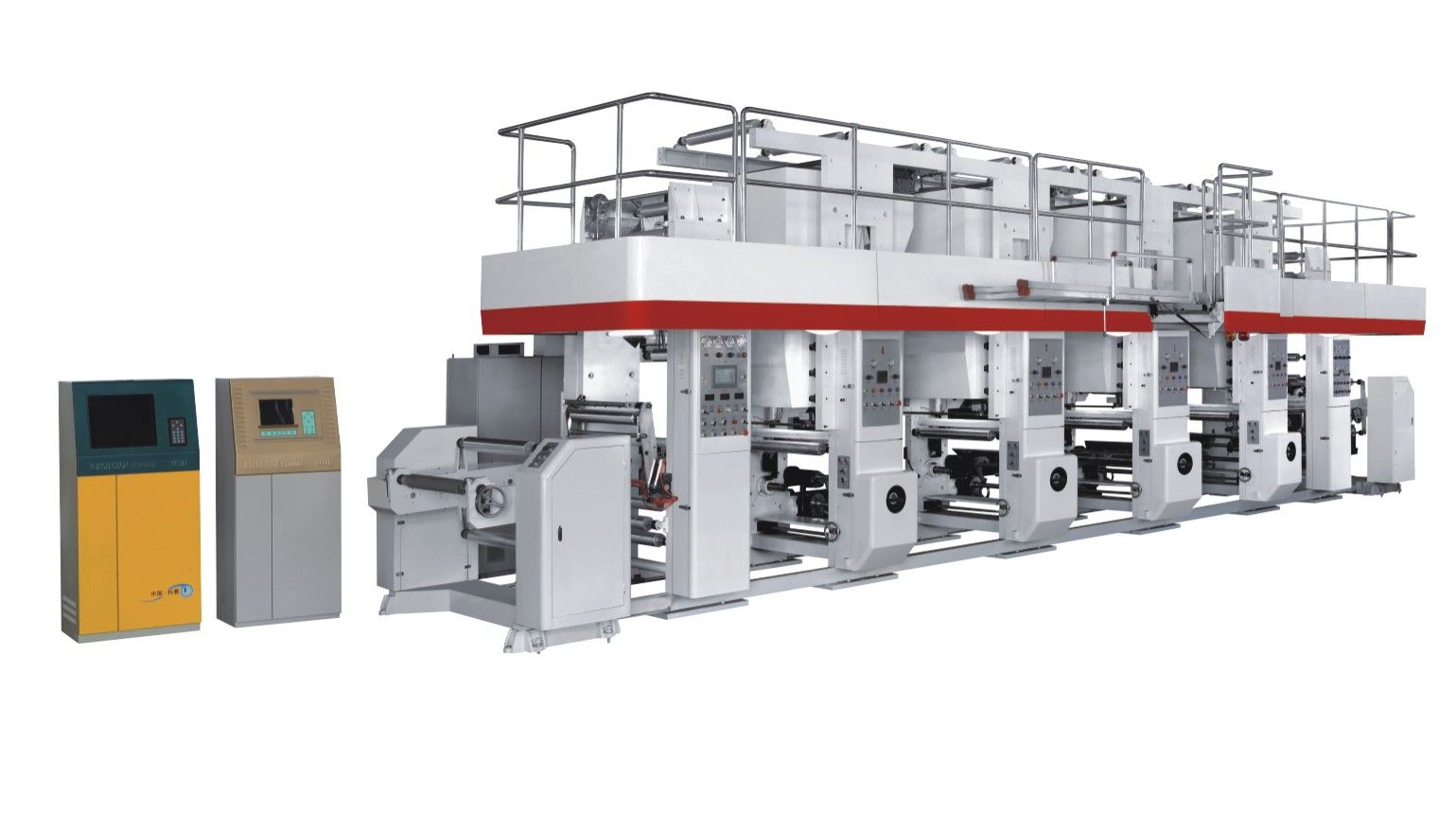

Product Description
USE:
This machine is suitable for continuous multi-color printing or rolling material in good performance, such as cellophane, BOPP, PET, PVC, PE, Aluminum foil, Tobacco paching, yew paper, Liquid paper box and rolling paper (30-300G/M2)
FEATURE:
1. Adopting frequency vector conersion motors control the main motor, unwinding and rewinding, and tension of them. (five motors controlled)
2. Lengthways and transverse accuracy are controller by the full automatic registering device, as well as the advane lengthways accuracy funtiong.
3. Stil graphics reveal system is instaled.
4. Non-shaft pneumatic conic node printing plate loading, prompt and convenient printing plate when change.
5. Sealed hot wind circulationg oven, automatic constant temperature, diesel oil air-stove or electrical heating for the drying methods.
6. Pneumatic draw knife, single motor controls the moving way, the moving frequency is adjustable.
7. Holistic moving oil frame, turning the ink in the barrel with the rubber rollers, pneumatic pump circulation.
8. High accuracy gear transmission box, adopting patented technique.
9. Unwinding and rewinding both worked by the dual-station mechanism, realizing auto material change without machine halt at high speed, adopting the neumatic rollers for the draw in and out.
10. Adopting the wind blower.
11. Less transmutation material, warm-up oven drying the material before printing.
Model
|
QDASY-A800
|
Printing length
|
377 -1130mm ( ¢ 150- ¢ 350mm )
|
printing width
|
600 ,800 ,1000mm
|
printing speed
|
10 -150m /min
|
Diameter of unwinding and rewinding
|
¢ 1000mm
|
Accuracy of registration
|
± 0.12mm
|
Oven length
|
2000mm
|
Oven heating
|
Elctric heating/Fuel hot-blast store
|
Main motor
|
135KW
|
Total power
|
180KW
|
Weight(Four colours)
|
30000Kg
|
Overall dimension
|
19000mm × 4200mm × 3600mm
|
Our company was founded in the 1980 s. Do poineering work up to now, we are dedicated to make better performance, better quality printing machinery products. After decades of unremitting efforts, our professional manufacturing technology has been matured, and jump in the same industry leading position. We have deep recognition in the industry with quite a reputation.
Today, our main products include many kinds of different printinmachine, laminating
Machine, slitting machine, etc. Our products has passed the international ISO9000 and ISO9001 certification. Our products have been exported to southeast Asia, India, Middle East, Russia, South America, Africa, Oceania, the United States and other dozens of countries and regions, favored by countries customers friends.
