Product Specifications
| Type: |

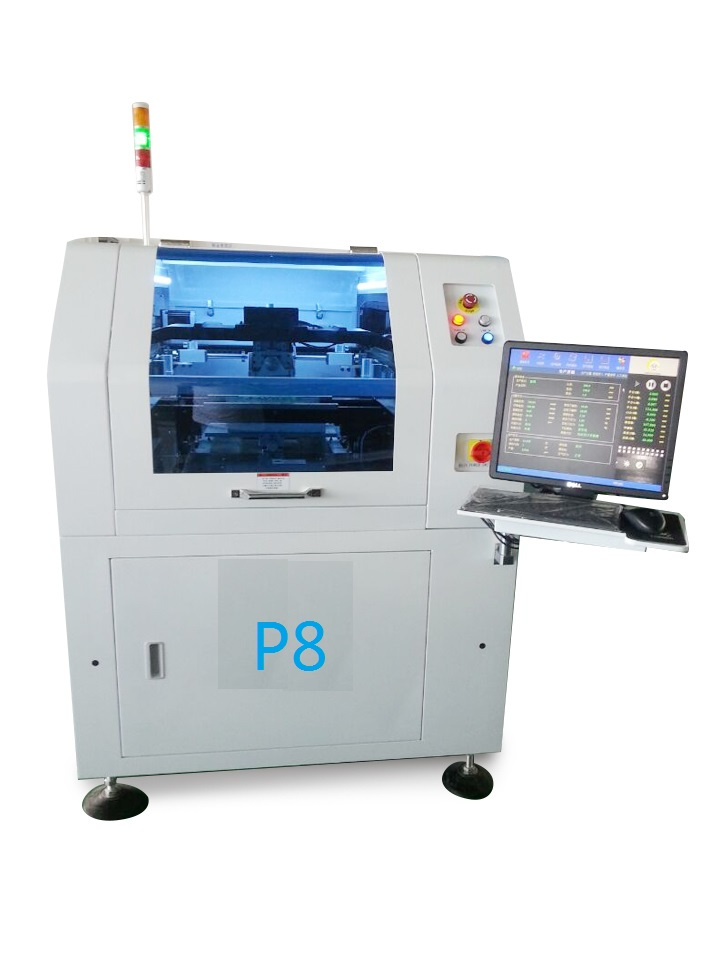

Automatic Screen Printing Machine |
| Style: |
Screen-process Printing Press |
Product Description
| |
| |
| (Repeat Position Accuracy) | ±0.01mm() |
| (Printing Accuracy) | ±0.02mm() |
| /(Cycle Time) | <7s (Exclude Printing & Cleaning) |
| (Products Changeover) | <5Min |
| /(Screen Stencil Size/Min) | 470mm X 370mm |
| /(Screen Stencil Size/Max) | 737mm X 737mm |
| /(Screen Stencil Size/Thickness) | 20mm ~ 40mm |
| PCB/(PCB Size/Min) | 50X50mm |
| PCB/(PCB Size/Max) | 450X320mm |
| PCB/(PCB Size/Thickness) | 0.6~6mm |
| PCB(PCB Warpage Ratio) | <1%() |
| (Bottom of Board Size) | 10mm |
| (Edge of Board Size) | 3mm |
| (Transport High) | 900±40mm |
| (Transport Direction) | -;-;-;- |
| (Transport Speed) | 100-1500mm/sec |
PCB
(Board Location) | (Support System) |
| (Clamping System) |
| (Print head) | , |
| (Scraper Speed ) | 10~150mm/sec |
| (Scraper Pressure) | 0-15kg |
(Scraper Angle)
(Scraper Type) | 60°(Standard )/55°/45° | ///() |
| () , | /Z(,) |
| (Stencil Separation Speed) | 0.01~10mm/sec |
| (Cleaning Method) | ,,() |
| (Table Adjustment Range) | X: ±4mm;Y:±6mm;θ:±2° |
| () | ,/ |
| (Camera System) |
|
| (Air Pressure) | 4~6Kg/cm2 |
| (Air Consumption) | 0.07m3 /min |
| (Control Method) | PC Control |
| (Power Supply) | AC:220±10%,50/60HZ 1Φ 2.5KW |
| (Machine Dimensions) | 1400mm(L) x 1200mm(W) x 1450(H)mm(,) |
| (Weight) | Approx:1000Kg |
| (Operation Temperature) | -20°C ~ +45°C |
| (Operation Humidity) | 30%~60% |
| 1. software() | Name |
| (control system) | Windows XP Professional (Service3,v.3244) |
| (operation interface) | Windows XP |
| (programming) | Online |
| (vision system) | High accruate CCD |
| (vision system) | v1.0.2 |
| 2. Hardware() | Name |
| CCD( CCD camera) | TOSHIBA |
| ( Screw) | HEITIAN |
| ( Guide) | HIWIN / |
| ( Servomotor) | panasonic |
| I/O(I / O control card) | solid PCI |
| ( Motion Control Card) | /GTS/PCI |
| ( Industrial host) | (RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/2G DDR/500G/DVD-ROM) |
| ( Monitor) | DELL MONITOR Logitech mouse |
| ( Control accessories) | SIMENS(SMC |
| 1111 |
