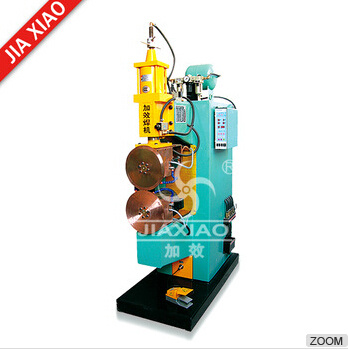

Automatic Seam Welding Machine

Name: Automatic Seam Welding Machine
Brand: China-Manufacturer-Directory.com
SKU: 737881865
Availability: InStock
Rating: 4.5 (49 reviews)

Supplier:	Yongkang Jiaxiao Electric Welding Automation Equipment Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	FN series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Seam Welders
Current:	Alternating Current

Product Description

Automatic straight seam welding machine

Novel structure, Special design, CE certificate

Specifications

1. Microcomputer constant pressure control system, twice section discharge,

2. Water-transformer, water-controlled silicon

FN Series Automatic Seam Welding Machine, Rolling Seam Welding Machine, rolling seam

Welder, resistance seam welder, Machines Characteristics

1. Adjustable stroke cylinders and flow controls use to minimize damage to the welding wheels and the welded part.

2. Wheels are driven by 3-phase stepless motor for smooth speed adjustments and full control of linear velocity

3. Longitudinal and Circumferential welders are used for multitude of part configurations.

4. Unique design of the welding heads makes sure that timing in between maintenance cycles is greatly increased

5. Silver contacts used in the welding head design reduced losses and dramatically increased performance

6. Both types of machines are used in drums, can making along with automotive and other applications.

Model NO.	FN-35	FN-50	FN-75	FN-100	FN-150
Rated primary voltage	380V	380V	380V	380V	380V
Rated capacity	35KVA	50KVA	75KVA	100KVA	150KVA
Rated primary current	95A	135A	200A	265A	400A
Secondary no load voltage	5.3V	6.0V	6.3V	7.0V	7.5V
Adjust method	electrodeless adjust
Duty cycle	50%	50%	50%	50%	50%
Max. welding thickness(mm)	0.5+0.5	0.8+0.8	1.0+1.0	1.2+1.2	1.5+1.5
Max. force electrodes	3000N	3000N	4700N	6100N	10000N
Throat depth	Negotiation
The distance of the electrodes	Negotiation
Welding speed	2m/min	2m/min	1.5 m/min	1.5 m/min	1.5 m/min

Yongkang Jiaxiao Welding Automatic Equipment Co., Ltd was established 20 years ago, which is specialized in the R&D, manufacture, selling and after sale services of all kinds of general resistance welding machines and automatic welding machines. The main products of our machine has passed the 3C and CE certification. Our company is a production base of special welding machine in domestic and over seas with leading skills in this field. The company adopts ERP as the management system achieving standard operation, streamlined work and management.

Jiaxiao company=special welding machine manufacturers!
