Automatic Seeds Granule Packing Machinery
Product Specifications
| Prod Model: |
ND-K40/150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
60-90bags. Min |
| Condition: |
New |
| Contact Part: |
Sus304 |
| Controlling System: |
Mechanical |
| Packing Material: |
Composite Material |
| Power: |
220V 50Hz |
| Delivery Time: |
15 Days After Getting Payment |
| Automatic Grade: |
Automatic |
| Application: |
Oil |
| Driven Type: |
Mechanical |
| Material Type: |
Grain |
| Packaging Material: |
Composite Materials |
| Forming Function: |
Forming, Filling, Sealing |
| Packaging Type: |
Sachet Bag, Stick Bag, Pouch Bag, Vertical Bag |
Product Description
ND-K40/150 3 Sides or 4 Side Small Granule Packing Machinery
1.ND-K40/150 is Small Granule Packing Machinery,the machine finish bag
making,measuring, filling, sealing,coding and counting full automatically.
2.The packing material is heat seal-able rolled packing film,the cost is
lower.
3.Measure with volume cups, with 1% error, the bag former and vertical/horizontal sealing
finish bag forming.
4.Suitable for packing granule product for 5-40ml bag packing.
5.4000 bag/hour,good labor and power saver.Granule Packing Machine K40/150 | Features
1.Computer control, intelligent temperature control system, color mark tracking device.
2.The mechanical structure rational, the main machine speed is controlled by worm gear
motor and frequency converter, easy to adjust speed.
3.Low noise, stable system, simple operation.
4.Double heating tubes, the temperature more average, to make more perfect bag.
5.All the contact part of the packing machine is made from SS304, clean and safe, easy for
cleaning.
6.Suitable for packing sugar, cream, coffee, medicine, chemical articles, for 3 side sealing
and 4 side sealing bag.
7.This model got higher speed, technology very mature, the continuous running make it
very high efficiency.Granule Packing Machine K40/150 Material & Samples:
Granule Packing Machine K40/150 | Parameters| Type | Bag Length(mm) | Bag Width(mm) | Packing Speed(Bag/hour) | Measuring Range(ml) | Voltage Power | Weight(kg) | Size(mm) | Sealing Methods |
| ND -K40 | 55-110 | 30-80 | 2100-4800 | 5-40 | 220V/50/60Hz/1.8Kw | 300 | 850*700*1550 | 3 /4 Sealing |
| ND -K150 | 80-150 | 30-80 | 2100-4200 | 30-150 | 220V/50/60Hz/1.5Kw | 300 | 850*700*1550 | 3/4 Sealing |
| ND- K320I | 40-160 | 15-150 | 3000-5400 | 5-300 | 220V/50/60Hz/2.0Kw | 300 | 950*700*1800 | Pillow sealing |
| ND- K320II | 40-160 | 15-150 | 3000-5400 | 5-300 | 220V/50/60Hz/2.0Kw | 320 | 950*850*1900 | 3 Sides sealing |
| ND-K320III | 40-160 | 15-150 | 3000-5400 | 5-300 | 220V/50/60Hz/2.0Kw | 350 | 950*850*1900 | 4 Sides sealing |
| ND-KH320 | 40-100 | 40-100 | 3000-5400 | 50-200 | 220V/50/60Hz/2.0Kw | 350 | 950*850*1900 | triangle shape |
| ND-K398 | 30-320 | 70-210 | 1800-3600 | 100-1200 | 220V/50/60Hz/1.8Kw | 350 | 1200*900*2000 | Standard pillow bag |
| ND-K398VL | 30-320 | 70-210 | 1800-3600 | 100-1200 | 220V/50/60Hz/1.8Kw | 350 | 1200*900*2000 | Standard pillow bag |
| ND-K398EL | 30-320 | 70-210 | 1800-3600 | 100-1200 | 220V/50/60Hz/1.8Kw | 350 | 1200*900*2000 | Standard pillow bag |
| ND-K420 | 80-300 | 50-200 | 300-3000 | Max 1200 | 220V/50/60Hz/2.2Kw | 540 | 1320*950*1360 | Pillow bag/Gusset bag/Box bag
Pillow bag with punch hole
Gusset bag with punch hole |
| ND-K520 | 100-400 | 80-250 | 300-3000 | Max 3000 | 220V/50/60Hz/4.0Kw | 600 | 1150*1795*1650 |
| ND-K720 | 100-480 | 180-320 | 300-3000 | Max 6000 | 220V/50/60Hz/5.0Kw | 900 | 1320*950*1360 |
Optional Accessories: Volume Cups Bag Former Coding Machine
Finish Product Conveyor Feeding Machine Metal DetectorGranule Packing Machine K40/150 | Why Choose Us
1.8 years manufacture experience,strong R&D department.
2.Exported to more than 1000 customers from more than 50 countries.
3.We promiss machine keep working over 10 years in good working condition.Fewer
easy broken parts,easy to change.
4.Intelligent PLC control system,easy operate,more hommization.
5.One year guarantee time,lifelong free service,24 hours online service.
6.High output 3000-5000 bags/hour,save energy & labor.
7.OEM,ODM and customized service.
8.CE ISO BV GMP certificates.

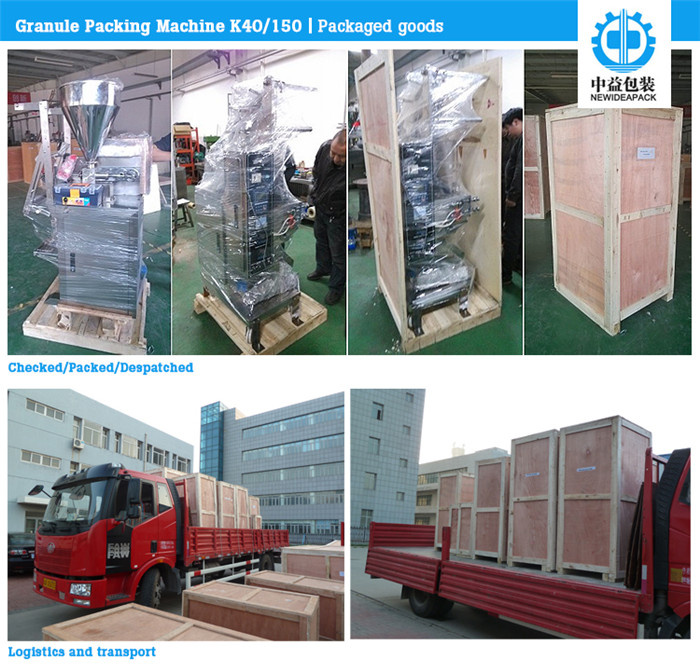

Machine packing inside is plastic films and outside is fumigation wooden case.Longtime Cooperation Needed Newidea is still developing,and the products are also being innovated.Welcome our old
and new customers to visit our factory and make the consultation.We will provide
professional packaging solutions for you.
Tianjin Newidea Machinery Co. Ltd was established in 2006, located in Tianjin High-Tech Industrial District, Tianjin, China, about 120 kilometers away from Beijing Airport. Since Newidea was established, we are engaged in improving the quality of the bag packaging products. We aim at making the environmental and healthy bag package. Through 6 years developing, Newidea has become a professional supplier for packing machine from researching, manufacturing to selling.
According to the type of the machine, our products include mini packing machine and the automatic packing system line, consisting of five series products, granule packing machine, powder packing machine, paste packing machine, liquid packing machine, tea packing machine. The machines are suitable for food industry, medicine industry, chemical industry, hardware industry etc. Which need the bag packaging. In food industry, such as packing coffee, sugar, tea, snacks, ketchup etc. In medicine industry, such as packing tablets, particles etc. In chemical industry, such as packing shampoo etc. In hardware industry, such as packing rivets etc.
Relying on our professional technique development, strict assembling team, and perfect after-sales service, we have successfully exported our products to more than 40 countries and win much more reputation from our customers. Till now, we had ever served more than 300 customers and had build up the distribution net in Eastern Europ, MID-East, MID & North America etc. We believe that the responsibility of our Newidea People pass on the value of honest operating business.
Newidea is still developing, and the products are also being innovated. Welcome our old and new customers to visit our factory and make the consultation. We will provide our professional packaging solutions for you
