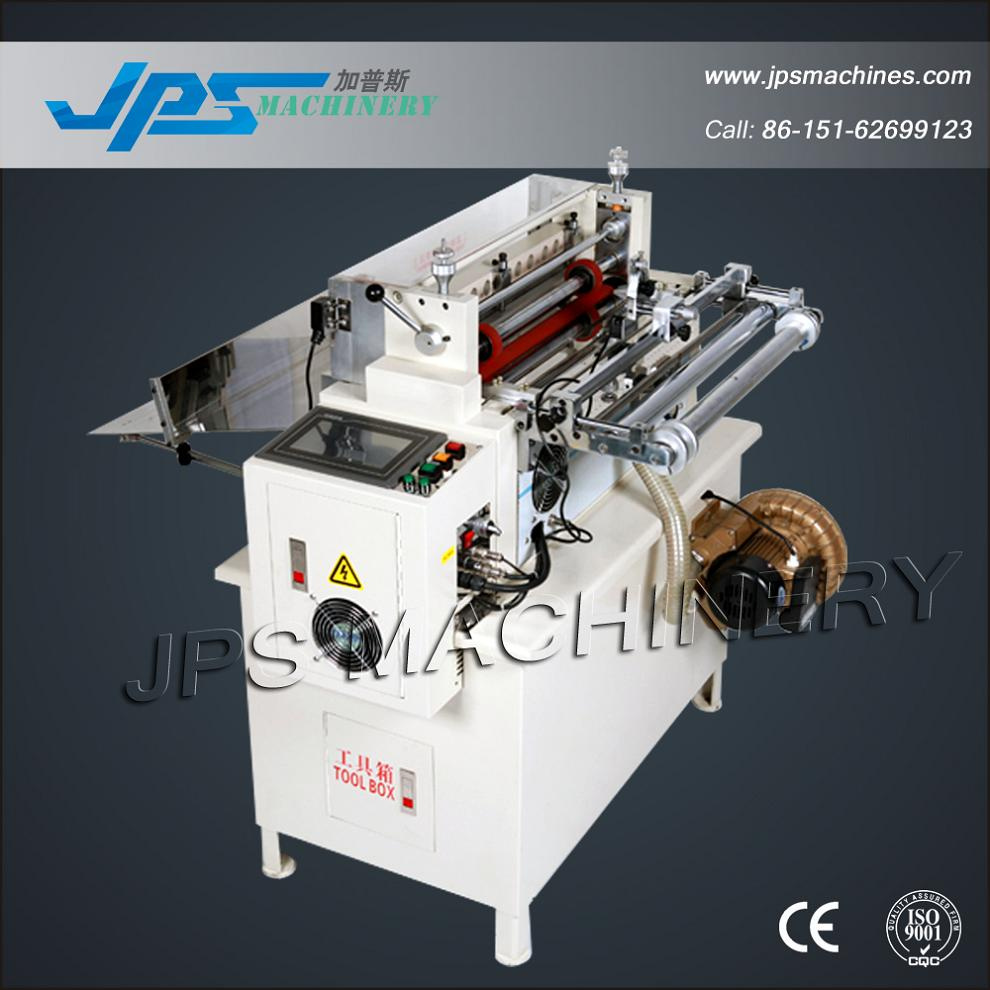

JPS-360D/500D Automatic Self-adhesive Printed Label Cutter With Photoelectricity Marking Sensor + Suck DeviceApplication:Sizing cutting for printed material,conductive fabric, foam , diffuser, reflector film, double-sided adhesive tape, nickel plate, PET,PC,PE insulation paper copper /aluminum foil and all kinds of adhesive tapes.
Feature:This machine employs man-machine + PLC system equipped with pneumatic device, adding import photoelectricity eyes and suck device, to avoid accumulative error. marking and cutting , Which will improve cutting efficiency, High precision, low loss, easy operation.
Main technical parameters:| Model | JPS-360D |
| Voltage | 220/380V |
| Power | 1HP |
| N.W. | 260kg |
| GW. | 280kg |
| Cutting Length | 0.1~9999.9mm |
| Cutting Width | 1~360mm |
| Measurement | 780x920x1070mm |
Main functions of belt cutting machine:1. Feed material and return material by pressing the button on touch screen
2. Automatic colour tracking , automatic cutting after tracking
3. Preset total cutting quantity
4. Preset cutting length
5. Preset cutting speed
6. Preset cut quantity each time ( applied for hot cutting)
7. Flash cutting quantity finished
8. Half cut-off with multi-cut
9. Full cut-off with one-cut
10. Five different cutting length can be set
11. Different cutting quantity and circulation time can be set
12. Return to ZERO
After-service:1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory
JPS-360D/500D Automatic Self-adhesive Printed Label Cutter With Photoelectricity Marking Sensor + Suck Device ------- Configuration
JPS-360D/500D Automatic Self-adhesive Printed Label Cutter With Photoelectricity Marking Sensor + Suck Device -------- Version
JPS-360D/500D Automatic Self-adhesive Printed Label Cutter With Photoelectricity Marking Sensor + Suck Device -------- Application
Kunshan Jiapusi Machinery Co., Ltd focus on manufacturing, developing, marketing and exporting label flexographic printing machine, die cutting machine, slitting machine, sheeting machine, laminating machine and paper cup printing machine, punching machine and forming machine. Our machinery are widely applied in various label and paper cup printing and production ( such as: Paper cup, clothes trademark, the label of electronics, toys, gifts, stationery and the supermarket barcode).
Our company owns experienced teams including professional technicians, engineers, sales and after-sales service personnel, to supply customers one whole set of complete technical support and after-service, as the continuous improvements of the company, the products have come up to advanced world standard, Adhering to the mission of "Value-create for customer, Technology-first, Quality-guarantee, Integrity-centered ", the enterprise will always supply customers high quality product and perfect service.
All our products are under CE and ISO9001: 2000 certification, which are sold well all over the world, such as North America, South America, Asia, Middle East, Oceania, Africa^. ., our enterprise has got high popularity with its top quality and excellent credibility, we hereby sincerely welcome your cooperation to create mutual benefits together.
