Product Specifications
| Prod Model: |
YLf-50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wash Type: |
Multielement Type |
| Function Of Washing: |
Automatic Regular or Mannual Washing and |
| Inlet: |
Dn50 |
| Outlet: |
Dn50 |
| Flow Rate: |
70t/H |
| Motor: |
0.18/1400 |
| Filter Precision: |
3500-200 Micron |
| Usage: |
Water Treatment |
| Motive Force: |
Electric power |
| Certification: |
SGS |
| Type: |
Brush Type |
Product Description

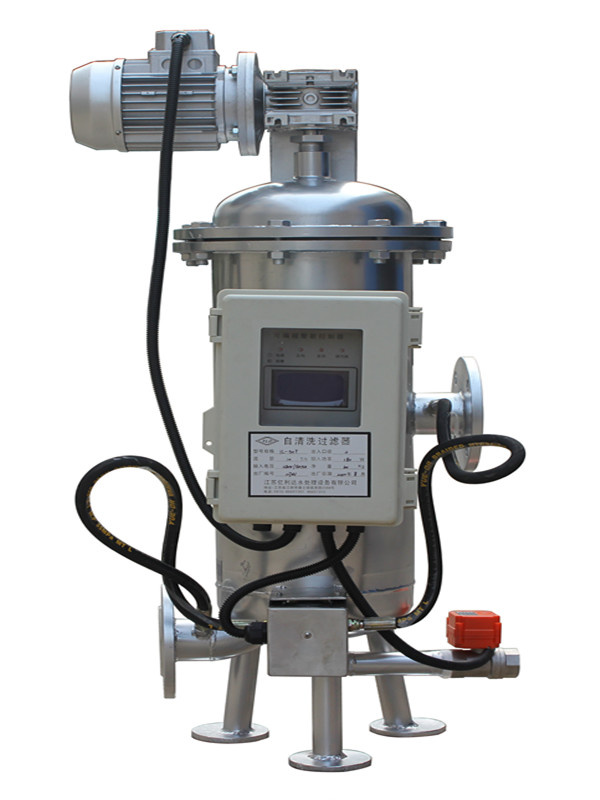

Automatic Self Cleaning Filter for Irrigation System
Structure and principle
Automatic brush filter, whose internal structure is composed by 304 stainless steel brush, stainless steel strainer cleaning and other main structure parts. The drive motor and the electric valve automatically finish cleaning and sewage discharging, The operation mode is automatically (or manual operation),with the functions of pressure difference and automatic blow down .The automation component adopts nowadays the most advanced and reliable PLC programmable controller in the world .
When water flows through the filter ,mechanical impurities in water will be intercepted by filtration screen ,when the poly impurity on filter surface area increases and the pressure reaches 0.04MPa,pressure difference switch will send a signal,At the same time, PLC will send out instruction,driving motor start and sewage valve open, Discharge valve to open, is deposited on the filter of impurities are rotating brush down,From pollution discharge outlet,The scrubbing sewage process without the operator, without stopping.meanwhile,The device is also provided with a timing cleaning sewage and manual cleaning draining function,Ensure that in any case the water safety.
| Model | Flow
(T/h) | Inlet and outlet diameter
(mm) | Drainage diameter
(mm) | D
(mm) | H
(mm) | H1
(mm) | H2
(mm) |
| YLF-50 | 70 | DN50 | DN50 | 300 | 1690 | 265 | 640 |
| YLF-80 | 80 | DN80 | DN50 | 350 | 1720 | 265 | 660 |
| YLF-100 | 120 | DN100 | DN50 | 400 | 1760 | 265 | 680 |
| YLF-200 | 200 | DN200 | DN80 | 500 | 1860 | 290 | 715 |
| YLF-250 | 280 | DN250 | DN80 | 600 | 1930 | 290 | 755 |
| YLF-300 | 450 | DN300 | DN100 | 700 | 2040 | 335 | 755 |
| YLF-350 | 600 | DN350 | DN100 | 800 | 2105 | 335 | 770 |
| YLF-400 | 800 | DN400 | DN100 | 1000 | 2220 | 335 | 800 |
| YLF-500 | 1000 | DN500 | DN100 | 1200 | 2360 | 365 | 825 |
Jiangsu YLD Water Processing Equipment Co., Ltd. is a high-tech enterprise, specialized in the research, development, design, manufacture, installation, technical consultation and personnel training.
We mainly produce electronic scale removal, UV sterilization, filtration, softening and cyclone grit removal technology and equipment. With strong technical force and rich experience, our company strictly implements ISO9001 system in the plan and management. "High technology leads to market development" is our basic concept.
We have extensively cooperated with domestic key universities, research institutions and foreign professional manufacturers, such as DOW (Dow) Chemical Co., Ltd., HYDRANAUTICS (Hydranautics) Company, Company (a professional manufacturer of multi-stage pumps), MILTONROY (Milton) Corporation (a metering pump manufacturer), the US Soft Controller KINETICO and OSMONICS, We have also fully introduced advanced technology. Thus, our technology is always in the leading domestic level. Over the years, our company has specialized in a variety of water treatment equipment for food, beverage, pharmaceutical, hospital, precision electronic, fine chemical, electricity, painting and surface cleaning industries.
Our "LYD" high-quality products at reasonable prices and perfect after-sales services have won great trust from worldwide customers,
We are willing to cooperate with the friends from all over the world and creat fine future together!
