Automatic Self-Cleaning Scraper Filters for Viscous Chemical Liquids

Automatic self-cleaning scraper brush filters
Automatic self-cleaning filters
Automatic self-cleaning scraper brush filtes are suitable for high-solid content, fibrous impurities, higher viscosity fluid filtration.
Structure and working principle: Automatic self-cleaning scraper brush filters conclude a motor reducer, filter shells, filters, scraper scraper brush combined cleaning system, PLC controller and electric sewage valve parts. Material medium through the feed inlet into the filter, from the inside to outside, through the filter space filtering, the filtered raw material out of top-down flow of the lower mouth, larger than the filter between the impurities are retained down, filter components to run a certain time, filter impurities space has been blocked, pressure to achieve pre-set value of the time, PLC to monitor and issue commands to the signal from the deceleration motor driven rotary scraper, self-cleaning filters on the dirt attached to maintain filter filtering filters flow gap; Filter impurities at the bottom of an increase, as long as cutting open the bottom of the slag, impurities will be discharged smoothly, so that the system pressure remained normal. Self-cleaning filter scraper blade rational layout, curettage angle optimization, slowing down the motor driven rotating blade gap to filter impurities in a timely manner scratch, eliminating the trouble unpick and wash filters to maintain smooth flow of filter material. Scraper system consists of set pieces, PTFE scraper brush cleaning and spring mix consisting of self-cleaning filter, spring pressure compensation option is reasonable, to minimize wear and tear on the filter.
FQ automatic self-cleaning filter design features
1 use of automatic on-line continuous filtration process automation to meet the operational requirements;
2 system uses the electric drive: Use reducer driven rotary scraper brush cleaning system, automatic removal of impurities on the filter attached to maintain the filter filtering function;
3 PLC control function: Pressure cleaning, regular cleaning, manual cleaning; And pressure priority, and can connect with the central control room;
4 The actual authentication, filtering, good special effects, filters made of stainless steel wedge-shaped filter, clean, easy to wear;
5 in many areas, instead of the traditional bag filter, blue filter, cartridge-type filters, vibrating screen filter, frame-type filters, belt filter, etc. FQ-ZQ series range of applications
6 industrial circulating water: Iron and steel industry blast furnaces / rolling / continuous casting machine circulating water, condensate water, cooling water
7 Raw Water Filter: Desalination of seawater, river water, surface water, into the water treatment plant
8 Environmental Engineering: Bag, cartridge, UF, RO equipment, pre-filtering film
9paper industry: Raw water, white water filters to protect the nozzle

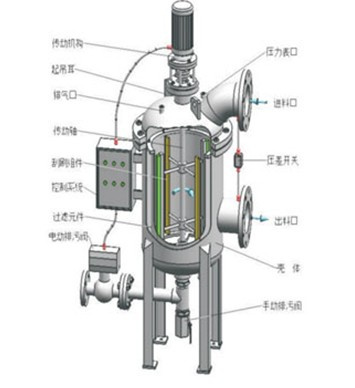

10 central air-conditioning system is determined by chemical industry, automobile manufacturing, etc. Filter FQ-ZQ size FQ-ZQ three-dimensional structure schematic diagram FQ-ZQ series range of applications
11 industrial circulating water: Iron and steel industry blast furnace, rolling mill, continuous casting machines and other circulating water, condensate water, 12 Raw Water Filter: Desalination of seawater, river water, surface water, into the water treatment plant
13 Environmental Engineering: Bag, cartridge, UF, RO equipment, pre-filtering film
14 Paper Industry: The original water, white water filters to protect the nozzle
15 central air-conditioning system, petrochemicals, automobile manufacturing, and other filters

Model	A mm	B mm	C mm	D mm	Outlet/inlet mm	Discharge dimension mm	Flow capacity m3/h
FQ-FC300	1690	265	640	300	DN50 or 80	DN50	50
FQ-FC350	1720	265	660	350	DN80   or 100	DN50	56
FQ-FC400	1760	265	680	400	DN100 or 150	DN50	100
FQ-FC500	1860	290	715	500	DN200	DN80	150
FQ-FC600	1930	290	755	600	DN250	DN80	250
FQ-FC700	2040	335	755	700	DN300	DN100	400
FQ-FC800	2105	335	770	800	DN350	DN100	500
