Product Specifications
Product Description

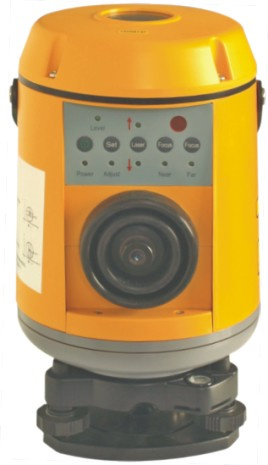

*Plumb laser FPE021adopts semiconductor diode with the wavelength of 635nm, with supreme visibility.
*Emitting a plumb laser-beam upward and a plumb laser-beam downwards simultaneously, which are concentric.
*Automatic self-leveling, operating easily, high accuracy and reliable
*Remote controlling
*With optic ocular, which can observe the measuring object directly.
Specifications
Telescope:
Magnification: 24 X
Clear objective aperture: Φ36mm
Minimum focus: 0.7m
Field of view (2ω): 1° 50"
Measuring accuracy (upward laser,
Standard deviation): ± 1mm/100m
Down point accuracy: ± 1mm/1.5m
Leveling accuracy: ± 1''
Leveling range: ± 2.5°
Available working distance: 150m
Light source (semi-conductor diode): Upward laser(wavelength): 635nm
Down point laser(wavelength): 650nm
Remote controlling distance: Approx. 30m
Working temperature: — 20º C--+50º C Power supply: DC 4.8V
Continuous working time: Approx. 8 hours
Dimension: 160(φ)× 275(h)mm
Weight: 4.3 Kg
Fukuda Laser Precision Instrument Co., Ltd., is a Chinese company, which specializes in designing, developing and manufacturing the instrument of laser-engineering. Our products are mainly applied in construction, indoor application as well as equipment-installing, The products of our company mainly include three series: Cross line laser, rotary laser and plumb laser, and all of them have great variation, good performance, reliable quality, so they will meet any requirements of customers with different professions.
Our company is based on the strong economy and good marketing strategies, meanwhile we possess solid technological power of our engineers, constantly produce new idea and new products.
