Product Specifications
| Prod Model: |
YT-6600/6800/61000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Ink Jet |
| Plate: |
Relief Printing |
| Embossing Structure: |
Rotary Letterpress |
| Color & Page: |
Multi-Colour Printing Press |
| Printing Interface: |
USB2.0 |
| Printing Speed: |
7.5CPI |
| System Supported: |
Windows2000 |
| Application: |
Non Woven Fabric Bag |
Product Description

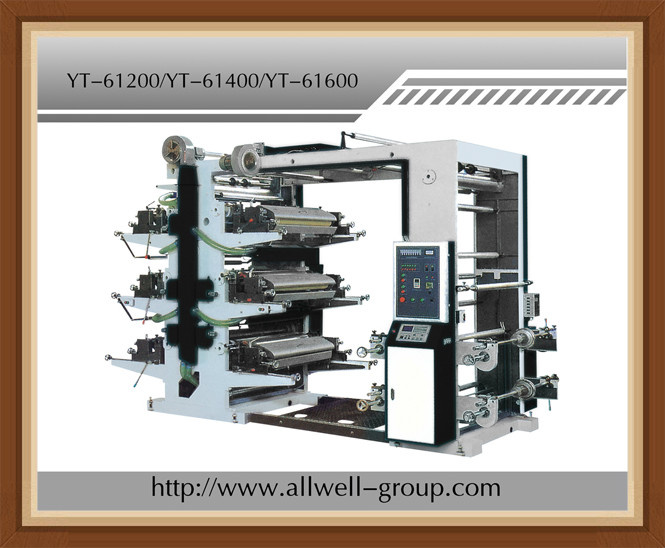

Automatic Six Color Flexographic Printing Machinery
Product Description
Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Features:
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360° Continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
9. Magnetic powder brake for unwinding tension control, magnetic powder clutch for rewinding tension control.
10. With double unwinding &rewinding shaft.
Delivery Detail: 15 days after the receipt of deposit
Our company & certification:
Wenzhou Allwell Machinery Share Co., Ltd. Established in 2013, we are sourcing from Wenzhou Ounuo Machinery Co., Ltd. Experiencing 3 years' s continued struggle, we collect all the knowledge and resource to service our customers with complete solution in Nonwoven fabric industry in our field.
We always carries a grateful heart to service each customer carefully. Creating value for customers is the only way to achieve self-worth. Accompany with All well, there will be more moving and less worries on your way to be rich.
After services:1. How long will your engineer reach our factory?
Within one week after machine arrival your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 50USD one day per person.
4. How long is your machine's warranty period?
All our machine have one year guarantee, starting from finished installation.
5. How could we do after one year warranty period?
We also can do service for you, but you need pay salary for my technician 80USD/day.
6. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
7. Does your engineer understand English?
Our engineers understand a little English. All of our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
8. Can you help us find any engineer in our location?
Of course, we will check and inform you as soon as possible.
More details of machine, please contact with us!
| Type | YT-6600 | YT-6800 | YT-61000 |
| Max. Effective Printing Width | 560mm | 760mm | 960mm |
| Max. Web Width | 600mm | 800mm | 1000mm |
| Max. Printing Speed | 50m/min | 50m/min | 50m/min |
| Max. Mechanical Speed | 60 m/min | 60 m/min | 60 m/min |
| Max. Diameter of Roll Material | 450mm | 450mm | 450mm |
| Internal Diameter of Roll Core | 76mm | 76mm | 76mm |
| Rang of Repeat Printing Length | 191-914mm | 191-914mm | 191-914mm |
| Accuracy of Registration | ± 0.5mm | ± 0.5mm | ± 0.5mm |
| Plate Thickness | 2.38mm | 2.38mm | 2.38mm |
| Heating Power | 9Kw | 13.5Kw | 18Kw |
| Total Power | 15Kw | 19.5Kw | 24Kw |
| Weight | 3500kg | 4200kg | 5000kg |
| Overall Dimension (L × W × H )mm | 4300× 1700× 2950 | 4300× 1900× 2950 | 4300× 2100× 2950 |
