Product Specifications
Product Description

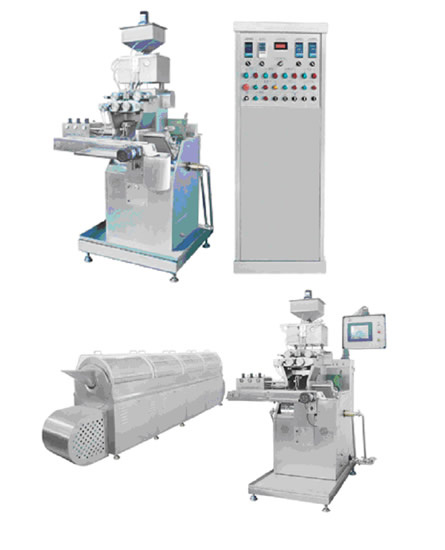

Automatic Soft Gelatin Encapsulation Machine (Water Cooling Type)
The water cooling type climinate the dust contamination caused by the air cooling.
Optimization design the roller die, increase the output of 30%-40% than the model RG2-152(6 inch roller dies)meanwhile enhance the utilization ratio of gelatin.
The gelatin conveyance of insulated gelatin storage tank adopt air pressure type through the ground, which improves the production environment.
The capsule conveyance belt adopt foot-grade conveyance belt(FDA approved)produced by USA which is non-toxic, non-sticky, and easy to wash.
The shape and drying rotary cage is made of stainless steel net sheet, which is no dead corners and easy to wash. An oil basin placed under the rotary cage to ensure there is no oil drops during the production.
All the electric parts adopt well-known brand in the world, the performances is stable.
The 10-station and 14-station injection rod equipped with the machine, it can use the width of roller dies while producing the small dosage products, enhances the utilization ratio of gelatin and output.
It is convenient and prompt that adjusting the clearance of two roller dies by air pressure.
The improved capsule-peeling unit minimizes the probability that the waste gelatin skin enwind onto the gelatin-peeling rod.
The S.S that contact with the medicine adopt superior S.S304#and316L# except the injector, the gelatin spreading box, roller die conveyance belt adop special material. It is conform to GMP standard completely.
Machine model RG2-180A
Roller die rated speed 0-5r/min
Roller die size 103x180mm
Single piston feeding volume 0-2ml
Power supply 380V 50Hz 1.5Kw 220V 1.935Kw
Noise index <75dBA
Overall dimensions 1100x1200x2150mm(A)1100x1450x2150mm(B)
Machine weight 980kg
Main technical parameter
Working length 870mm
Linear speed 4.8m/min
Power supply 220V 25W
Overall dimensions 950x360x200
1. GMP certified and Sino-Belgian joint venture, have two professional trade company dealing with export business.
2. Our company has the experience in manufacture and sales for more than 20 years, More than 30 personnel in Professional R& D team, and our product export to more than 40 countries.
3. Our company cooperates with 5 international brands and OEM/ODM available.
4. Our company participate the professional animal husbandry exhibition in the UAE, Netherlands, France, Russia and many other countries.
5. Cooperate friendly with Made-in-China more than 10 years.
We are specialized in exporting products such as Veterinary medicine, Veterinary instruments, Medical equipment, Pharmaceutical raw materias intermediates and chemical from China.
As sisters company and exporter of Nanjing Vetop Pharma Co., Ltd which is a sino-Belgian joint venture specialized in manufacture veterinary medicines in China, We distributes the products with a competitive price in more than 33 countries across Asia, Africa, Europe and America.
Nanjing Vetop Pharma Co., Ltd covers an area of 10181.4 square meters with construction area of 5573 square meters in the first phase.
The production scope includes terminally sterillized large volum parenteral, terminally sterillized small volum parenteral, oral solution and solid perparation ( tablets, powder, grannules, preximx etc. )
Sincerity, quality and efficiency are the principles of our company, and your quotation is welcomed. We are looking for start long-term and mutual benefits cooperation with you.
We have an excellent technical team, which can be designed according to customers requirements.
We have an excellent after-sales service team to solve after -sales problems for all.
