Automatic Soldering Machine Suitable to Solder Coils at Angle (SS-RT01)

Name: Automatic Soldering Machine Suitable to Solder Coils at Angle (SS-RT01)
Brand: china-manufacturer-directory.com
SKU: 608480654
Availability: InStock
Rating: 4.3 (117 reviews)

Supplier:	SanShine Electronics (Xiamen) Technology Co., Ltd.
Price:	Negotiable/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,EXW,others

Product Specifications

Prod Model:	SS-RT01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Tube Welders
Current:	Inverter Current

Product Description

Description :

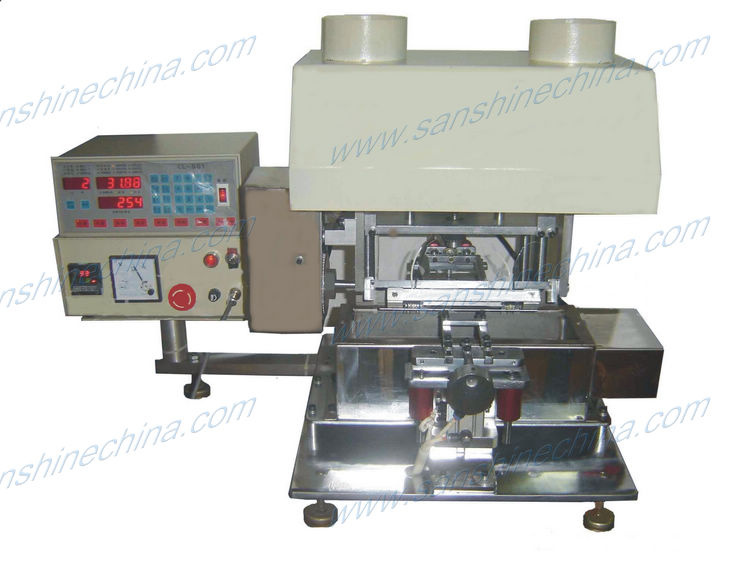

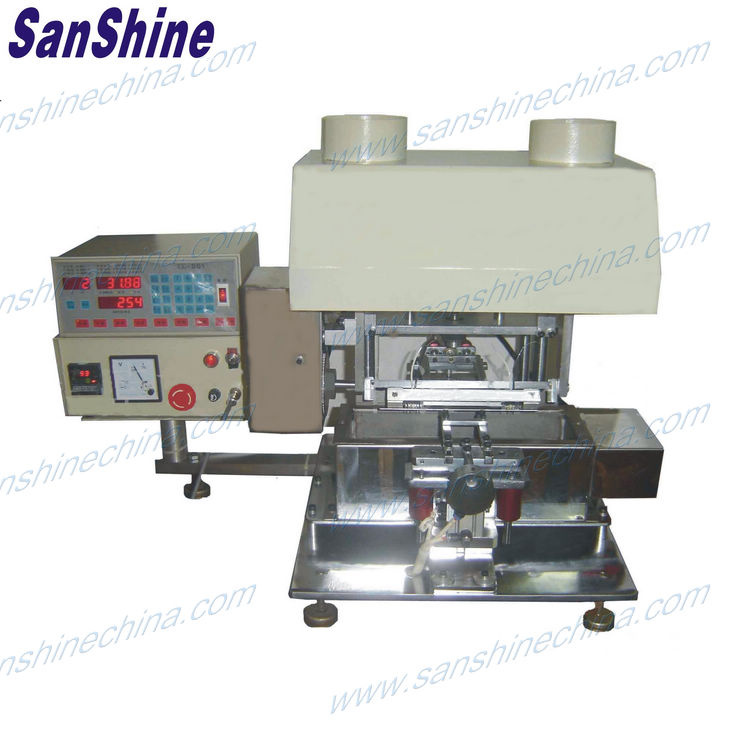

The SS-RT01 Multi-functional automatic soldering / tinning / dip machine adopts precise digital tinning controller and servo motors. It is best for soldering SMT components and Coils(SMT / SMD transformers inductors) which require soldering(tinning) at an angle like choke coils.
Feature :
1. Multi-function and multi-purpose automatic soldering machine
2. Most suitable for soldering SMD components or for coils which require soldering at an angle like chokes.
3. Tooling can turn 360 degrees to position coils for soldering at any precise angle.
4. Multiple coils can be soldered in one cycle.
5.99 steps program memory plus each program can assign 10 parameters independently.
6. The mode of each of the three sections is set by one program.
7. Each section can be provided with additional programming parameters, angle setting, dipping height, and pre heating time.
8. Compact & desk-mount design.
9. Process includes position to an angle, then DIP solder, then re-position to other side angle for soldering, and finally re-position to parallel for cleaning solder.
10. Titanium inner bath tank to withstand high temperatures and reduce oxidation.
11. Titanium DIP pot suitable for lead free solder.
12. Side inserted heaters enable easy maintenance.
13. Automatically clean the sediment before solder.

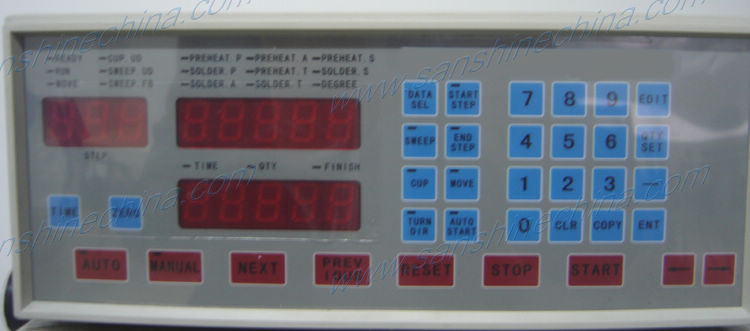

CNC controller of the SS-RT01 Multi-functional automatic soldering machine

Model	SS-RT01

Power source	AC 220 / 110 V ; 50/60 Hz

Power consuming	2KW

Air source	5kg /c m²

Traverse	MAX 76 mm (stepping motor)

Inner bath material	Lead free titanium

Inner bath Dimension	L300 W100 H 60 mm

Dimension	L600 W600 H 750 mm

Weight	40 Kgs
