Product Specifications
| Prod Model: |
S-P-L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Customized |
| Painting Type: |
Manual, Automatic, Semi-Auto |
| Company Type: |
Manufacturer |
| . Heating Type: |
Electricity, Diesel Engine, Gas |
| Type: |
Coating Production Line |
| Coating: |
Painting |
| Substrate: |
Steel |
Product Description

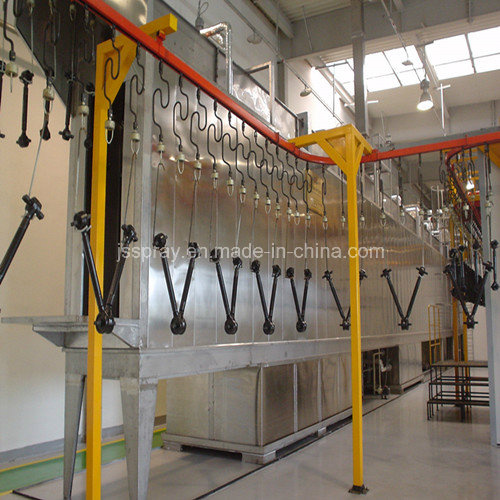

Automatic powder coating line for hardware
we are the manufacture of coating and painting machine
pre-treatment equipment
Drying oven
automatic spraying and reciprocating engine
paint spray booth
powder recovery
complete painting line:
Pre-treatment system : Automatical Spraying pre-treatment and dipping pre-treatment are available;
Drying oven : Drying oven which drying the water after pre-treatment is designed according to custmoer actual conditions.
Powder coating spray system: Auotmatic spray reciprocator , Maunal spray equipment and Semi-auto (Auto-spraying with manual reparing spraying) are for your choice;
Powder recycling system: Cyclone equipment and cartritdge filters is customized and introduced according to actual requirement by customer;
Curing oven : Tunnel curing oven, bridge type curing oven, Electric power heating curing oven, Gas-heating curing oven, Diesel heating curing oven ,High temperature ,lower temperature curing oven is available for fitting your sole factory.
Conveying system: Various design according to different requirement by customer on the basis of customers' workpiece and output information.
Processing
No. | Working procedure | time | Medium any style | processing temperature |
|
Upper workpiece | 3 min | Manual operation | RT |
|
Pre
treatment | Degrease phosphorus | 120sec | Two-in-one chemical | 50±5ºC |
| Degrease phosphorus | 120sec | Two-in-one chemical | 50±5ºC |
| Water-wash | 30sec | running water | 55ºC |
| Water-wash | 30sec | running water | 60ºC |
| Ideal water washing | 30sec | Ideal water | 70ºC |
| Blowing water | 60sec | compressed air | RT |
|
Moisture drying | 10min | Heated-air recirculation | 75ºC |
|
Cooling-down | 12min | Naturally cooling-down | RT |
|
Spraying | 3min | Manual and automatic spraying &painting | Winter:18-22ºC
Summer:nature |
|
Drying&Solidifying | 30min | Heated-air recirculation | 75ºC |
|
Cooling-down | 10min | Naturally cooling-down | RT |
|
Lower-piece | 3min | Manual operation | RT |
If you want to custom made any powder coating line, pls tell us the following specifications:
1. Workpieces Max weight and Max size (length ,width and high) and picture.
2. If have any requirements about the suspension of the workpiece
3. The material of the workpiece
4. The anticipative output for the biggest size of the workpiece(how many pcs in 8 hours)
5. The length, width and height of the factory available for the coating line
6. The heating power: Liquefied Petroleum Gas, Liquefied natural gas, Diesel, Electric, Coal or Biomass particles.
7. If need to change colors in one day? How many colors do you have?
8. Need automatic paint or manual paint
9. If need pretreatment process? If need, want spray pretreatment, bath pretreatment or shot/sand blasting ?
10. The local electricity conditions(V/PHASE/HZ)
Yangzhou Spray Machinery Co., Ltd. is Established in 2001, is a specialized manufacturer of auto maintenance and coating equipment. Specifically, our main products are spray booths, coating production lines, cable lugs which are CE, ISO9001 and ISO14001 certified.
Adopting advanced German technology, we are able to supply electric-controlled doors for environmental paint-baking room, steel grid plates, high-voltage resistant welding and aluminum alloy wrapped corners, which are selling well in the American, German and South African markets. Moreover, we also provide special design plans and identity service of paint-spraying and grinding for bus manufacturers and specially-designated vehicle manufacturers.
We have 300 skilled staff, 54 of whom are technical engineers. Contact us now, and put our engineers on work for you.
Our project team has the well-trained engineers, technicians and experts. Those persons joined many kinds of trainings plan, design and fabricate for the advanced equipment and the environmental protection engineering of the whole. They instruct the installation and shakedown of the overall process unit, offer training and satisfy the users special demand and maintenance service.
