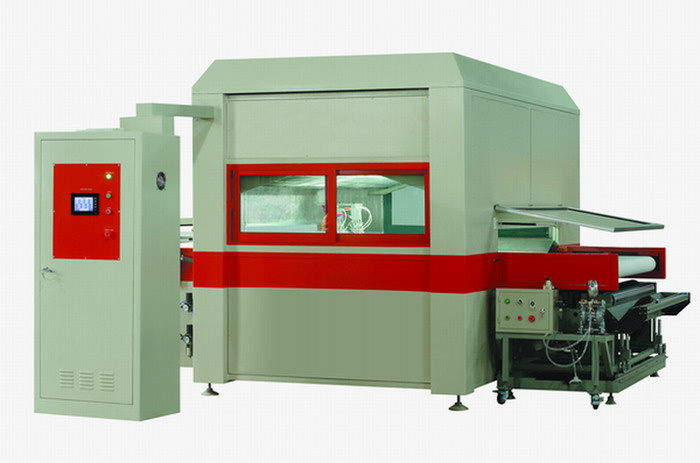

Automatic Spraying Machine(SPM1300)

Automatic Spraying Machine(SPM1300)
Supplier: Qingdao Woodworking Machinery Co., Ltd.
Price: Negotiable
Min Order: 1
Quantity::
contact supplier

Product Specifications

Prod Model: SPM1300

Product Description

SPM series, Automatic Spraying Machine is designed by international latest advanced technology. It is a special machine for spraying slab furniture and decorative material. It is high automated, efficiency and practicability. It also can make the spraying surface even and the thickness of lacquer film be controlled accurately. This machine is suitable for UV, PU, PE, NC, etc. It has UV lacquer reclaiming equipment to reduce waste.

The close spraying room and the filtration system of air entering & discharge avoid the entering of dust & impurity, which makes the spraying quality high and protects the environment. With PLC control system to realize automatic spraying, with excellent spraying gun and pump to make the lacquer capacity controlled accurately and get better atomization effect, It can be used alone and also can be equipped with Dust Cleaner, Heating Tunnel, UV Dryer, Drier and so on to form a Automatic Spraying Line. This machine can be long-distance inspected and supervised by Internet.

Technical parameter
Model: SPM900 SPM1300
Max. Spraying width: 850mm 1300mm
Max. Thickness of workpeice: 125mm 125mm
Max. Feeding speed: 15m/min 15m/min
Brush speed: 70 r/min 80 r/min
Spraying gun: 8pcs 8pcs
Air pressure: 0.05Mpa to 0.08 Mpa 0.05Mpa to 0.08 Mpa
Lacquer supply capacity: 5L/min 5L/min
Total power: 3kw 3kw
Figure dimension: 4000*1546*2035mm 4000*2560*2315mm
Weight: 950kg 1300kg
As a professional woodworking machinery manufacturer in China, we supply the first-class products and services to customers. Our leading products include Membrane Press, Profile Wrapping Machine, Automatic Spraying Machine, Roller Painting Machine, UV Dryer, Heating Tunnel, Film Slitting Machine, Spray Booth and so on. We also can provide all kinds of woodworking machinery such as Router, Spindle Moulder, Surface Planer, Thicknesser, Band saw with best quality at the competitive prices.
