Product Specifications
| Prod Model: |
DZL-2D TYPE |
| Markets: |
North America,South America,Southeast Asia |
| Weight: |
About 1.5t |
| Main Motor Type And Power: |
Aeef 112m 5HP(3.7kw) |
| Power: |
3 Phase 380V |
| Welding: |
Machine |
| Certification: |
ISO |
| Automatic Grade: |
Semiautomatic |
| Condition: |
New |
| Customized: |
Non-Customized |
Product Description
Products Info

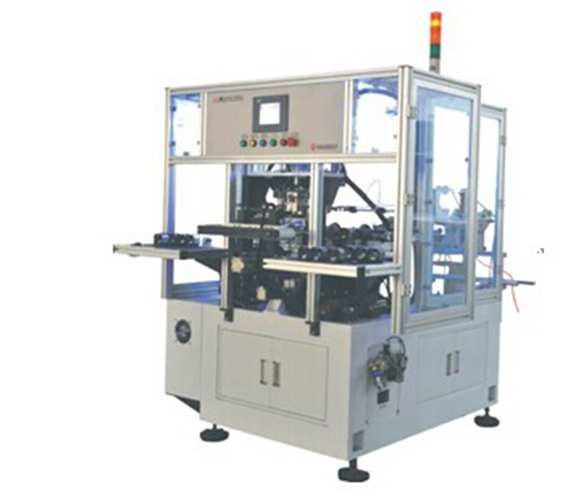

DZL-2D stator winding machine is used for two-pole stator winding. There are several improvements of this machine: Two stators can be finished every cycle time, which improves the productivity greatly; With auto assembling and disassembling tooling, it can reduce labor intensity; And during winding, the machine has the function of tapping (5 times) and wire cutting. The travel of fork rod and tilt angle can be adjusted within a certain sphere. All aluminum alloys with anodic oxidation treatment and imported acrylic shield are available. PLC and display screen and transducer are for main control; It is safe and reliable to set and show the parameters.
Function and Features
1. The machine frame is made of iron cast with stable precision and shock absorbency.
2. Automatically assemble and disassemble tooling; During winding, it can carry out tapping five times.
3. Travel, tilt angle can be adjusted (by mechanical system).
4. It is easy to set parameters, and failure alarm function is available.
Technical Parameter
1. Weight: About 1.5T
2. Main motor type and power: AEEF 112M 5HP(3.7KW)
3. Power: 3 phase 380V
4. Travel range: 135-185 adjustable
5. Rotation range: 0-500R/M adjustable
6. Lubrication: Continuously lubricating with oil injection
7. Compressed air pressure: 0.5-0.7MPa
8. Applicable wire diameter: φ 0.17— φ 1.0
9. Applicable poles: 2
10. Applicable lamination thickness: 20-60
11. Internal diameter of stator: φ 32— φ 60
12. External diameter of stator: φ 40— φ 100
| Applicable poles | Travel range |
| 2 | 135-185 adjustable |
